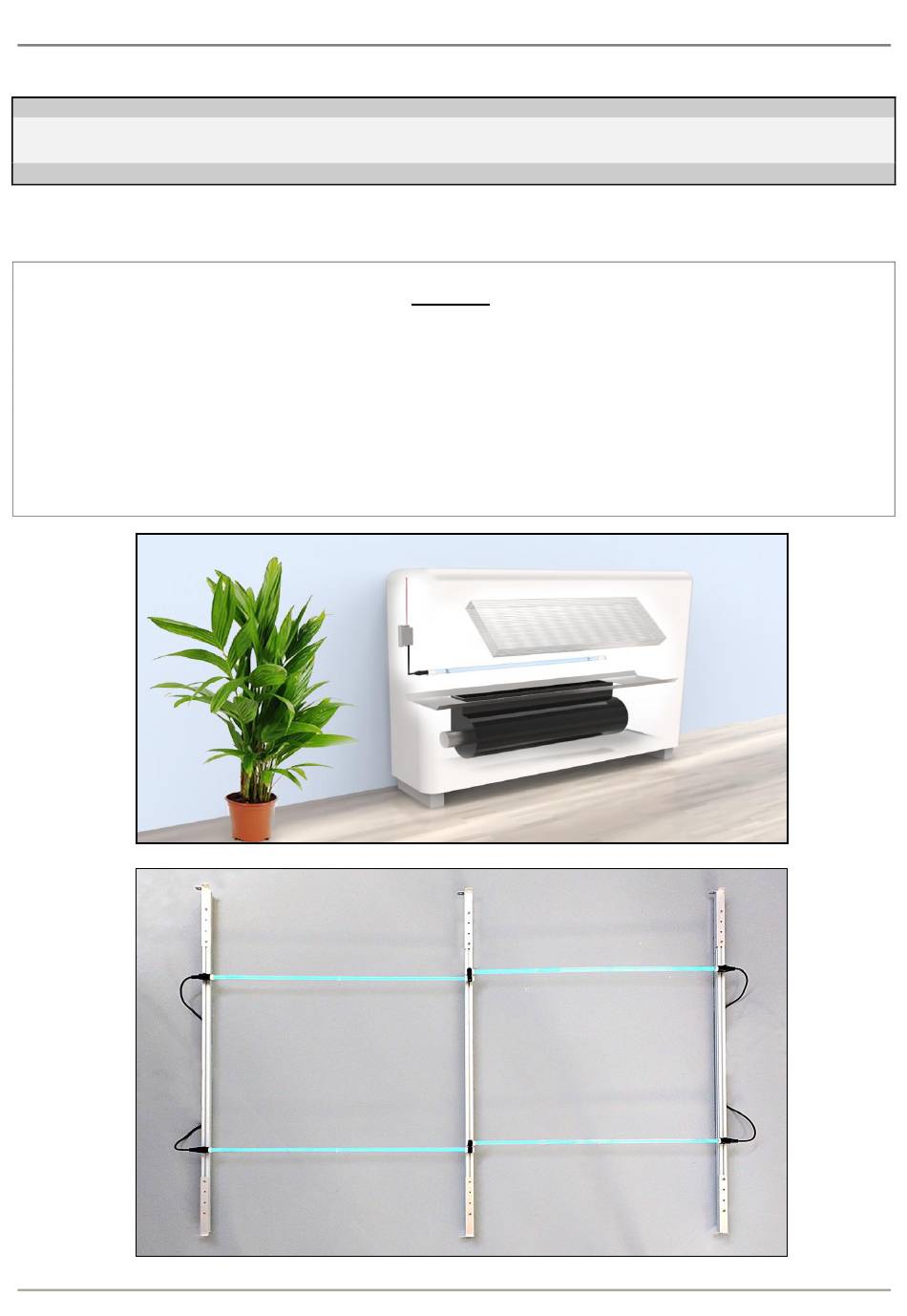

- Page 1 LIGHT PROGRESS FCU-CL [eng] INSTRUCTIONS UV-FCU-CL UV-C Germicidal KIT for FAN-COIL or for the Air Handling Units (A.H.U.) MODELS: UV-FCU-CL 16-P UV-FCU-CL 25-P UV-FCU-CL 40H-P UV-FCU-CL 60H-P UV-FCU-CL 90H-P UV-FCU-CL 120H-P UV-FCU-CL 75-P UV-FCU-CL 150H-P mag-2020 Pag. 1/20...
-
Page 2: Security Warnings
LIGHT PROGRESS FCU-CL [eng] SECURITY WARNINGS The Company has ensured that every care is taken in the design and production of its machinery. In order to guar- antee, as far as possible, that it is safe when used correctly. However, the laws on accident prevention require all users of the machinery to ensure that whoever is responsible for installation, maintenance, use and sale of these products is shown the instruction provided by our company and is made aware of the precautions to be taken. -
Page 3: Storage Of This Manual
This instruction manual must be preserved and be ever at disposal to consultation; it must follow the device in case of passage of property, and accompany the device until its demolition. It’s possible to contact Light Progress’ technical office to ask for updated instruction manuals and information. -
Page 4: Device Description
DEVICE DESCRIPTION UV-FCU-CL series consists of a kit including a UV-C germicidal lamp of reduced size complete with power supplies and fixing accessories such as clips and other, ready to be installed inside fan coils or in centralized air conditioning systems (AHU - Air Treatment Unit), with the aim of eliminating the microbial load (bacteria and mold) from the thermal batteries (Coils). - Page 5 LIGHT PROGRESS FCU-CL [eng] APPLICATIONS AND RESULTS Air Sanitization in FANCOIL UNITS This system for air disinfection treats also the internal section of the fan coil, such as thermal battery and the conden- sation water that is formed. Air and water vehicle often various specific pathologies.
- Page 6 LIGHT PROGRESS FCU-CL [eng] fined inside the AHU ducts, allowing significant savings in operating costs and safeguarding people health from infec- tious diseases such as: 1) Sick Building Syndrome, characterized by disturbances in the eyes and upper respiratory tracts (hyperactivity of these mucous membranes) as well as nervous disorders (numbness, headache).
-
Page 7: Device Codes
LIGHT PROGRESS FCU-CL [eng] BENEFITS AND ADVANTAGES a) BETTER CLEANING OF BATTERIES AND FILTERS UVGI rays prevent mold growth and growth of bacterial colonies which obstruct the thermal batteries fins, impairing its proper functioning. b) REDUCTION OF LOSSES AND SIGNIFICANT ENERGY SAVINGS... -
Page 8: Installation
LIGHT PROGRESS FCU-CL [eng] INSTALLATION Installation in FANCOIL UNITS To install it you need to fix supplied clips using self tapping screws. The perfect spot to apply UV-FCU-CL is the space between fan and heat/cooling battery. The installation is easy, you can also apply it on fan already installed and work- ing (technology retrofit on existing systems). - Page 9 LIGHT PROGRESS FCU-CL [eng] Installation in Air Handling Unit (AHU) Mounting kit to apply UV-FCU devices inside the A.H.U., includes of the following items: UpR-AL-50 50 cm Length (weight 310g) SB-AL UpR-AL-80 80 cm Length (weight 500g) foot for vertical upright...
- Page 10 LIGHT PROGRESS FCU-CL [eng] Application examples according to the size of AHUs. The lamps must be evenly distributed, with the division of the spaces as examples: Application of the power supply box (... B) on the upright mag-2020 Pag. 10/20...
- Page 11 LIGHT PROGRESS FCU-CL [eng] INSTALLATION PHASES It is advisable to assemble the Kit inside the AHU, in front of the heat exchanger (COIL). Remove all components from the box, checking their integrity. Follow the steps following the images below. These are the operations needed to as- semble: 1) According to the type of arrangement chosen, and just if needed, cut the vertical uprights (UpR-AL ..) to a length...
- Page 12 LIGHT PROGRESS FCU-CL [eng] 5) Fix the lamps on the clips on the vertical uprights (handle the lamp with care using light cotton gloves). Connect each quadripin power cable with each lamp. Please pay attention to the exact position of the each pin, do not force this connection.
-
Page 13: Electrical Connections
LIGHT PROGRESS FCU-CL [eng] ELECTRICAL CONNECTIONS We suggest to entrust a qualified electrician to install this device, following these instructions and the electrical scheme, and following the CEI norms. Before connecting the device to the electrical line, make sure that the labelled data on the device are the same as the ones of the electrical line;... - Page 14 LIGHT PROGRESS FCU-CL [eng] 3) …EBa => Version with FREE "open frame" power supply with dry contact (NO and NC) for lamp ON signal (UV-FCU-CL …-EBa series). Use 3-wire switching as a remote alarm. 4) …B => Version with power supply in waterproof box (IP55) without any indication of lamp on (UV-FCU-CL …-B series).
- Page 15 LIGHT PROGRESS FCU-CL [eng] WARNING !!! This device works with direct irradiation, for this reason it should be turned on only in the absence of people as it can cause eyes and skin irritation. In order to prevent accidental exposure to UV rays you should provide an automatic shutdown system at any time when doors are opened and allow contact sight of UV lamps.
-
Page 16: Maintenance
LIGHT PROGRESS FCU-CL [eng] SCHEDULING Cabling has to be performed in a way so, when air of the Fancoil is circulating (fan is on) the UV lamp has to be pow- ered; in this way the passing air and the coil/filter being irradiated. Remember not to expose people to UV-C rays irra- diation. - Page 17 LIGHT PROGRESS FCU-CL [eng] TECHNICAL FEATURES TABLE n°1 UV-FCU-CL 16-P 25-P 40H-P 60H-P ≤ 18.000 ≤ 18.000 ≤ 18.000 ≤ 18.000 AVERAGE LIFETIME LAMP (hours)* CONSUMPTION (W) LAMP LENGTH (mm.) distance between DISTANCE BETWEEN CLIPS (mm.) 0,20 0,30 0,70 0,30 WEIGTH (Kg.)
-
Page 18: Warranty
Once you receive the module, it has to be filled up in every part and sent via email to info@lightprogress.it or via fax to +39.0575 789929 to obtain the RMA number that will authorize the shipments of the goods to Light Progress ware- house. -
Page 19: Declaration Of Compliance
LIGHT PROGRESS FCU-CL [eng] DECLARATION OF COMPLIANCE We, LIGHT PROGRESS S.r.l., hereby declare under our own responsibility that the following units of own production: UV-FCU-CL series are in accordance with EEC directive 2014/30/EU (Electromagnetic Compatibility) are in accordance with EEC Machinery Directive dispositions 2006/42/EU are in accordance with EEC Low Voltage Directive 2014/35/EU... - Page 20 LIGHT PROGRESS FCU-CL [eng] Loc. San Lorenzo, 40 - 52031 ANGHIARI (AR) - ITALIA TEL. 0575 / 74.92.55 - FAX 0575 / 78.99.29 PRODUZIONE: • ANGHIARI - Loc. San Lorenzo, 40 • CASTIGLION F.NO - Loc. S. Antonino, 40 : www.lightprogress.it Http info@lightprogress.it...
