X-Axis Belts

The gMax 2 Pro was designed so the x-axis belt will remain in-place even if you swap extruders. A metal
plate is bolted to the x-axis linear block and the belts are attached to either end. You do not need to
remove the extruder to replace or tighten the belts.
If you need to tighten or replace a belt, follow these steps.

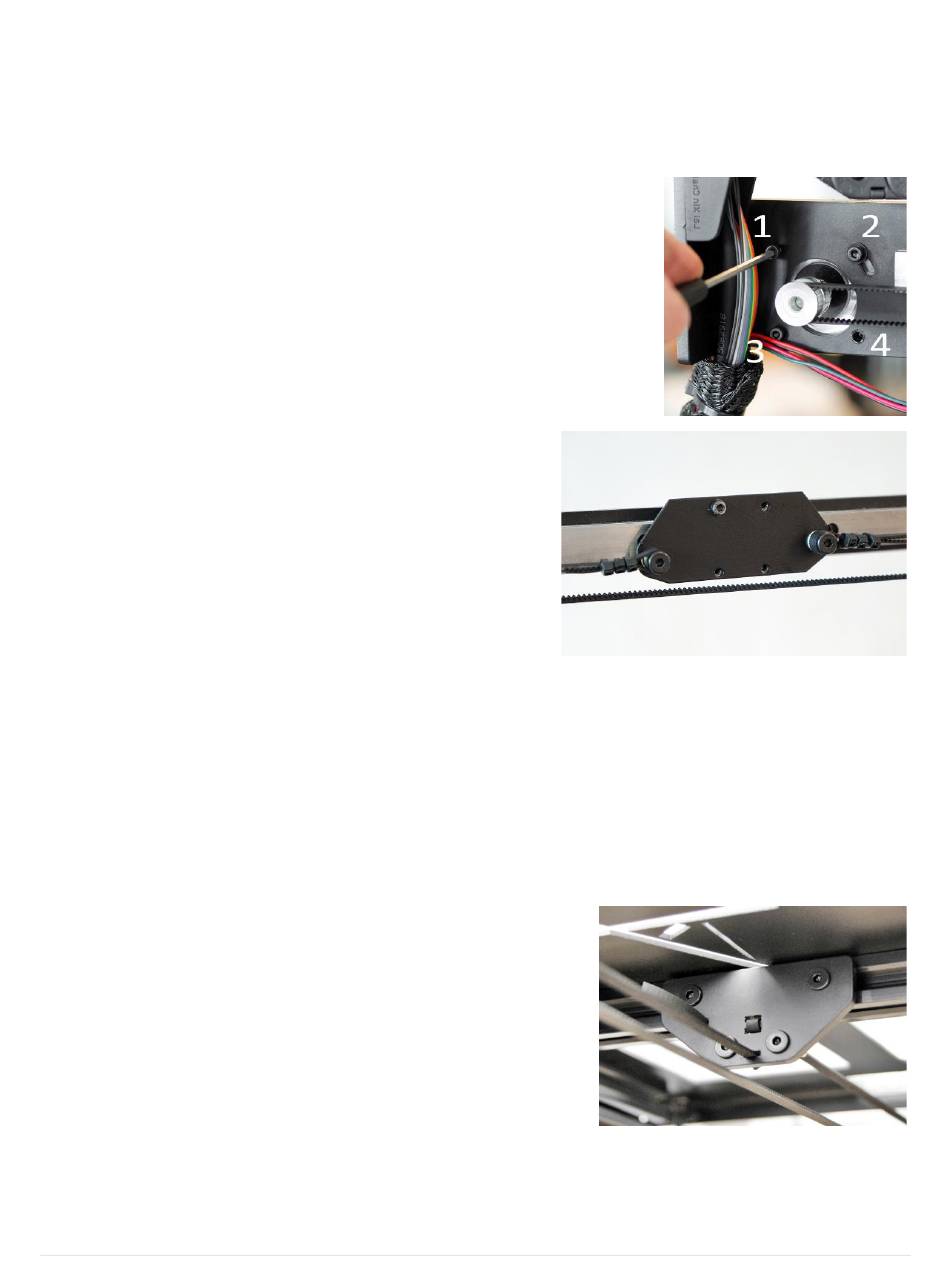

1. On the x-axis motor, remove two of the bolts (#1 and #4).
2. Loosen the other two bolts (#2 and #3). This will allow the motor
to swing down and loosen the belt.
3. If you're installing a new belt, connect it to the right side of the
extruder plate with cable ties, then loop it around the right-side
pulley, around the motor on the left side and
connect it to the left side of the belt plate. The belt
should be tight enough that it's not sagging.
4. Once everything is connected rotate the x-axis
motor back up to tension the belt and reinstall the
bolts.

Y-Axis Belt

The y-axis belt clamp is secured underneath the bed frame. We must access the bottom of the printer to
adjust the belt tension. To do this turn the printer on its back. You will find it useful to use a box to rest
the printer frame on. A filament box is the perfect size. As you lift, the bed will want to roll backwards.
Be sure to hold it while turning the printer on its back
1. With access to the bottom of the printer, loosen the aluminum bracket from the aluminum
extrusion. So it has a few millimeters of wiggle room.
2. Loosen the double t-nut that is pressed against the belt
on the back of the plate.
3. Insert the new belt or tighten the belt by a tooth or two
if you are just tightening the belt.
4. Then tighten down on the double t nut to clamp the belt
in place. The belt should not be tight at this point
because the aluminum bracket is loose.
5. Tighten the aluminum bracket back down. Tightening down on the aluminum bracket will pull
the belt tight.
