Visonic MCS-730 Quick Start Manual

MCS-730/MCS-730 AC
Fully / Mains Powered Wireless Outdoor Siren

1. INTRODUCTION

The MCS-730, powered by 1 or 2 (optional) non-rechargeable batteries,
is fully wireless outdoor siren, designed for installation in areas in which
wiring action is difficult or impossible. It is compatible with control panels
such as PowerMax Pro, PowerMaxComplete, PowerMaxExpress or
Visonic newer panels (not compatible with PowerMax+ and PowerMax
control panel).
The MCS-730 AC is similar to MCS-730 but It is powered by an External
9VAC Adaptor and non-rechargeable backup battery - enables very
long operation time without replacing the battery. The MCS-730 AC
complies with PowerMax+ also.

Features

• Siren and strobe light activation: The siren produces a strong
alarm noise and emits flashing light to deter intruders and guide
police to the site.
Notes:
The duration of the siren's alarm is controlled from the control panel
by setting the "Bell Time" option (refer to alarm system installer
guide, par. 4.4) and should be set according to local authorities
requirements.
The strobe light operates (every 1 second) for 20 minutes after
siren stops or until the system is disarmed, whichever occurs first.
• 2 Types of alarm indication
The siren produces different alarm signals for Burglar and Fire.
• Squawk indication: Squawk (beep) sounds can be used to
indicate alarm system arming (1 squawk) and disarming (2
squawks) by a keyfob (squawk can be enabled from the control
panel User menu).
• Tamper / supervision failure indication: Siren is equipped with
tamper protection, which produces alarm if a burglar attempt to
open the siren's cover or remove siren from wall.
• Low battery voltage alert
The siren reports a low battery message to the alarm system when
battery is about to drain. After low voltage is reported, at least 2
siren alarms are possible before the siren is totally inactive.
• Strobe Light Color: The siren can be purchased with red, blue,
amber or transparent lens, according to the desired strobe light color.
• Siren activity LED: A flashing LED (optional, at the bottom of the
siren front panel) indicates siren activity (can be disabled by an
internal jumper, see fig. 3, step 8)

2. SPECIFICATIONS

Siren Type: One Piezo 109 db. Sound Pressure Level @ 1m, 1.8-3.5
kHz, sweep frequency 7 Hz. Additional piezo is optional.
AC Power Supply Adaptor (MCS-730 AC only):
120 VAC, 60 Hz / 9 VAC, 0.35 A min. (in the U.S.A.)
230 VAC, 50 Hz / 9 VAC, 0.35 A min.
Battery: 3.6V/14.5A/H Lithium battery (EVE ER34615M/w200),
Visonic assembly cat. No. 0-9912-K.
Caution! Risk of explosion if battery is replaced by an incorrect type.
Dispose of used battery according to the manufacturer's instructions.
Battery Life Time: 3 years (taking into consideration a typical alarm
of 4 minutes Piezo + strobe operation per week).
Current Consumption : Standby - 250µA average, Operation -
300mA average.
Compliance with Standards: EN 50131-1 Grade 2 Class 4,
EN50131-4, EN301489, EN50130-4, EN50130-5, ETSI EN 300 220,
IP55, CFR47 part 15. Designed to comply with Belgium / TO14,
Sweden / SSF1014.
Operating Frequency (MHz): 315, 433.92, 868.95
Supervision Time: 5 minutes
Strobe Light: Pulsed @ 1 sec.
Dimensions (LxWxD): 295x186x63mm (11-5/8 x 7-5/16 x 2-1/2 in)
Color: White (with red, blue, amber or transparent lens)
Operating Temperature: -33 ° C to 70 ° C (-27.4 ° F to 158 ° F), RH
humidity 75%.
Weight (including battery): 970g (34 oz)
D-301680
Installation Instructions

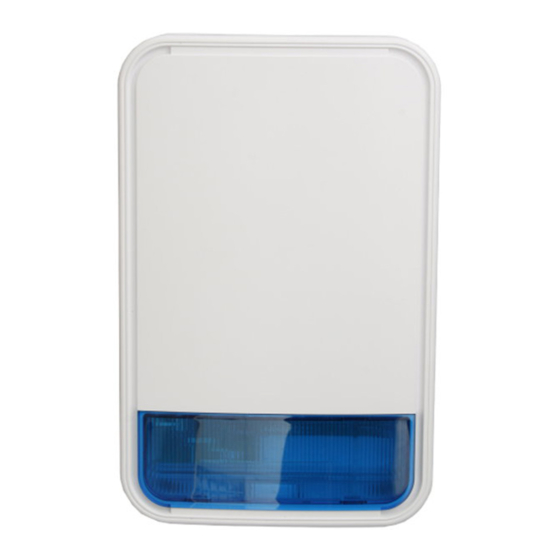

Fig. 1a - External View
IMPORTANT! The MCS-730/MCS-730 AC siren must be installed
on the wall in a vertical position with the screw pointing to the floor
only, as illustrated in Figure 1b.
positioning of the MCS-730/MCS-730 AC is to enable the siren to
function as a waterproof device.
• 2-way full supervision
The siren is fully supervised, 2-way communication device. It
periodically transmits its status signal to the alarm system.
• Installation diagnostics
The transmitted signal strength can be measured during the
installation (refer to the alarm system Installer guide, par. 5.2 –
Diagnostic Test).
• Self-test function
Upon pressing the self test switch, siren functional check is performed -
low level sounds and flash light indicate that the siren is serviceable.
Remote commander
Door or window
open/close detector
Wireless transmitter
Smoke detector
Motion detector
Hard wired detector
Figure 2- Typical Integration with the Alarm System
Note: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user's authority to operate the
equipment.
Interference Prevention
This device complies with FCC Rules Part 15. Operation is subject to two
conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference that may be received or that may cause
undesired operation.
The digital circuit of this device has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
residential installations. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio and television reception.
However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause such interference, which can be verified by
turning the device off and on, the user is encouraged to eliminate the interference
by one or more of the following measures:
– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the one which
supplies power to the receiver.
– Consult the dealer or an experienced radio/TV technician.
Changes or modifications not expressly approved by Visonic Ltd. could void
the user's authority to operate the equipment.
Fig. 1b – Mounting Position
The importance of correct
MCS-730 /
MCS-730 AC
PowerMax+ /
PowerMax Pro /
PowerMaxComplete /
PowerMaxExpress
1
