Use and Configuration Manual
TAB
7559

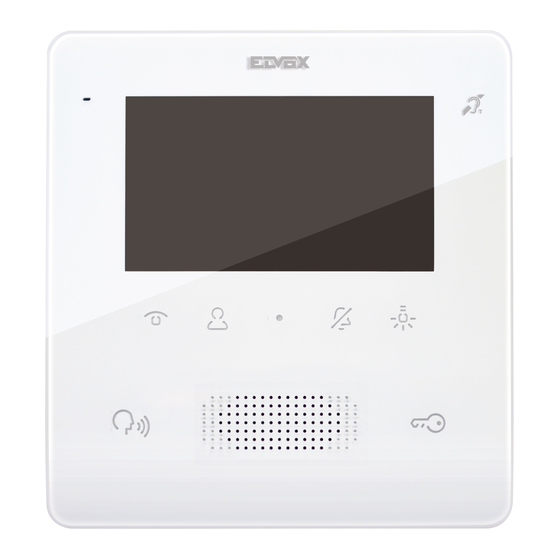

TAB 4.3 Due Fili Plus hands-free video entryphone

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELVOX 7559 and is the answer not in the manual?

Questions and answers

António mordomo
May 29, 2025

Como abro a porta na betoneira,?

0

Related Manuals for Vimar ELVOX 7559

Summary of Contents for Vimar ELVOX 7559

  • Page 1 Use and Configuration Manual 7559 TAB 4.3 Due Fili Plus hands-free video entryphone...
  • Page 2 7559 Tab 4.3...
  • Page 3 7559 Tab 4.3 Index General information Description Warnings and advice Keys and status LEDs Status LED Operation Actuations menu Intercom menu First power up Functions Answering a call from an Outdoor Station Answering a call from an Indoor Station or Reception switchboard Audio/video settings Volume adjustment Image brightness control...

  • Page 4: General Information

    7559 Tab 4.3 General information Description Surface mounting Tab series hands-free video entryphone for Due Fili Plus system with 4.3" LCD colour display, loudspeaker for calls, capacitive keypad for entryphone functions (unlocking, self-starting, auxiliary services, volume, brightness and contrast controls) and intercom calls. Can be used by hearing aid wearers.
  • Page 5 7559 Tab 4.3 Keys and status LEDs The TAB 7559 video entryphone be operated using the touch keys described below. 4.3” LCD 16:9 display, resolution 480x272 pixels Programmable key T1: Self-start, it activates the main Outdoor Station Programmable key T2: It activates the second relay of the Due Fili Plus system (Aux 2) or, in certain conditions, it opens the Intercoms menu (see Operation) It opens the User configuration...

  • Page 6: Status Led

    7559 Tab 4.3 Status LED Some of the LEDs illustrated below only come on in certain conditions. DESCRIPTION When lit, it indicates that there was a missed call from the switchboard. The missed called indicator can be reset by pressing the related key for more than 2 sec. When lit, it indicates the door open status Flashing: user away (the Indoor Station rejects the call from an Outdoor Station and consequently the call is unsuccessful).

  • Page 7: Operation

    7559 Tab 4.3 Operation The TAB 7559 Video Entryphone is designed to receive calls from Outdoor Stations, to make intercom calls with Outdoor Stations, Indoor Stations and Reception Switchboard, to make audio/video settings as well as to activate the Alert and Professional Firm functions Calls can be answered using the Communication key or by opening the lock on the Outdoor Station using the Lock key.

  • Page 8: Intercom Menu

    7559 Tab 4.3 Intercom menu If the installer has programmed at least keys in the Actuations section (see Installer configuration or using the SaveProg software), if you press the key, the related menu is displayed, where you can select up to 4 intercom functions, including: •...

  • Page 9: First Power Up

    7559 Tab 4.3 First power up Perform the device installation (according to the assembly instructions and the installation instructions provided in the printed instruction sheet supplied) and power it. Caution: installation must be carried out by qualified persons in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed;...
  • Page 10 7559 Tab 4.3 Press to select the main type The Indoor Station starts communicating with the Outdoor Station Press the key on the Master Outdoor Station you wish to receive the call from N.B.: this procedure applies for entrance panels with push buttons and may vary according to the Outdoor Station used. For Outdoor Stations with a keypad and display, type in the ID code and confirm with the call key.
  • Page 11 7559 Tab 4.3 After a few seconds, the identification of the Video entryphone appears on the display (A) N.B.: in the case of a secondary Indoor Station, the ID is not that selected, but one is assigned, by means of a certain algorithm, among the three possible IDs deduced from the main one Press the corresponding key on the Outdoor Station to send the call to the Indoor Station.
  • Page 12 7559 Tab 4.3 Functions The video door entry functions illustrated in the following paragraphs refer to audio/video calls from Outdoor Stations. With audio-only Outdoor stations, the display will be black, and when accessing the controls menu, only the audio controls will be available. Answering a call from an Outdoor Station N.B.: before connecting the audio channels with any other device, the Indoor Station determines the best possible communication parameters.
  • Page 13 7559 Tab 4.3 The lit communication key and the active microphone (A) indicate that communication with the Outdoor Station is active. In addition to communicating, actuations can be activated and/or can be made audio/video settings Press to release the lock on the Outdoor Station connected Press to activate an actuation among those programmed...
  • Page 14 7559 Tab 4.3 Press to end communication...
  • Page 15 7559 Tab 4.3 Answering a call from an Indoor Station or Reception switchboard Following a call from an Indoor Station, the display shows the indication (A). If the calling Indoor Station is in the list of Intercom menu, its identification number is also displayed. N.B.: for intercom calls, the ringtone can only be muted when the call is in progress and not before N.B.: before connecting the audio channels with any other device, the Indoor Station determines the best possible communication parameters.
  • Page 16 7559 Tab 4.3 If there is no answer to one or more calls from the Reception switchboard, the LED remains permanently lit until stand-by (if the function was enabled from SaveProg). The LED stops flashing after the Indoor Station has answered and returned to stand-by or: –...

  • Page 17: Audio/Video Settings

    7559 Tab 4.3 Audio/video settings During an audio/video communication with Outdoor Stations or Indoor Stations, a series of settings can be made, including: adjusting the audio volume, the brightness of the image recorded and zooming. During a communication, press to adjust the audio/video settings Volume adjustment Press to raise the audio level and...
  • Page 18 7559 Tab 4.3 Image brightness control Press to increase the image brightness and to reduce it. The level set is displayed in the indicator (B) Press to complete the adjustments and return to the previous screen Pan/Zoom adjustment In the event that the TAB 7559 Video entryphone is paired with a Pixel Outdoor Station with appropriate characteristics (Art.
  • Page 19 7559 Tab 4.3 The device performs a zoom divided up into 5 zones Press to display the zones in sequence anti-clockwise Press to display the zones in sequence clockwise...
  • Page 20 7559 Tab 4.3 In both cases, once the sequence is finished, press the key again to return to the normal display. Press to exit the settings menu...
  • Page 21 7559 Tab 4.3 Self-start (Calling an Outdoor Station) Press to perform the self-start of the Outdoor Station The video entryphone shows the image filmed, the audio is active (audio monitoring) but the microphone is muted as shown by the related icon (A). You can now: Press the key for activating audio and communicating with the Outdoor Station Press the...
  • Page 22 7559 Tab 4.3 The actuations menu can also be used to activate other actuations and/or make adjustments to the audio/video settings Press to end...
  • Page 23 7559 Tab 4.3 Calling an Indoor Station (Intercom) Where appropriately configured (see Installer configuration or using the SaveProg spftware), the video entryphone allows you to communicate with other Indoor Stations and Switchboards. If at least 2 programmable keys have been programmed as intercom, the specific menu appears. If only one key has been programmed, press it directly.
  • Page 24 7559 Tab 4.3 The display indicates that the call is in progress towards the Indoor Station in position 1. In the meantime, you can activate other actuations by pressing the related keys (e.g. stair lights, etc..) N.B.: before connecting the audio channels with any other device, the Indoor Station Art. 7559 determines the best possible communication parameters.
  • Page 25 7559 Tab 4.3 Calling a Reception switchboard One or more Switchboards can be called using the Intercom menu, or - if the call to a Reception switchboard has been activated - via the SaveProg software, using the key directly Press to display the Intercom menu Press to call the Reception switchboard 2 for example...
  • Page 26 7559 Tab 4.3 The display indicates that the call is in progress towards the Reception switchboard 2 (A) When the Reception switchboard answers, the icons for the audio settings and the microphone mute function appear.
  • Page 27 7559 Tab 4.3 Now other scenarios are possible, depending on how the Reception switchboard works. For example, the switchboard operator could connect another Indoor Station/Outdoor Station/Reception switchboard. While it does this, it may put you on hold. During this hold, the display shows the audio disabled icon. Hold can be interrupted the by pressing the When communication with the other Indoor/Outdoor Station/Reception switchboard is activated, the related icon appears (A).
  • Page 28 7559 Tab 4.3 Professional firm function This function, when active, following a call from an Outdoor Station, automatically activates the lock. The professional firm function must be enabled and, subsequently, it can be activated or deactivated according to need. To enable the function, see or via the Installer configuration SaveProg...
  • Page 29 7559 Tab 4.3 N.B.: the automatic ending of the call can be avoided using the SaveProg software To disable the function, in stand-by press for more than 5 seconds. A low-tone beep is emitted and the lock LED stops flashing BEEP...
  • Page 30 7559 Tab 4.3 Activating professional firm from the User menu When the function is enabled, an icon appears in the user menu. Press the related key to enable/disable the function Press to display the User menu Press to enable the function...
  • Page 31 7559 Tab 4.3 Now the function is active, press it again to disable it...

  • Page 32: Alert Function

    7559 Tab 4.3 Alert Function This function is used to send a notice to the Reception Switchboard art 40510 even if the Due Fili Plus bus is busy. To enable this function, one of the programmable keys must be configured as Alert. Installer configuration or via the SaveProg...
  • Page 33 7559 Tab 4.3 Now the video entryphone goes in stand-by and receives various answers depending on the actions of the Reception switchboard. These answers may be visual or acoustic depending on the configuration set via the SaveProg software The video entryphone is pending an answer from the Reception switchboard BEEP Slow flashing Low and slow...

  • Page 34: User Configurations

    7559 Tab 4.3 User configurations Certain parameters of the TAB 7559 Video entryphone can be adjusted using the User Configurations menu. This menu can be used to modify certain and set the audio/video settings keypad cleaning. You can also access (only where enabled via a code) the section Installer configurations In stand-by press to display the User menu...
  • Page 35 7559 Tab 4.3 ICON FUNCTION DESCRIPTION DEFAULT VALUE Ringtone It activates/deactivates the ringtone. It also sets the user Ringtone on exclusion away status where enabled via SaveProg Call from Outdoor It selects the ringtone that is reproduced in the event of a Melody B Station ringtone call from an Outdoor Station...
  • Page 36 7559 Tab 4.3 Ringtone exclusion This section is used to enable/disable the ringtone or set the User away status (where enabled from SaveProg) Press to modify Press left or right to select the option among: Ringtone on Ringtone off: the video entryphone does not ring but turns on N.B.: “Ringtone exclusion”...

  • Page 37: Ringtone Selection

    7559 Tab 4.3 Ringtone selection This section is used to select the ringtone which is reproduced in the event of a call from: An Outdoor Station Landing (both from local FP-M contact as well as from interface for remote push buttons 6120) An Indoor Station or Reception Switchboard N.B.: the selection method is identical for all three settings Press to modify...

  • Page 38: Brightness Control

    7559 Tab 4.3 Brightness control This section is used to adjust the brightness level of the image filmed by the Outdoor Station Press to modify The self-start of the Outdoor Station is performed, allowing you to check the adjustment in real time Press to raise or lower the brightness The horizontal bar indicates the brightness level Press to confirm...
  • Page 39 7559 Tab 4.3 Key tone This section is used to enable/disable the acoustic signalling produced whenever a key is touched (keystroke feedback) Press to modify Left or right to select the option among: Key tone enabled Key tone disabled Press to confirm Keypad cleaning This section is used to activate the keypad cleaning function, by allowing you to block the keys of the video entryphone for the amount of time necessary to clean them.
  • Page 40 7559 Tab 4.3 Installer configuration This section is used to set certain advanced parameters directly from the device. In addition, a larger number of options can be selected for each parameter, using the SaveProg software). For safety reasons, access to this section is permitted only after a PIN number has been entered. 100 by default The PIN number is Caution: the modification of these parameters is for the sole use of qualified persons...
  • Page 41 7559 Tab 4.3 Press to select the first digit of the PIN number Press to confirm and move on to the second digit Press to select the second digit of the PIN number Press to confirm and move on to the third digit Press to select the third digit of the PIN number Press to confirm 10.
  • Page 42 Reset factory Station, restoring it to the initial default operating – configuration condition. Enabling Enables/disables the Professional Firm function. Disabled Professional Firm System Displays useful information for Vimar customer service – information (SAC/TSX), including ID, Firmware version, and so on:...
  • Page 43 7559 Tab 4.3 Actuations This section is used to set an actuation for each programmable key of the Video entryphone. It is therefore possible to perform directly, or via selection from a dedicated menu, the actuation of relays, Outdoor Station locks and send F1/F2 controls to Outdoor Stations. N.B.: if at least 1 of the programmable keys has been programmed, the user will have a dedicated menu available, otherwise press one of the default keys directly to activate the default actuation.
  • Page 44 7559 Tab 4.3 Example 1: no key programmed In stand-by (display black) press one of the programmable keys and the default actuation will be actuated: Self-start Relay 2 activation Sending F2 control last Outdoor Station Relay 1 activation Example 2: programming of a single key (P3) After pressing the key to display the actuations menu, press to activate relay 3.
  • Page 45 7559 Tab 4.3 Programming an actuation (ID and icon) Press to program an actuation Press to select the push button to program Press to confirm Press to select the icon that will represent the actuation in the Actuations menu Press to select the icon Press to confirm Press to select the actuation to be associated Press to confirm...
  • Page 46 7559 Tab 4.3 Deleting an actuation Press to delete an actuation Press to select the push button on which you wish to delete the actuation Press to confirm Press to select the function to eliminate the actuation Press to confirm Press to delete the actuation Both the icon and the association with the key are restored to their factory values...
  • Page 47 7559 Tab 4.3 Intercom This section is used to set an intercom call for each programmable key of the Video entryphone. Intercom calls can be made to another Indoor Station or to a Reception switchboard. The Alert function can also be associated, which sends a notification to all Switchboards. N.B.: no association is present by default.
  • Page 48 7559 Tab 4.3 Example 1: programming of an intercom key (1) In stand-by (black display) press to make the call to a programmed intercom device, whatever its position in the list. Example 2: programming 2 or more intercom keys After pressing the key to display the intercom menu, press to call the Indoor Station in position 1.
  • Page 49 7559 Tab 4.3 Programming an intercom key - Calling an Indoor Station Press to program an intercom key Press to select a call to an Indoor Station Press to confirm Indoor Station 4 Press a key on the Indoor Station to call that identifies it unequivocally. It is advisable to use a key that controls the opening of a lock, but you can also use a key that operates a relay or controls one of the F1 or F2 outputs of an Outdoor Station N.B.: if the Indoor Station that is to be called has a handset, it is advisable to use the lock with the handset replaced...
  • Page 50 7559 Tab 4.3 Programming an intercom key - Calling a Reception Switchboard Press to program an intercom key Press to select a call to a Reception Switchboard Press to confirm Press to select the Reception switchboard to call The call to the programmed switchboard can now be displayed Programming an intercom key - Alert function Press to program an alert Press to select the Alert the Reception switchboard Art.
  • Page 51 7559 Tab 4.3 Deleting an intercom device Press to delete a programming Press to select deleting the association of the key with an intercom device Press to continue Press to confirm The association has been deleted...
  • Page 52 7559 Tab 4.3 Assignment of main and secondary ID This section is used to define whether the video entryphone is Main or Secondary and consequently assigns an ID to identify it in the system. Main Indoor Station: it is the single Indoor Station receiving the call, or it is the first (master) of a group with the contemporary call from an outdoor station.
  • Page 53 7559 Tab 4.3 After a few seconds, the identification of your Video entryphone appears on the display (A) N.B.: in the case of a secondary Indoor Station, the ID is not that selected, but one is assigned, by means of a certain algorithm, among the three possible IDs deduced from the main one...

  • Page 54: Changing The Pin

    7559 Tab 4.3 Changing the PIN This section is used to modify the PIN number to access the installer configuration. The number is 100 by default Press to select the changing the PIN function Press to confirm Press to select the first digit of the PIN number Press to confirm and move on to the second digit Press to select the second digit of the PIN number Press to confirm and move on to the third digit...
  • Page 55 7559 Tab 4.3 Reset factory configuration This section is used to delete any settings and programming of the Indoor Station and to restore it to the initial default condition. Press to reset the Video entryphone Press to confirm Press to start the process After the reset, the procedure must be repeated First power up...
  • Page 56 7559 Tab 4.3 Enabling Professional Firm This section is used to enable/disable the professional firm function. Once enabled, the user may activate the function from the user menu Press to select the function Press to confirm Press to select OFF for disabling and ON for enabling Press to confirm Now the activation of the professional firm function (A) is enabled in the user menu...

  • Page 57: System Information

    7559 Tab 4.3 System information This section is used to display useful information for Vimar customer service (SAC/TSX), including ID, Firmware version, and so on: Press to select the function Press to confirm The information displayed is ID of the Indoor Station...
  • Page 58 7559 Tab 4.3 Configuration with SaveProg Using SaveProg, you can configure the Video entryphone in an advanced manner. SaveProg manages Art. 7559 from version 3.7.0.0 onwards. The correspondence between the keys P1..P8 of SaveProg and the keys T1..T4 in the two operating contexts is as follows: INTERCOM ACTUATIONS...
  • Page 59 7559 Tab 4.3 Display of specific entrance panel self-start Cannot be configured from the Indoor Station but visible if configured using SaveProg. The following table, taken from the SaveProg help, it is in the SELF-START/ENTRANCE PANEL line. 7559 TYPE FREE SELF-START/ENTRANCE PANEL AUXILIARY...
  • Page 60 7559 Tab 4.3 Professional firm function If the lock has been activated, when the outdoor station receives the ringtone end message the indoor station automatically ends the call. It is possible to avoid the automatic call end by excluding the SaveProg flag called Autom.Lock End which is normally selected automatically when the Professional Firm function is enabled.
  • Page 61 7559 Tab 4.3 Alert Function Use SaveProg to select some of the characteristics of the Alert function: Enabling A Disabled (default) B Enabled Polarity state active A Contact normally open (default) B Contact normally closed Activation delay A 0.1 s (default) B 0.5 s C 1 s D 2 s...
  • Page 62 7559 Tab 4.3 Notes...
  • Page 63 7559 Tab 4.3 Notes...
  • Page 64 49401253C0_MU 00 2104 Viale Vicenza 14 36063 Marostica VI - Italy www.vimar.com...
