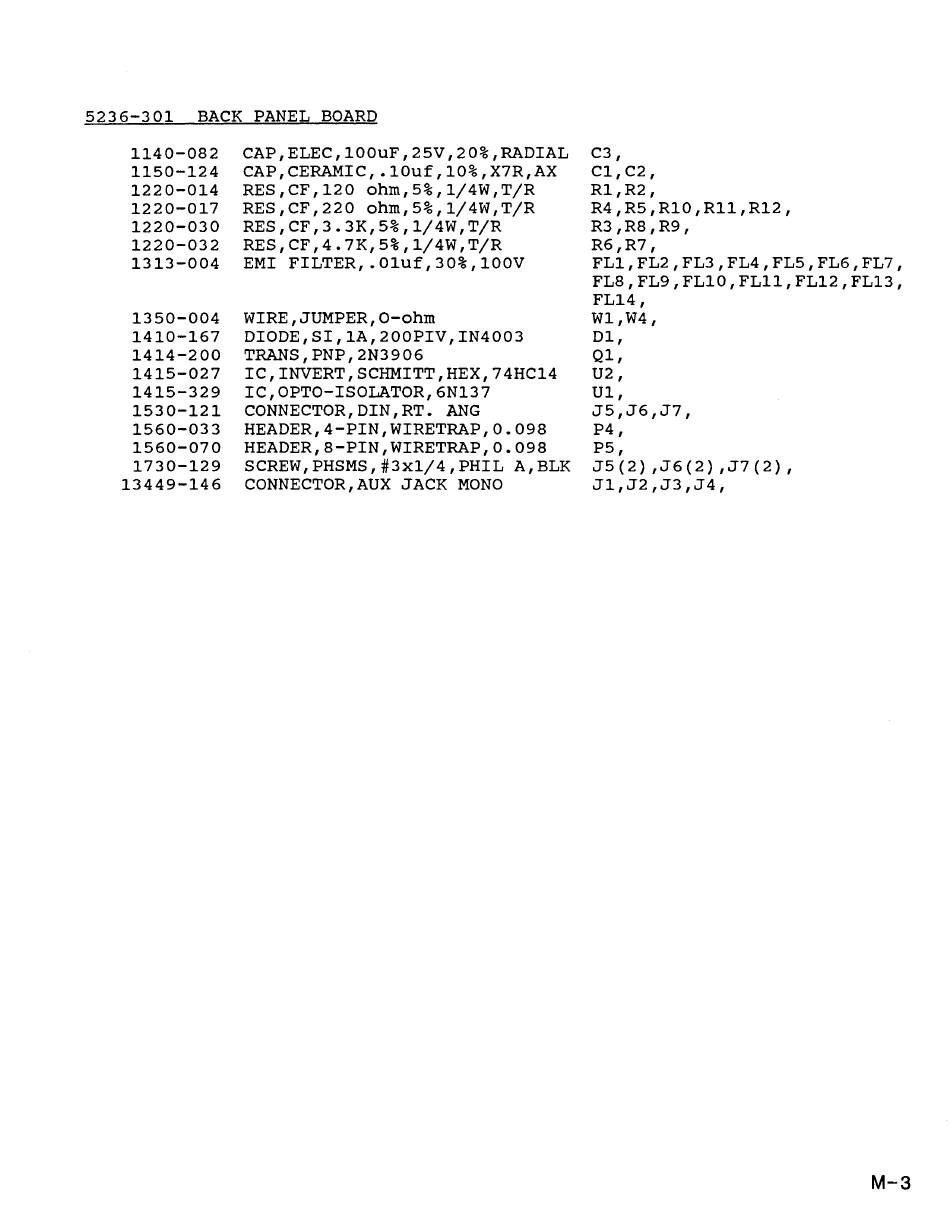

5236-301 BACK PANEL BOARD
1140-082
1150-124
1220-014
1220-017
1220-030
1220-032
1313-004
1350-004
1410-167
1414-200
1415-027
1415-329
1530-121
1560-033
1560-070
1730-129
13449-146
CAP,ELEC,100uF,25V,20%,RADIAL
CAP,CERAMIC,.10uf,10%,X7R,AX
RES,CF,120 ohm,5%,1/4W,T/R
RES,CF,220 ohm,5%,1/4W,T/R
RES,CF,3.3K,5%,1/4W,T/R
RES,CF,4.7K,5%,1/4W,T/R
EMI FILTER,.01uf,30%,100V
WIRE,JUMPER,O-ohm
DIODE,SI,1A,200PIV,IN4003
TRANS,PNP,2N3906
IC,INVERT,SCHMITT,HEX,74HC14
IC,OPTO-ISOLATOR,6N137
CONNECTOR,DIN,RT. ANG
HEADER,4-PIN,WIRETRAP,0.098
HEADER,8-PIN,WIRETRAP,0.098
SCREW,PHSMS,#3X1/4,PHIL A,BLK
CONNECTOR,AUX JACK MONO
C3,
C1,C2,
R1,R2,
R4,R5,R10,R11,R12,
R3,R8,R9,
R6,R7,
FL1,FL2,FL3,FL4,FL5,FL6,FL7,
FL8,FL9,FL10,FL11,FL12,FL13,
FL14,
W1,W4,
01,
Q1,
U2,
U1,
J5,J6,J7,
P4,
P5,
J5(2),J6(2),J7(2),
J1,J2,J3,J4,
M-3
