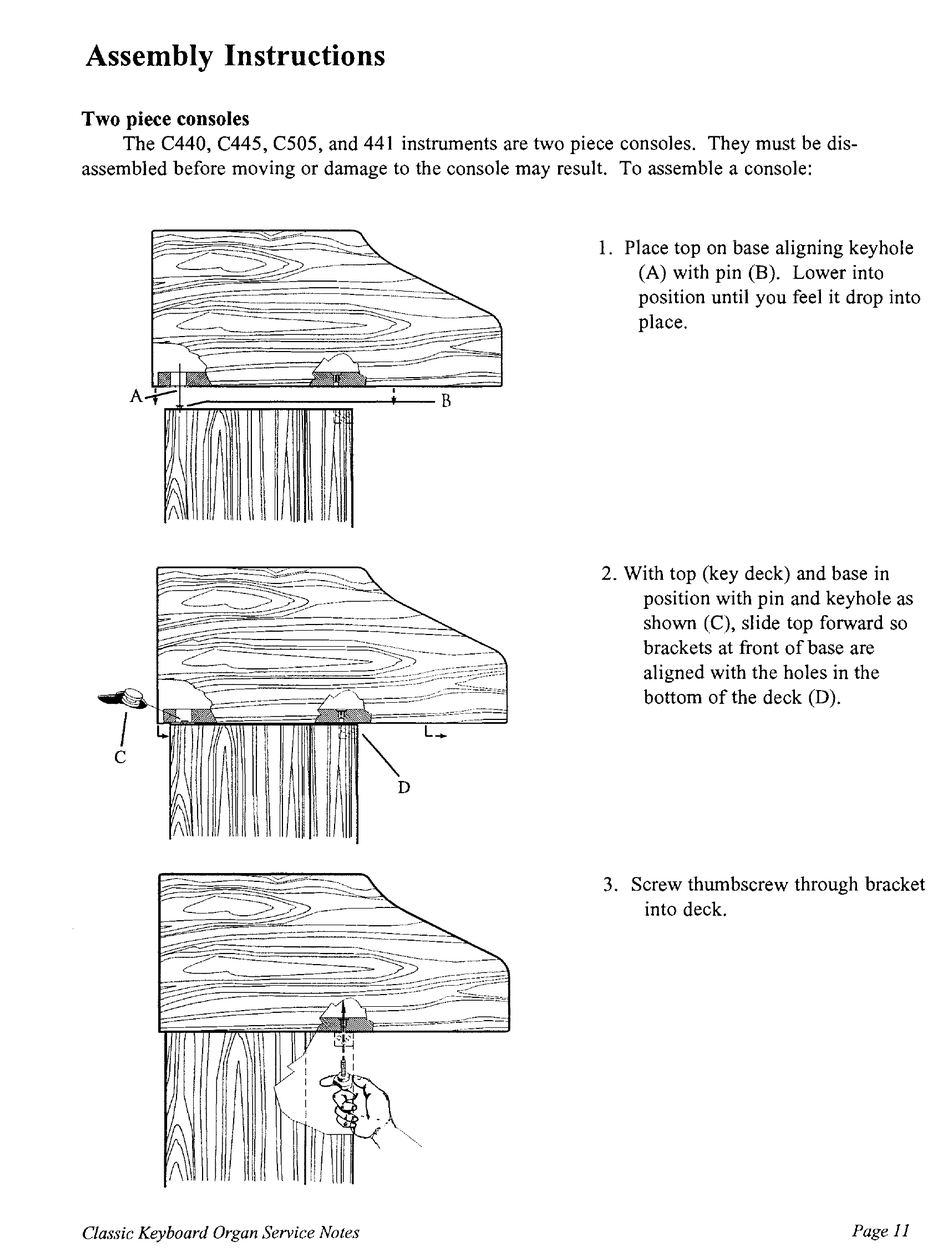

Assembly Instructions
Two piece consoles
The C440, C445, C505, and 441 instruments are two piece consoles. They must be dis-
assembled before moving or damage to the console may result. To assemble a console:
-:::-
:::::--...~
~
-=-......
~
~-
~
==-~
~
<
'\
/
I~
A..;-
!
B
~
~
~
D
Classic Keyboard Organ Service Notes
1. Place top on base aligning keyhole
(A) with pin (B). Lower into
position until you feel it drop into
place.
2. With top (key deck) and base in
position with pin and keyhole as
shown (C), slide top forward so
brackets at front of base are
aligned with the holes in the
bottom of the deck (D).
3. Screw thumbscrew through bracket
into deck.
