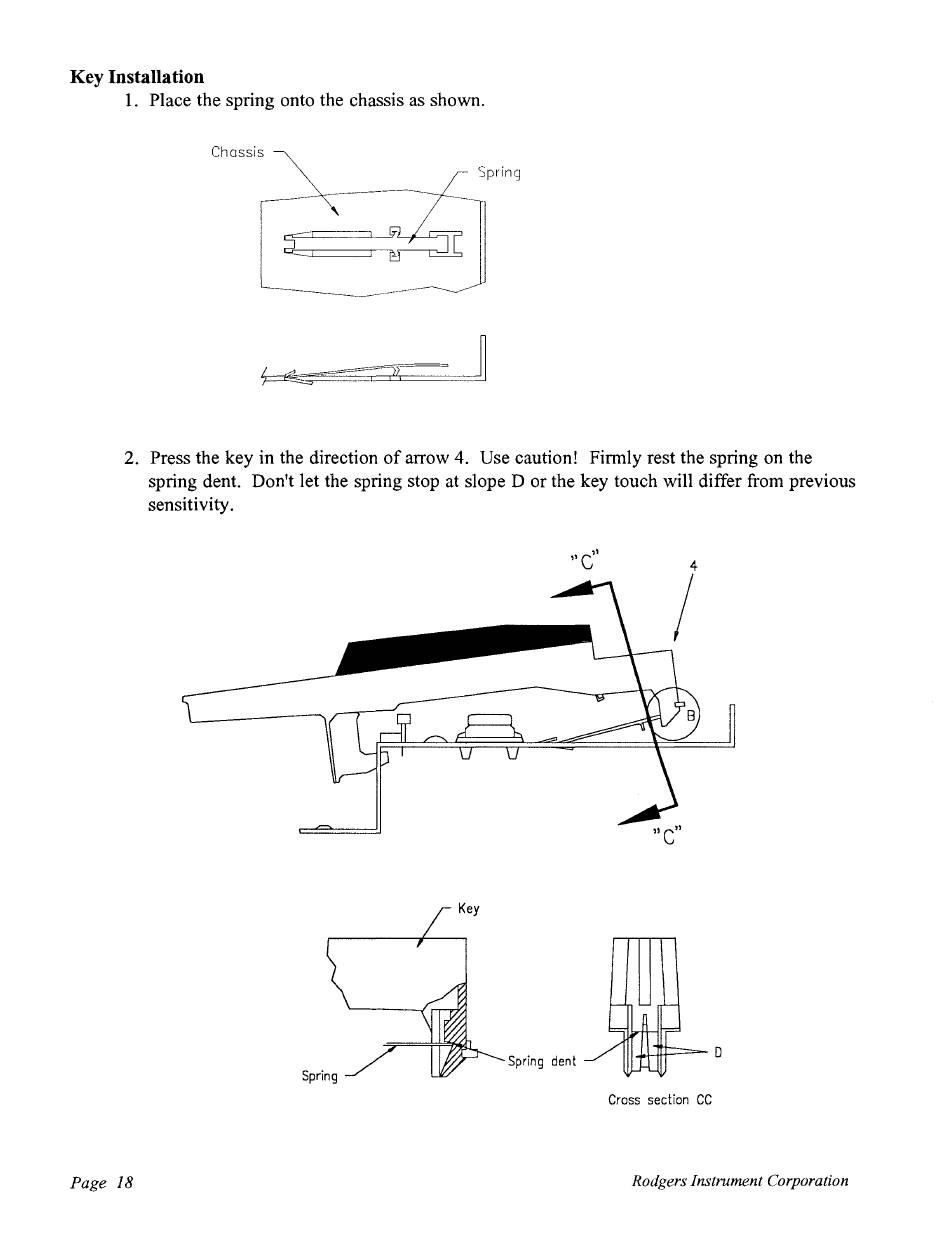

Key Installation
1. Place the spring onto the chassis as shown.
Chassis
Spring
2. Press the key in the direction of arrow 4. Use caution! Firmly rest the spring on the
spring dent. Don't let the spring stop at slope D or the key touch will differ from previous
sensitivity.
Key
Spring dent
Cross section CC
Page 18
Rodgers Instrument Corporation
