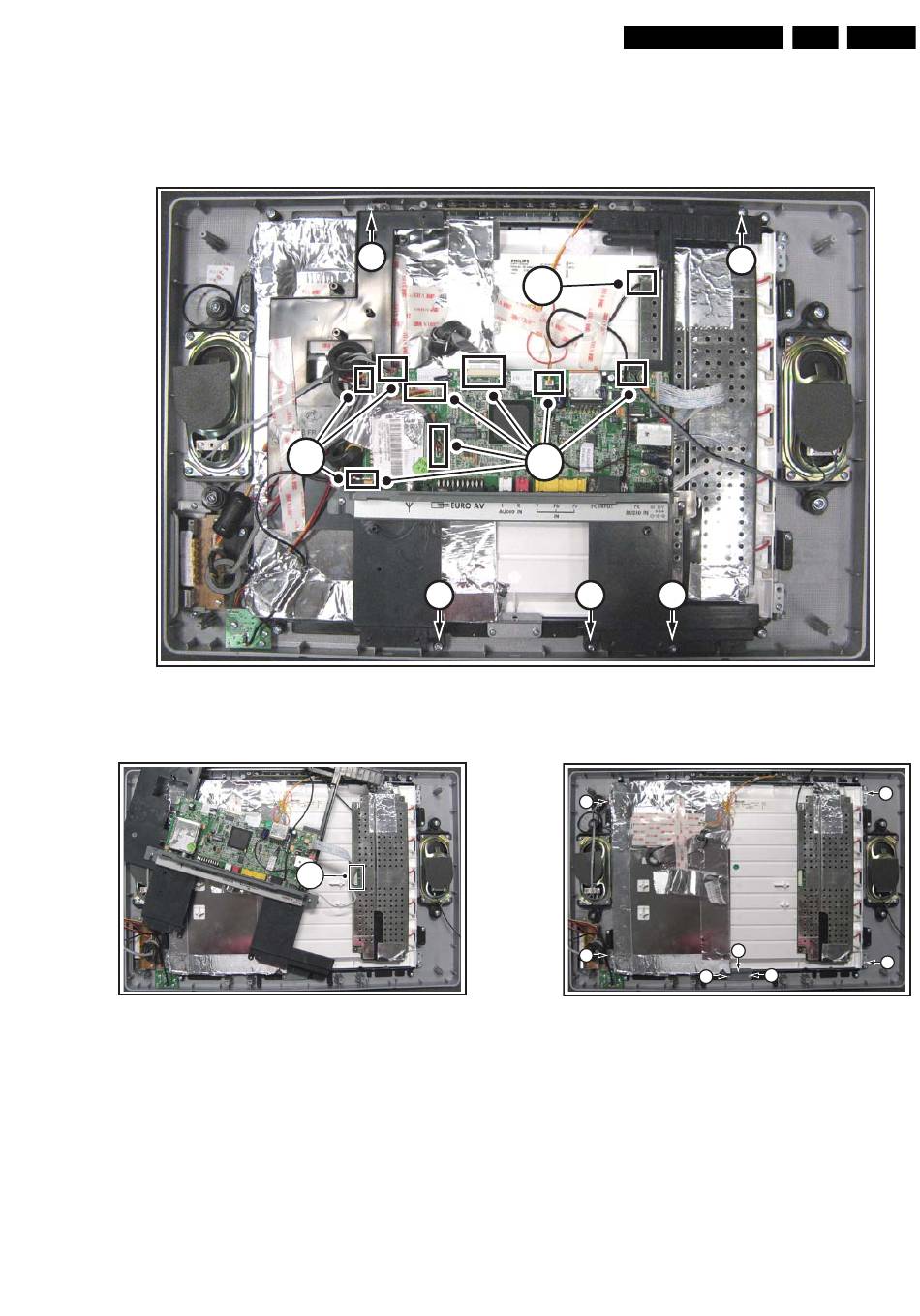

4.8 LCD Display Panel Removal
1. Remove the rear cover, as described earlier.
2. Unplug connectors [1].
3. De-solder wire [2] from the backlight inverter board.
4. Remove fixation screws [3].
Figure 4-10 Display panel removal 2/3
Mechanical Instructions
3
1
3
Figure 4-9 Display panel removal 1/3
4
G_16500_017.eps
291106
TEH1.0E LA
5. Move the plastic subframe with the main board to the left,
just far enough to have access to connector [4]. Unplug
connector [4].
6. Remove fixation screws [5] and bracket [6]
7. Lift the display panel from the front cover, and put it on an
appropriate surface (e.g. foam bars).
2
1
3 3
5
5
Figure 4-11 Display panel removal 3/3
4.9 Set Re-assembly
To re-assemble the whole set, execute all processes in reverse
order.
Note:
• While re-assembling, make sure that all cables are placed
and connected in their original position. See figure "Cable
dressing".
• As the adhesive aluminium tape is crucial for a correct
shielding of the set, make sure it is replaced if necessary.
