EN 8 4. TEH1.0E LA

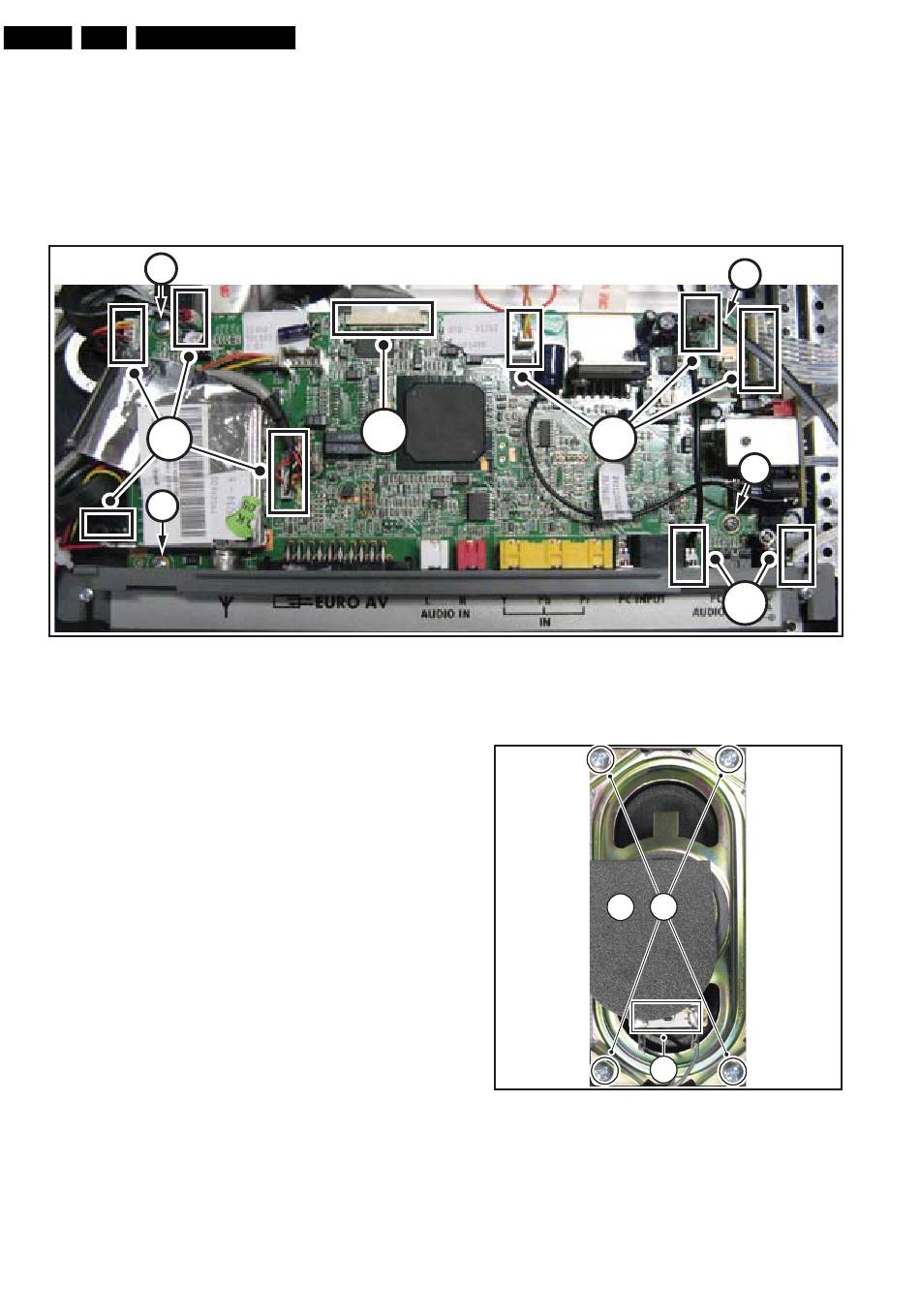

4.6 Main Board Removal
1. Remove the rear cover, as described earlier.
2. Remove the subframe, as described earlier.
3. Unplug connectors [1].
4. Carefully unplug the fragile LVDS connector [2].
5. De-solder wires [3].
6. Remove fixation screws [4].
7. Remove the main board.
4
1
4
4.7 Speaker Removal
1. Remove the rear cover, as described earlier.
2. De-solder the wires [1] from the speaker contacts.
3. Remove screws [2].
4. Remove the speaker.
5. At installation of a new speaker, also glue a new piece of
foam [3] to the speaker.
Mechanical Instructions
2
Figure 4-7 Main board removal
4
1
3
3 2 2
1
Figure 4-8 Speaker removal
4
G_16500_012.eps
011206
G_16500_015.eps
281106
