EN 6 4. TEH1.0E LA

4. Mechanical Instructions

Index of this chapter:
4.1 Cable Dressing
4.3 Rear Cover Removal
4.6 Main Board Removal
4.5 IR & LED / Power Switch Board Removal
4.4 Side I/O Board Removal
4.8 LCD Display Panel Removal
4.7 Speaker Removal
4.9 Set Re-assembly
4.1 Cable Dressing
4.2 Service Position
For easy servicing of flat TV sets, we have created foam bars,
which can be used as indicated in the following drawing.
The foam bars (order code 3122 785 90580 for two pieces) can
be used for all types and sizes of Flat TVs. By putting the TV
face down on the (ESD protective) foam bars, a stable situation
is created to perform measurements and alignments.
By placing a mirror under the TV, you can monitor the screen.
Mechanical Instructions

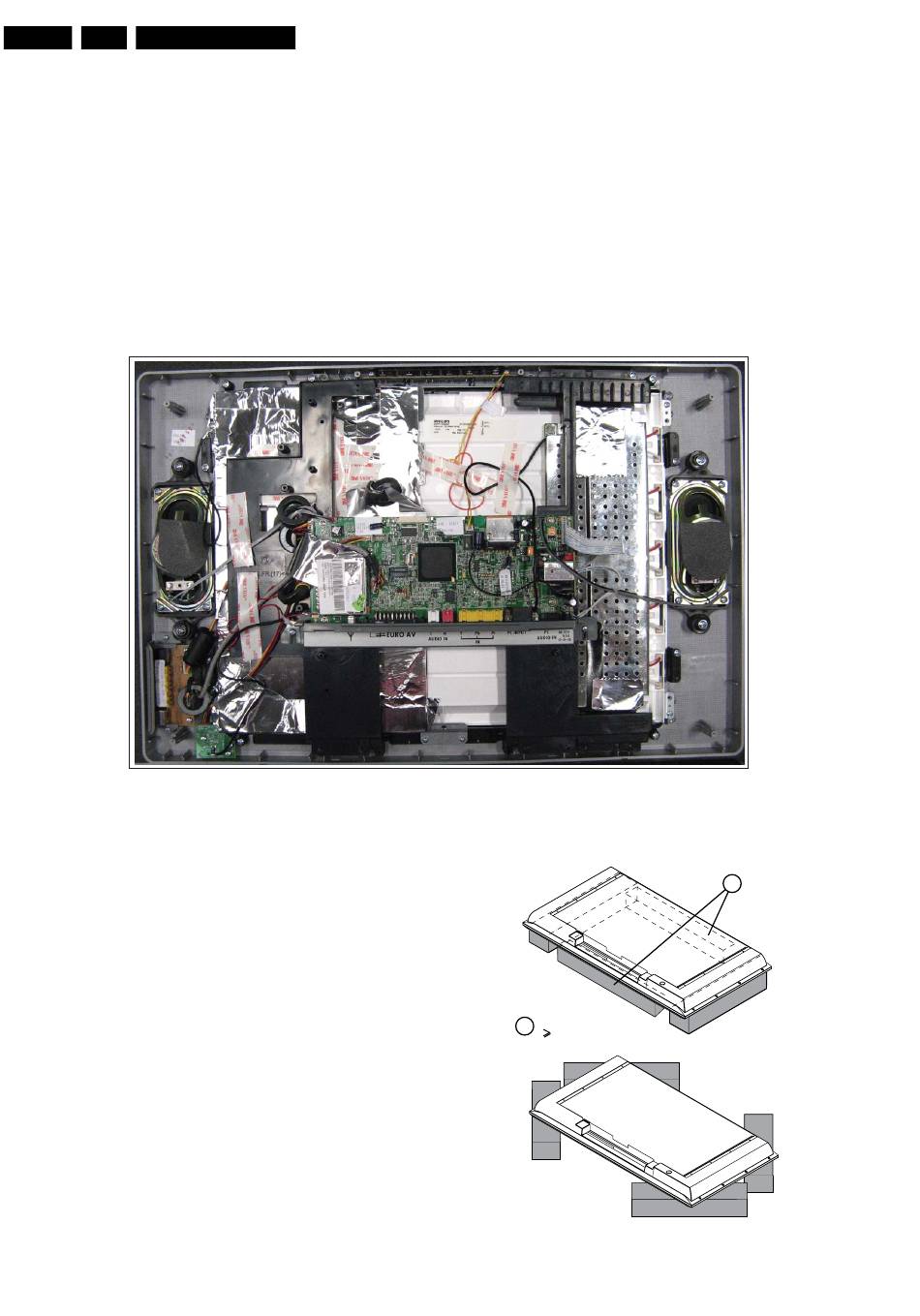

Figure 4-1 Cable Dressing
Notes:
• Figures below can deviate slightly from the actual situation.
• Follow the disassemble instructions in the described order.
• The presence of adhesive tape can interfere severely with
the described actions!
• The removal of adhesive aluminium tape can interfere
severely with the quality of the image!
Required for sets
1
42"
Figure 4-2 Foam bars
G_16500_009.eps
281106
1
E_06532_018.eps
171106
