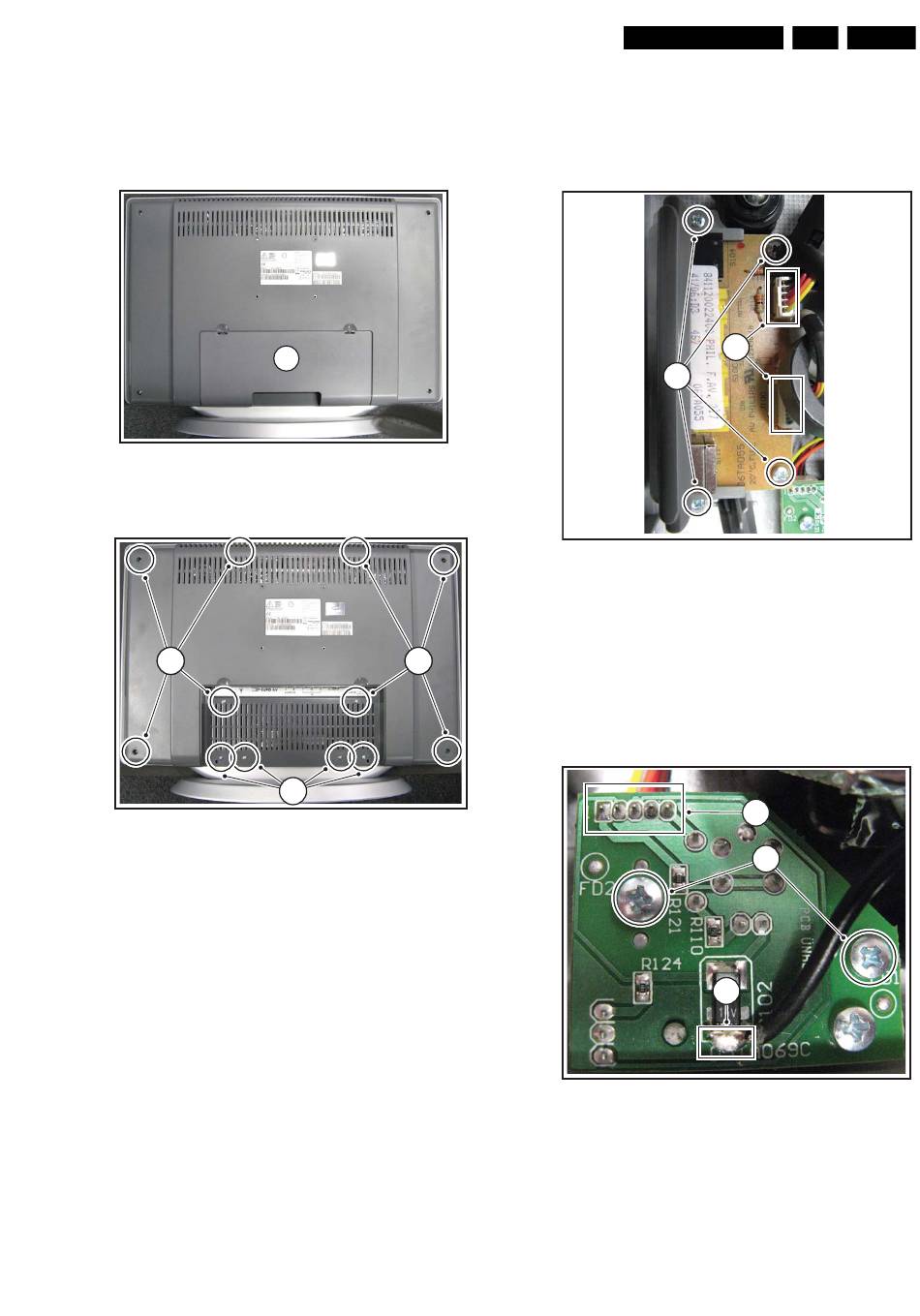

4.3 Rear Cover Removal
1. Put the set face down on a table.
2. Remove cable cover [1].
3. Remove fixation screws [2] and the stand.
4. Remove fixation screws [3] and the rear cover.
Figure 4-3 Rear cover removal 1/2
3
Figure 4-4 Rear cover removal 2/2
Before you assemble the rear cover:
1. Place all cables in their original position (see figure "Cable
dressing").
Mechanical Instructions
1
G_16500_010.eps
281106
3
2
G_16500_011.eps
281106
TEH1.0E LA
4.4 Side I/O Board Removal
1. Remove the rear cover, as described earlier.
2. Unplug connectors [1].
3. Remove screws [2].
4. Remove the side I/O board.
2 2
Figure 4-5 Side I/O board removal
4.5 IR & LED / Power Switch Board Removal
1. Remove the rear cover, as described earlier.
2. De-solder wire [1].
3. Remove fixation screws [2].
4. Unplug connector [3].
5. Remove the IR & LED/ Power Switch board.
Figure 4-6 IR & LED / power switch board removal
4. EN 7
1
G_16500_014.eps
281106
3
2
1
G_16500_013.eps
281106
