8. Alignments

Index of this chapter:
8.1 Options
8.2 General Alignment Conditions
8.3 Hardware Alignments
8.4 Software Alignments
8.1 Options
8.1.1 Introduction
Options are used to control the presence/absence of certain
features and hardware.
How to Change an Option
Different from other Philips TV sets, the options are not
represented as bits and bytes, but as a three-digit number and
an abbreviated text.
GROUP
SERV. SET NR.
OSD DISPLAY STRING

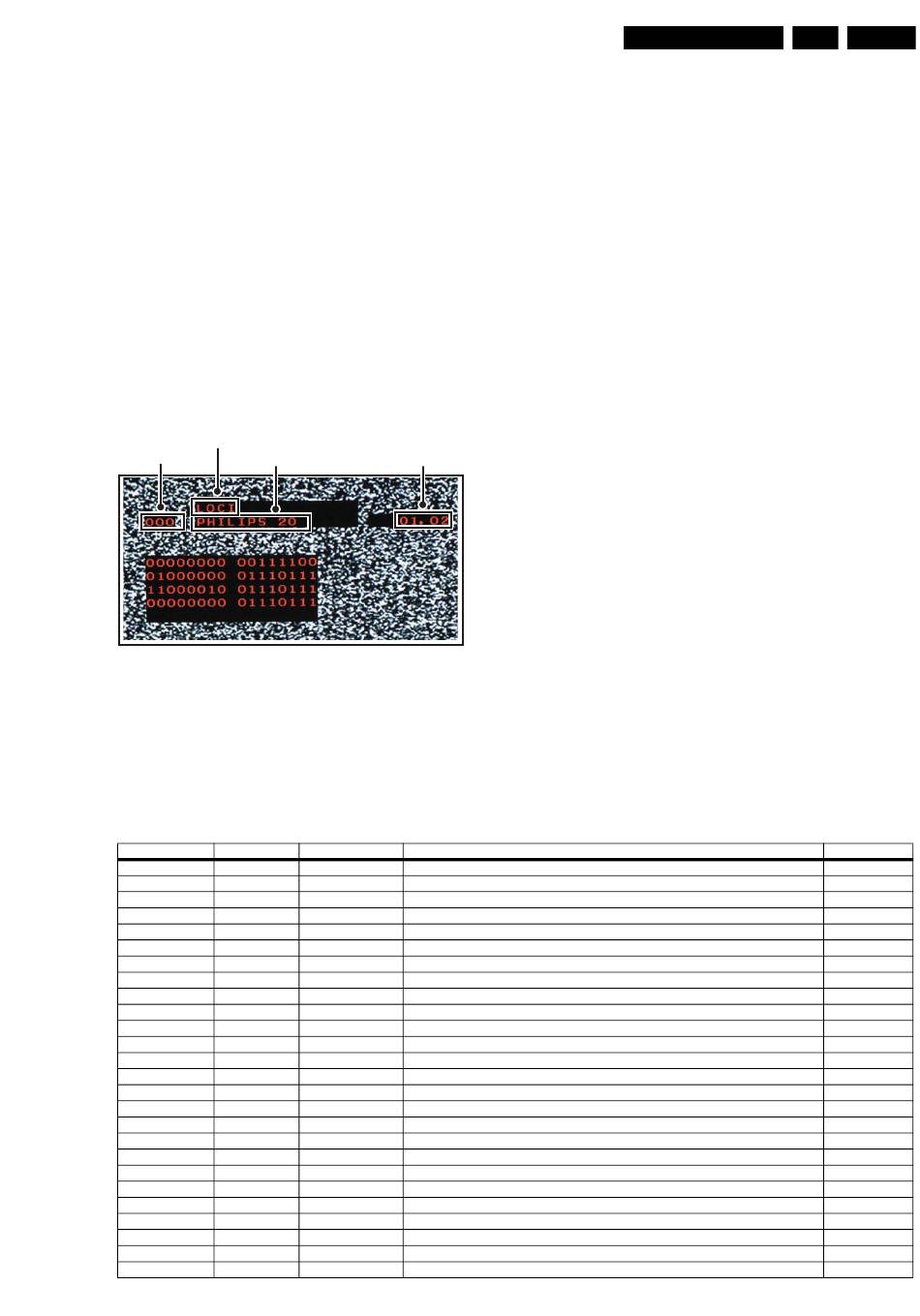

Figure 8-1 Layout of the Service Menu
The option settings are a part of the Service Menu, as are the
parameters. The method of entering the Service Menu and the
structure of the Service Menu are described in "Software
Alignments" below.
Table 8-1 Service Menu
Service Setting Nr. Group
000 LOC I
001
002
003
004 Crystal alignment
005
006
007
008 Zoom options
009
010
011 Colour alignment
012
013
014
015
016
017
018
019
020
021
022
023 Video Preset
024
025
ACTUAL VALUE
G_16500_020.eps
291106
OSD Display String Description
PF99 Version Software Version
Init TV Initialise NVM
ISP Mode Enter ISP mode
Sedna Version Version of Sedna Software
DCXO DCXO alignment
DCXO Auto Auto DCXO alignment
NicamLowErLimit Nicam Lower Error Limit
NicamUpErrLimit Nicam Upper Error Limit
AutoZoom 4:3 Choose Anaronap (0) or Compressed (1)
WSS WSS enabled
Gld-Scart Golden scart enabled
WPR-C White point red -- Cold
WPG-C White point green -- Cold
WPB-C White point blue -- Cold
WPR-N White point red - Normal
WPG-N White point green -- Normal
WPB-N White point blue -- Normal
WPR-W White point red -- Warm
WPG-W White point green -- Warm
WPB-W White point blue -- Warm
RGB OSD RGB brightness
PCCOL Colour PC mode
PCTINT Tint adjustment for PC mode
PV-BR-MV Brightness Movie Preset
PV-CL-MV Colour Movie Preset
PV-CT-MV Contrast Movie Preset
Alignments TEH1.0E LA
8.2 General Alignment Conditions
Perform all adjustments under the following conditions:
• AC voltage and frequency: 230 V_ac / 50 Hz.
• Connect the set to the mains voltage via an isolation
transformer with a low internal resistance.
• Allow the set to warm up for approximately 20 minutes.
• Measure the voltages and waveforms in relation to chassis
ground (with the exception of the voltages on the primary
side of the power supply). Never use the cooling fins /
plates as ground.
• Test probe: Ri > 10 Mohm; Ci < 2.5 pF.
• Use an isolated trimmer / screwdriver to perform the
alignments.
8.3 Hardware Alignments
There are no hardware alignments present in the set.
8.4 Software Alignments
8.4.1 Service Menu
The Service Menu consists of a large number of settings. You
can activate and deactivate options, or change parameters that
influence the quality of the displayed image. Activate and use
the Service Menu as follows:
• Press the "Menu" button on the remote control: the screen
will display the Customer Menu. At the same time the
sound will go to a default level.
• Press "1147" on the remote control: the screen will now
display the first item '000' of the Service Menu (refer to the
Table "Service Menu" below).
• Navigate with the "^" and "v" cursor buttons on the remote
control, or directly key in the number of the parameter you
want to change; increase a value with ">", decrease with
"<":
• To leave the Service Menu, press the "TV" button.
8. EN 25
Default value
01.02 (example)
0
0
2.09.00 (example)
88
0
14
50
0
1
1
32
30
28
30
30
32
26
28
32
30
32
32
28
31
34
