Summary of Contents for body Power IT 9910

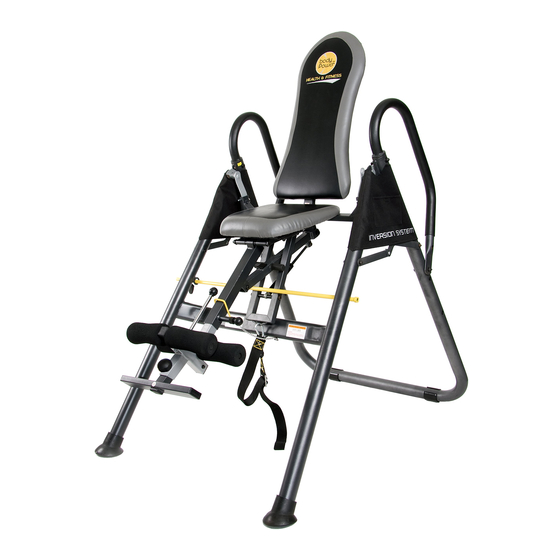

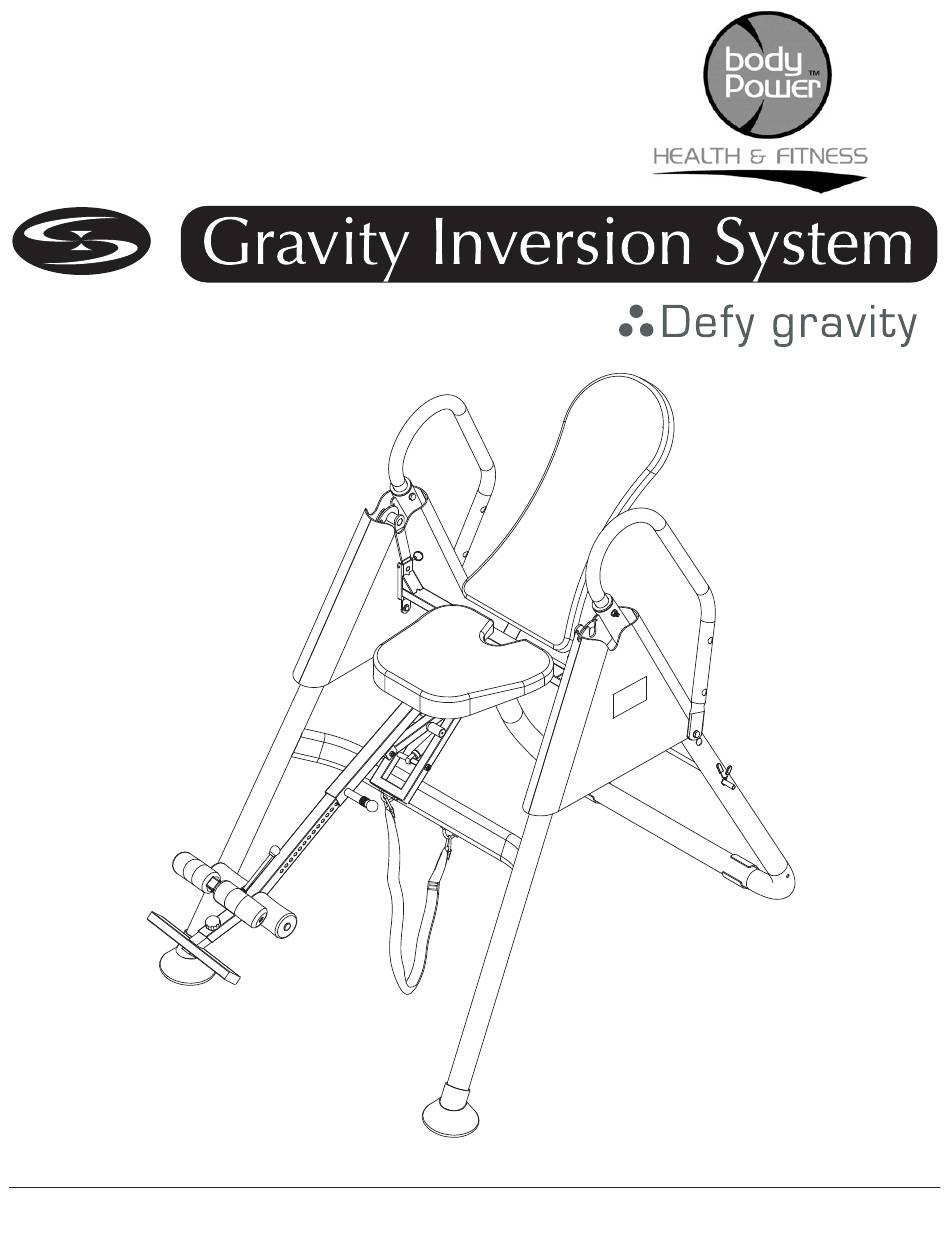

- Page 1 * This item is for consumer use only and it is not meant for commercial use. OWNE R’ S MAN UAL...
- Page 2 This page intentionally left blank...
-
Page 3: General Information
General Information Safety Storage and Use Before you undertake any exercise program, Your product is intended for use in clean please be sure to consult with your doctor. dry conditions. You should avoid storage in Frequent strenuous exercise should be excessively cold or damp places as this may approved by your doctor and proper use lead to corrosion and other related problems. -
Page 4: Hardware List
Hardware List The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items. Please note some of this hardware is already pre-assembled on the machine. Do not be alarmed if you see parts on this page that are not included in your hardware packet Bolt #39. -
Page 5: Parts Listing
Parts Listing The following parts list describes all of the parts illustrated on the exploded diagram on the following page. Please note, most of these parts are already pre-assembled on your unit. Part# Description Part# Description Rear Support Tube Grip Table Front Support Tube Hex Bolt (M8x25 mm) Left Cross Support Tube... -
Page 6: Exploded Diagram
Exploded Diagram The following diagram is provided to help you familiarize yourself with the parts and hardware that will be used during the assembly process. Please note that not all of the parts and hardware you see here will be used while you are assembling the machine because some of these items are already pre-installed. - Page 7 Assembly Instructions Assembly Step 1 Hardware Required A.) A-Frame Assembly Bolt Open the pre-assembled A-Frame, which is composed of Front Support Tube (#02), Rear Support Tube (#01), Safety Strap with Buckle (#16) and Cross Support Brackets (#03 ). Make sure #40.
- Page 8 Assembly Instructions Assembly Step 2 A.) Adjustable Pivot Bar Assembly Each Adjustable Pivot Bar (#13) has three holes in it. These three holes are designed to be a fine -tune adjustment that will allow you to shift your center of gravity, so that you can easily control the rate of inversion. Insert each of the two Adjustable Pivot Bars (#13) into the slots located on the Seat Cushion Frame (#08) ensuring that they both line up to the top holes.
- Page 9 Assembly Instructions Assembly Step 3 Hardware Required A.) U Shape Frame Assembly Bolt NOTE: Please make sure the U Shape Frame (#52) is above the Front Support Tube (#02) before assembling. Refer to the diagrams below for more descriptive details. #54.
- Page 10 Assembly Instructions Assembly Step 4 Hardware Required Secure the Backrest Cushion (#17) to the Backrest Cushion Bolt Frame (#50) using four Hex Bolts (#70) and four Washers (#46). Secure the Seat Cushion (#18) to the Seat Cushion Frame (#08) using four Hex Bolts (#39) and four Washers (#46). Tighten the #39.
- Page 11 Assembly Instructions Assembly Step 5 Hardware Required A.) Adjustable Ankle Brace Assembly Bolt Take the illustrated assembly which is composed of parts (#06), (#04) and (#31) out of the box. Pull up the Ankle Brace Lock Pin (#31) as illustrated and, at the same time, pull the Adjustable #43.
- Page 12 Assembly Instructions Assembly Step 6 Hardware Required A.) Height Adjustment Tube Assembly Others With the help of an assistant, attach the Height Adjustment Tube (#04) to the Base of Height Adjustment Tube (#10) by pulling the Height Selector Lock Pin (#32) out and simultaneously sliding the Height Adjustment Tube (#04) in.
-
Page 13: Safety Instructions
Safety Instructions • Make sure all bolts are tightened. • Check for loose parts and components • Check to see if there are any tears or bends in the welding or metal. • Be sure that all adjustment locking devices and safety devices are properly engaged prior to use! IT9910 Page 11... - Page 14 Safety Instructions WARNING: 300 lb. WEIGHT CAPACITY DO NOT USE THIS INVERSION TABLE WITHOUT A PHYSICIAN'S APPROVAL IF YOU HAVE ANY OF THE FOLLOWING CONDITIONS (this list is for reference only, it is not an exhaustive listing): Pregnancy, Hiatal Hernia, Ventral Hernia, Glaucoma, Retinal Detachment or Conjunctivitis; High Blood Pressure, Hypertension, recent Stroke or Transient Ischemic Attack;...
-
Page 15: Usage Guidelines
Usage Guidelines ATTACH THE SAFETY STRAP TO THE U Shape Frame (#52). Hook on the Safety Strap with Buckle (#16) that is located on the Front Support Tube (#02) to the U Shape Frame (#52).The buckle should be able to slide on the Strap so that you can adjust the length of the Strap loop.The shorter the strap, the less the angle of inversion. - Page 16 Usage Guidelines IT8000B USAGE The settings for height range from 5' (152cm) to 6'5" (196cm). To adjust the Inversion Table for the correct height setting; Pull out the Height Selector Lock Pin (#32) and slide the Height Adjustment Tube (#04) until the desired height is shown just below the sleeve.
- Page 17 Usage Guidelines Follow these instructions in order to confirm that you have the correct settings. When you lie down with both arms across your chest the Inversion Table should rotate a few inches UPWARD. If the Inversion Table does not move or if it tilts all the way back, the settings are incorrect. As you lift ONE arm upwards over your head, the Inversion Table will continue to rotate further back.
- Page 18 Usage Demo I. Starting Position: II. With One Arm Half Raised: III. With Two Arms Half Raised: IV. With Both Arms Raised: V. Fully Inverted: IT9910 Page 16...
- Page 19 Thanks for choosing IT9910 Store Location: Version: 07-26-2010...
- Page 20 Body Flex Sports, Inc. • 21717 Ferrero Parkway, Walnut, CA 91789 • Telephone: (888) 266 - 6789 • Email: info@bodyflexsports.com...
