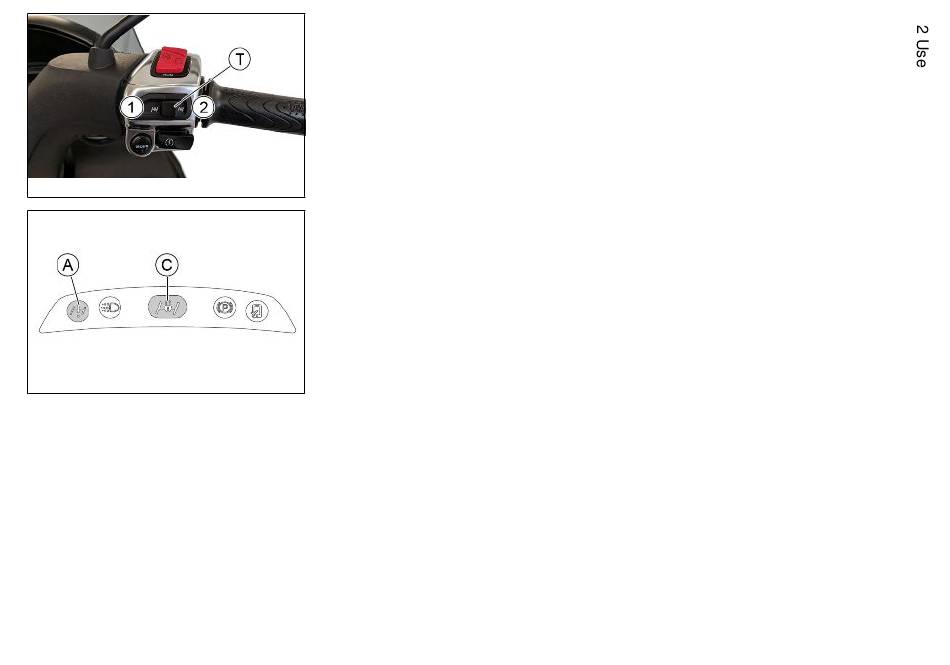

Front suspension locking system (02_20, 02_21)

The front suspension block system allows the simple blockage of rolling of the vehicle
by pressing the switch «T». The vehicle can be stopped without your feet touching the
ground.
The warning light «C» starts flashing when the ignition switch is set to «ON» and the
lock is deactivated. This means that the system is enabled for activation.
Pushing the switch "T" in position "1" a continuous noise will indicated that the block
system is engaged and at the same time the light «C» will stop flashing and remain
lit.
02_20
Pushing the switch «T» in position «"2" » a continuous noise will indicate that the
block system is disengaged and at the same time the light «"C"» will begin flashing
again. The light «C» will turn off when you go into gear. This means that the lock is
not enabled.
Engaging roll lock is possible only if the following conditions occur at the same time:
•
Accelerator completely disengaged.
•
RPM of the engine at less than 2,500 rpm.
•
Vehicle speed below 10 km/h.
•
Block system WARNING light «A» off (the system is correctly functioning)
If any of these conditions are not met the light «C» will remain off and it will not be
02_21 possible to engage the lock (under normal conditions the light «C» is off).
With engine on, system locked (warning light «C» on) and if the rider is properly seated
in riding position, the suspension locking system is disengaged automatically and the
warning light «C » turns off when the throttle is twisted to start the ride.
For increased rider safety, the vehicle is provided with a driver presence sensor
placed inside the saddle which allows the system to inhibit vehicle movement and
suspension block (when engaged), when the rider is not seated in the correct riding
position: in this case the WARNING light «A» will light up.
