Light Switch; Emergency Flashing Light Button - PIAGGIO MP3 300 hpe 2020 Manual

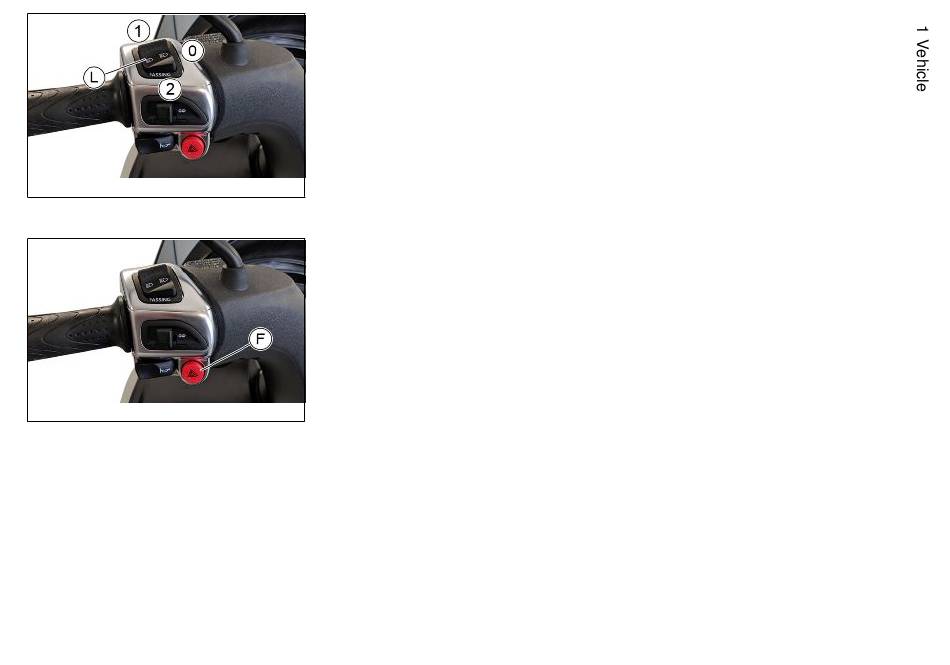

Light switch (01_33)

The position «0» of switch «L» corresponds to the selection of the low beam light.
The position «1» corresponds to the high beam light.
The position «2» activates the high beam light flashing; The switch returns automati-
cally to «0». The flashing control also releases the safety light function, can be
activated in case of failure of high beam light fuse.
01_33

Emergency flashing light button (01_34)

Causes all four turn signals to flash simultaneously. The button «F» can only be acti-
vated with the key set to «ON» position, but once it has been activated it will continue
to function even with the key set to «OFF» and «LOCK» positions. Deactivation of
this function can only be performed with the key in the «ON» position.
01_34
29
