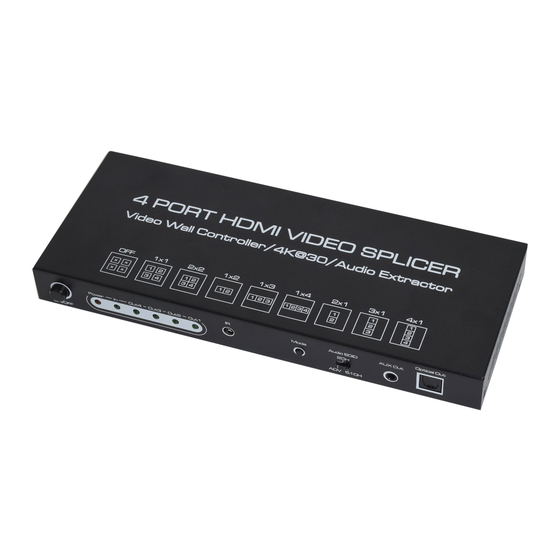

- Page 1 User Manual 4 Port HDMI Video Splicer MODEL No. AA6103...
-
Page 2: Features Of The Interface

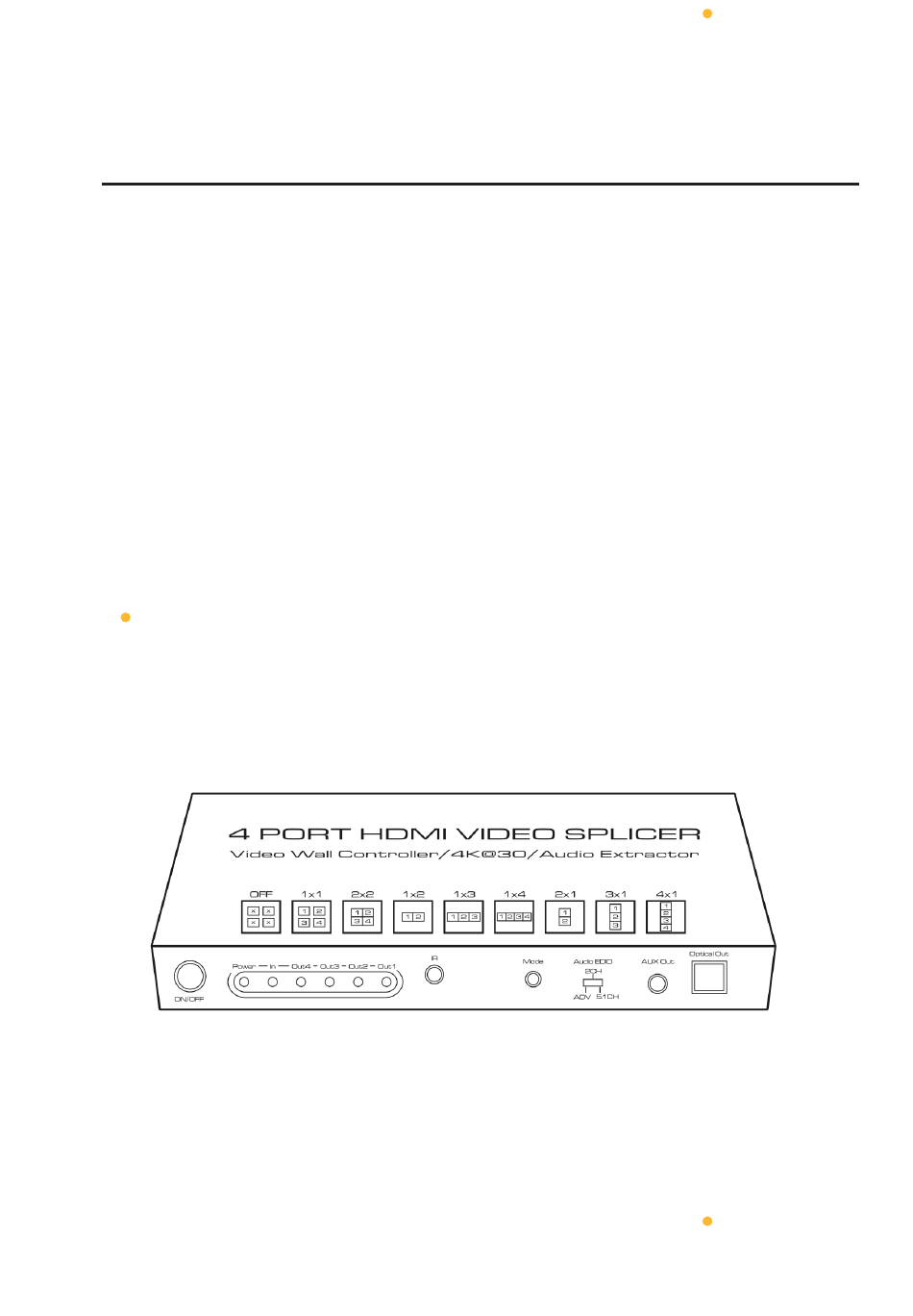

FEATURES OF THE INTERFACE: Picture 1.0 front panel view Power Optical digital switch audio output Power status indicator Analog audio output jack Input status indicators Audio EDID mode selection switch Output status indicators Display mode switch key IR receiving window Picture 1.1 rear panel view DC power supply... - Page 3 Picture 1.2 IR panel showing and function introduction Remote keys Panel keys Functional description Power standby on/off button Turn off display mode. In this mode all output ports have no signal output, but Optical, Coaxial and AUX can output sound. Split display mode.
-
Page 4: Connection And Operation
Connection and operation: Power amplifier 3.5mm audio cable Audio fiber cable HDSP0021M1 Power Adaptor Power Supply RS232 Uncrossed Cable HDMI Cable HDMI Cable HDMI Cable HDMI Cable HDMI Cable... -
Page 5: Matters Needing Attention
Matters needing attention: 1. Display mode description Mode Splicing diagram Mode Splicing diagram Mode Splicing diagram Note: When the display mode is spliced, the output ports not listed in the figure will be bypass output. 2. Function description of "Audio EDID mode switch” By selecting different EDID modes, the audio EDID information of the display device can be changed to make the signal source output the corresponding audio format. - Page 6 3. About OSD show This product supports OSD show, which is used to show the status when switching the display mode. The content of OSD is usually displayed in the upper left corner of the OUT1 output screen. When there is a switch operation, OSD will be showed for about 15 seconds and then automatically hidden. The contents of OSD include: output resolution, input channel and display mode.
-
Page 7: Specifications
0x21 0x43 0x4f 0x4d 0x23 Reads current state Display mode NONE e.g. !RCC# !RCE# !RC2# SPECIFICATIONS: Model No. AA6103 Model name 4 Port HDMI Video Splicer Input ports HDMI x1, DC x1, RS232 x1 Output ports HDMI x4, Optical x1, Coaxial x1, AUX x1...
