USER
MANUAL

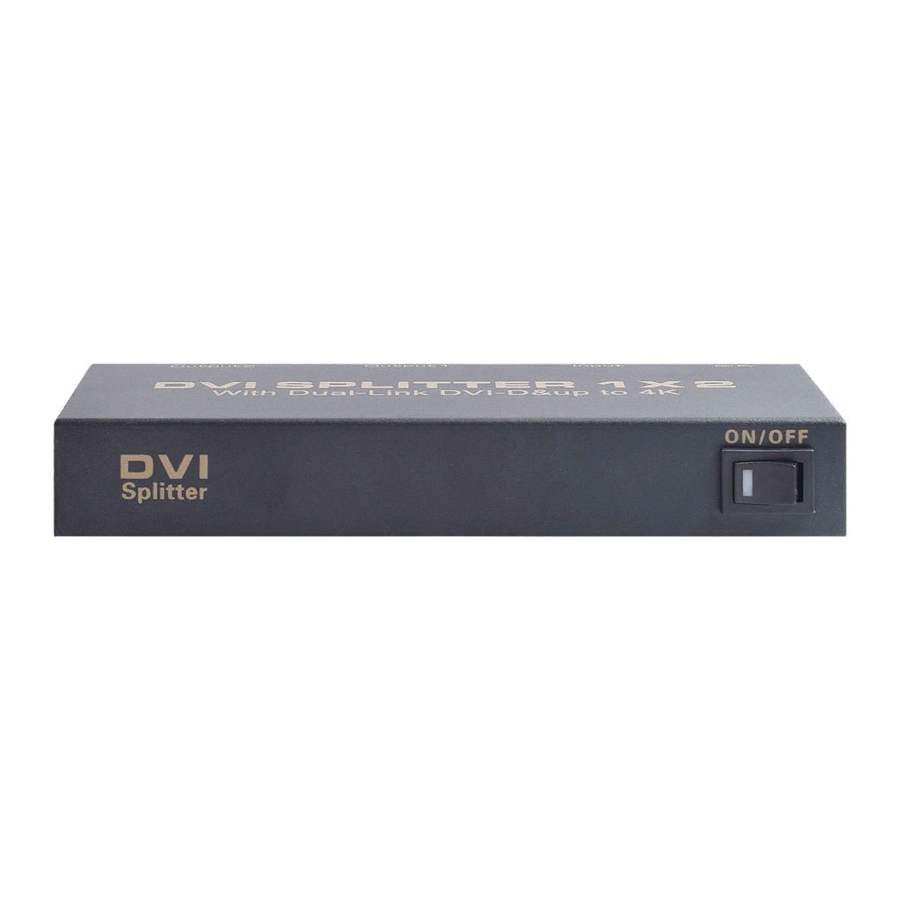

2 Port DVI SPLITTER
Dual link DVI-D & up to 4K
Model No：AA6180

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AA6180 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aus Electronics Direct AA6180

Summary of Contents for Aus Electronics Direct AA6180

  • Page 1 USER MANUAL 2 Port DVI SPLITTER Dual link DVI-D & up to 4K Model No：AA6180...
  • Page 2 REMARK Manufacturer does not make any commitment to update the information contained herein. Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
  • Page 3 PACKAGE CONTENTS: Main unit 1pcs 2. AC power adapter 1pcs 3. User manual 1pcs FEATURES OF THE INTERFACE: FIG.1.0 Rear Panel View DC5V: DC input jack (support DC5V~12V input) Input: Dual link DVI-D input port Output1~16: Dual link DVI-D output ports...
  • Page 4 OPERATIONG AND CONNECTION: 1. Connect one dual link DVI-D cable from a DVI signal source into the input port of splitter. 2. Connect dual link DVI-D cables from TV/Monitor into the DVI output ports of splitter. 3. If the resolution is higher than 1920X1080@60Hz, you must use a dual link DVI-D cables, the signal source and the display must be able to support this resolution.
  • Page 5 SPECIFICATIONS: DVI interface type …………………………..............Dual link DVI-D Single link input/output resolution ………………………….......up to 1920x1080@60Hz Dual link input/output resolution …………………………........up to 3840x2160@30Hz Support video color format …………………………..…..…………………….24bit/deep color 30bit,36bit Max signal bandwidth………………………………………………………….……………………..340MHz Max baud rate…………………….………………….………………….………………3.4Gbps Serial Link Input/Output TMDS signal ………….……………………………….……………….0.5~1.5Volts p-p(TTL) Input/Output DDC signal ……………………………………………..…………………….
  • Page 6 Notes: Pls use the machine as the instruction listed to keep the long use lifetime of the machine. 1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment. 2. All parts will be free from the strong shake, hit, fall. 3.
