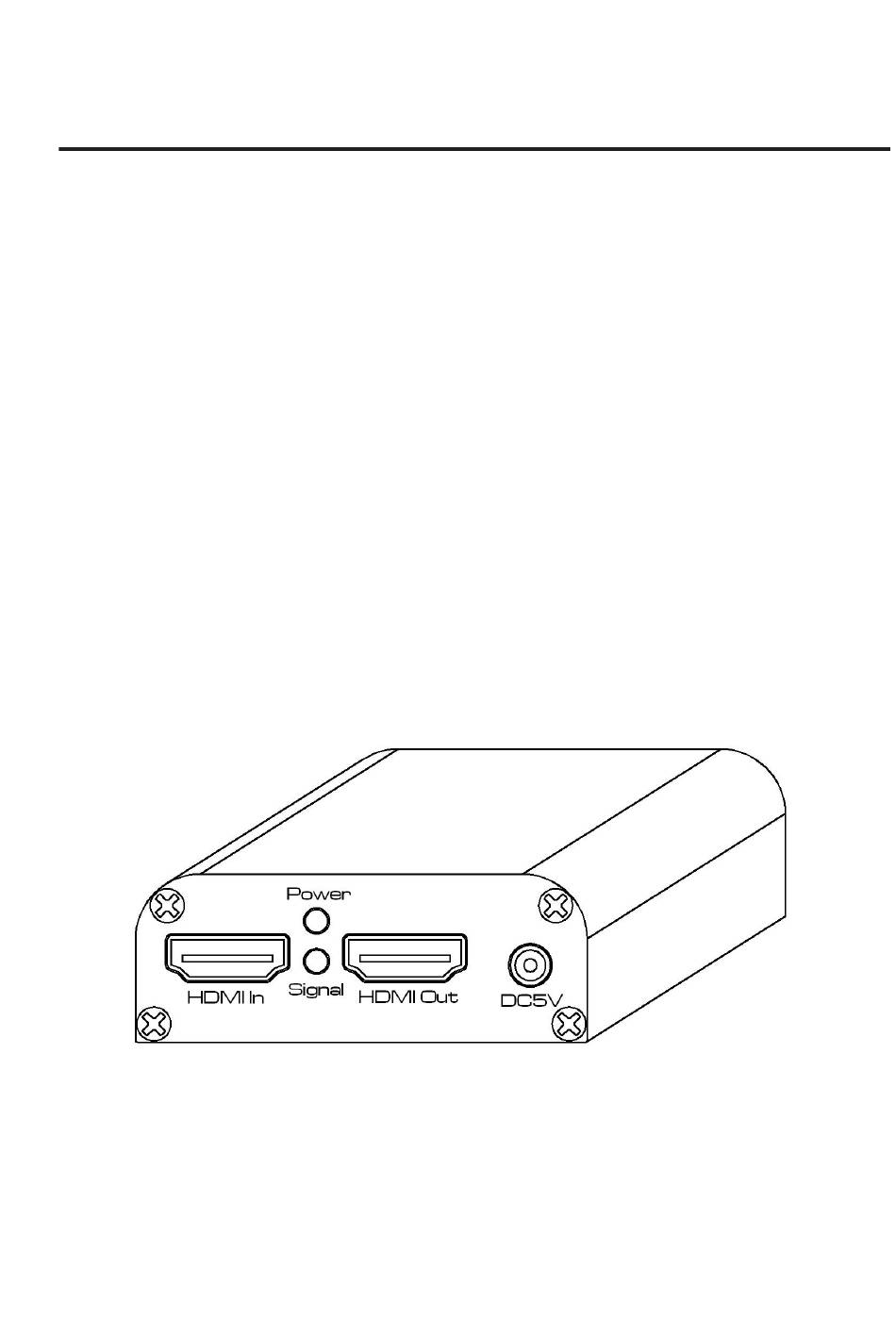

User Manual
4K HD-Video Capture
Model No. HDCN0053M1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDCN0053M1 and is the answer not in the manual?

Questions and answers

Related Manuals for Aus Electronics Direct HDCN0053M1

Summary of Contents for Aus Electronics Direct HDCN0053M1

  • Page 1 User Manual 4K HD-Video Capture Model No. HDCN0053M1...

  • Page 2: Features Of The Interface

    FEATURES OF THE INTERFACE: Picture 1.0 front panel showing HDMI Input port DC auxiliary power supply jack Connect to the source with one HDMI cable HDMI Output port Power: Power indicator Connect to display device/TV with one HDMI cable Signal: Signal Status indicator Picture 1.1 rear panel showing USB Device interface Headphone / headset jack...

  • Page 3: Connection And Operation

    Connection and Operation: 1. Connection diagram 3.5mm Headphone Audio device Microphone / Headset Video Player MIC Input USB Output Headphone Output / MIC Input HD camera HDMI Input HDMI Cable Capturer USB-DC3.5 power cable Portable Equipment USB Power Game Machine 2.

  • Page 4: Operation Illustration

    3. PC side hardware configuration requirements Hardware devices Recommended configuration PC i5-3400 or above NB i7-3537U 2.0GHZ or above Memory DDR3 4G or above PC NVIDIA GT630 or above Graphics card NB NVIDIA GT735M or above Hard disk 500G or above，SSD recommended 4.
  • Page 5 Ⅱ. Open the OBS software and click the 【 】 button in the "Sources" control panel to add a video capture device. Ⅲ. Select the capture device to preview the capture screen normally. Then click 【 】 HDSW0031M1...
  • Page 6 Drag the red border to adjust the capture screen size. Ⅳ. Ⅴ. Click 【 Settings 】 button in the lower right corner to enter the setting interface to set audio & video format, picture quality, output etc. After setting, click Start Recording button.

  • Page 7: Specifications

    SPECIFICATIONS: Model No. HDCN0053M1 Model name 4K HD-Video Capture Input ports HDMI2.0 x1,LINE IN x1,MIC x1,DC3.5 x1 Output ports HDMI2.0 x1,USB3.0 x1, Headset x1 HDMI video resolution 720P/1080P/2160P@24/30/50/60Hz Audio format LPCM2.0/32~192KHz/16/20/24Bit Input color space RGB、YUV444、YUV422、YUV420 Video output resolution 1920x1080@30Hz Max.
