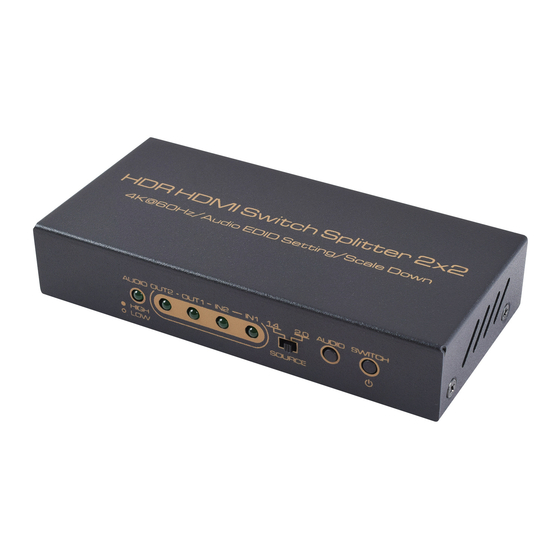

- Page 1 User Manual HDR HDMI Switch Splitter 2x2 Model No. AA6134...
- Page 2 FEATURES OF THE INTERFACE: Picture 1.0 front panel showing Input Switch & Power standby key Audio EDID Mode select key HDMI port version selection switch for source indicator Input1 status indicator Input2 status indicator Output1 status indicator Output2 status indicator Audio EDID Mode Picture 1.1 rear panel showing HDMI Output port2...
- Page 3 Connection and operation: HDMX0005 Power Adaptor HDMI Cable HDMI Cable HDMI Cable HDMI Cable DVD/BD/STB DVD/BD/STB TV/Displayer TV/Displayer Matters needing attention: Function description of "SWITCH " key: Press this key to rotate the input channel between 1/2 in normal working mode. Long press this button for more than 3 seconds to put the product into standby mode, and all indicator lights go out.
- Page 4 4K signals and another port to automatically scale down the resolution to 1080P. This feature is on by default, and both output ports support scale down. SPECIFICATIONS: Model No. AA6134 Model name HDR HDMI Switch Splitter 2x2 Input channel 2 port...
- Page 5 Storage humidity 5 ~95%RH(No Condensation) Size 111.5*53*21 (mm) Weight 153g Accessories Manual, Power Adaptor...
