Instruction Manual
Website:
www.perlesmith.com

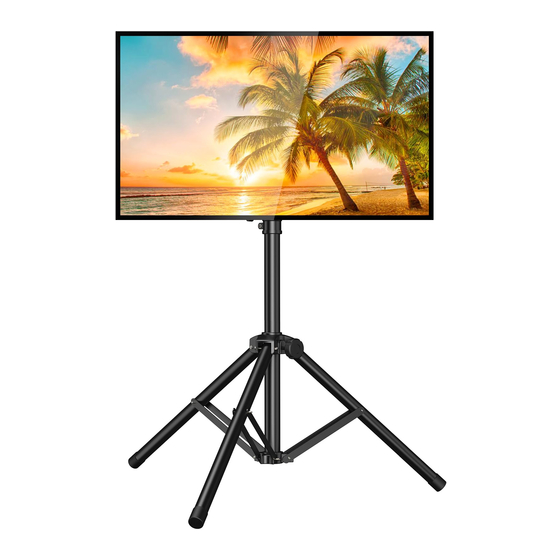

TV Tripod Stand
Model:PSTM2
Thank you for choosing this Perlesmith product! At Perlesmith
we strive to provide you with the best quality products and
services in the industry. Please share your experience of our
product with others at www.perlesmith.com/pages/reviews if
you are satisfied. Should you have any issues, please don't
hesitate to contact us.
Technical Support:
1-800-556-6806 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
supportus@perlesmith.com (US/CA/DE/UK/FR/IT/ES/AU)
V1.0
Advertisement
Related Manuals for Perlesmith PSTM2
Summary of Contents for Perlesmith PSTM2
- Page 1 Instruction Manual V1.0 Model:PSTM2 Thank you for choosing this Perlesmith product! At Perlesmith we strive to provide you with the best quality products and services in the industry. Please share your experience of our product with others at www.perlesmith.com/pages/reviews if you are satisfied.
- Page 2 If your TV VESA is greater than 600x400 mm/24x16 in. or less than VESA 100x100mm/4x4in., this TV tripod stand is NOT compatible. If this TV tripod stand is NOT compatible, please contact customer service at supportus@perlesmith.com to find a compatible product.
- Page 3 Head Assembly with TV Plate TV Bracket Pole Assembly Cable Tie Allen Key Wrench L(x3) M(x1) N(x1) M4x30mm Bolt M6x15mm Bolt M6x30mm Bolt A(x4) B(x4) C(x4) M8x15mm Bolt M8x50mm Bolt Washer with 3 Holes D(x4) E(x4) F(x4) φ8.5x18x5mm Spacer φ8.5x18x10mm Spacer G(x8) H(x8)
- Page 4 STEP 1 Adjust the Height of Pole Warning: After adjusting the pole to desired height, insert the latch [S] to the holes on the upper pole. Fasten the knob [K1] to hold upper pole. 1. Loosen the lower knob. 2. Adjust the distance between each feet to be 600mm/23.6in.
- Page 5 STEP 3 Secure the TV Brackets to Your TV (UNIVERSAL TV PLATE) A/B/D （If needed） (UNIVERSAL TV PLATE) A/C/E Alternate Spacer Setups...
- Page 6 STEP 4 Secure the TV onto the Plate Tighten the bolts to secure the TV brackets You may need assistance with this step.
- Page 7 STEP 5 Adjust Level and Tilt Angles Warning: Do not over-loosen the nuts or bolts to prevent the TV from falling down. Level Adjustment 1. Loosen the four nuts [N]. 2. Level your TV. 3. Retighten both nuts [N] to hold TV in place.
- Page 8 STEP 6 Manage the Cables Cable organizers [L] are used for cables management...
