V4.0

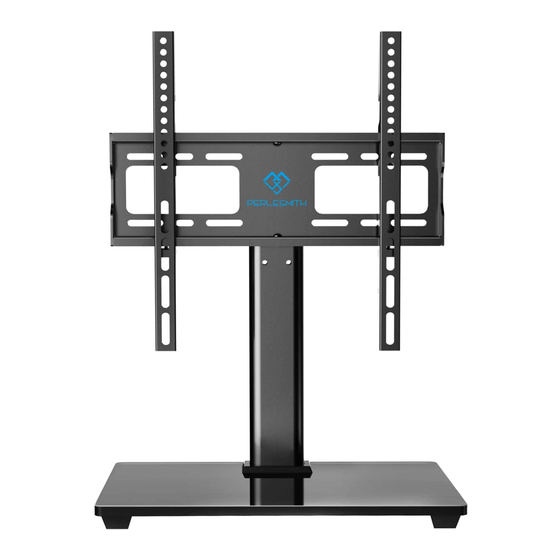

PSTVS09
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
on Amazon if you are satisfied? Should you have any issues, please don't
hesitate to contact us.
Telephone：800-5566-806 Mon-Fri 10am - 6pm (PST) (USA) (CAN)
Email：supportus@perlesmith.com (US/CA/DE/UK/FR/IT/ES/JP/AU)
Advertisement
Related Manuals for Perlesmith PSTVS09
Summary of Contents for Perlesmith PSTVS09
- Page 1 V4.0 PSTVS09 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? Should you have any issues, please don't hesitate to contact us.
-
Page 2: Unpacking Instructions
•If you do not understand the instructions or have any concerns or questions, please contact customer service at supportus@perlesmith.com or call a qualified installation contractor. •Do not use this product for any purpose or in any configuration not explicitly specified in this instruction. - Page 3 Put tempered glass(O) on the table. Put Gasket(R) and M6x25 Bolt(L) under tempered glass(O).Make sure the paperside of the gasket(R) face to the tempered glass(O). Turn Plastic Cover(Y) and Support Pillar(P) upside down under tempered glass(O) and then tighten the bolts(L) with the wrench(V). If you find the support pillar(P) is not in the correct direction, please see figure 1.3 below.
- Page 4 (J)Wire Clip Attaching wire clips(J) Step 3 Measure VESA and Check TV screws Measure the distance between the holes located at the back of your TV (these measures may form the shape of a square, or a rectangle) and check that these taken measures are within the VESA (*) range for this wall mount.
- Page 5 When attaching brackets to the flat screen, be careful not to over tighten screws and be sure that screws do not bottom out in the mounting holes. Too Short Too Long Correct Correct Step 4 Mounting the Monitor Bracket(N) to a TV (N)Monitor Bracket FLAT BACK TV (A)M4x30 Bolt...
- Page 6 Attaching TV to TV Plate(M) and Mananging the Wires (K) Safety lock Safety lock(K) screwdriver (Not included) monitor bracket(N) Insert the safety lock in the bottom of the bracket(N) and then tighten the screws in the safe lock(K). Adusting the Height of the TV Step 6 Height adjustable vertical bracket(N) first choice...
