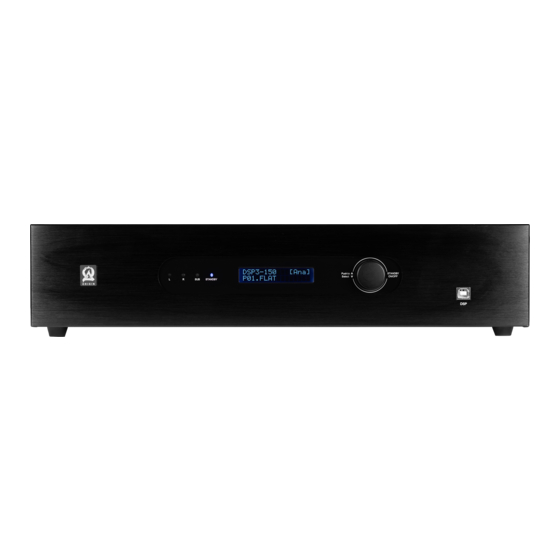

- Page 1 DSP3-150 DIGITAL AMPLIFIER Installation Manual DSP3-150...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS • Read these instructions • Keep these instructions • Heed all warnings • Follow all instructions • Do not use apparatus near water • Clean only with dry cloth • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions •...
- Page 3 • Unplug this apparatus during lightning storms or when unused for period of times. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus had been damaged, liquid had been damaged in any way, such as power supply cord or plug id damaged, liquid had been dropped or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
- Page 4 Table of Contents Introduction Specifications What’s in the Box Amplifier Operation Troubleshooting Warranty Return Process...
- Page 5 DSP3 -150 AMPLIFIER INSTALLATION USER MANUAL Thank you for purchasing the DSP3 Series amplifier. At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ products are designed to have excellent sound quality, longevity, and a simple installation process.
- Page 6 DSP3 -150 AMPLIFIER INSTALLATION USER MANUAL Specifications MODEL DSP3-150 PART AMPD03X 1500 # of Channels 3 Powered Out (L/R/S) Analog Input 2x RCA A/B Unbalanced Digital Input 1x Optical 2x RCA A/B Unbalanced Analog output 17 x 3 1/ 2 x 14”(433 x 88 x 357mm) (Without mounts) Dimensions 19 x 3 1/ 2 x 14”...
- Page 7 DSP3 -150 AMPLIFIER INSTALLATION USER MANUAL The gauge of wire used can have an impact on the performance of your speakers. Use a multi-stranded wiring designed for amplifier to speaker connections. Which gauge to select depends on the length of wire to be used on any particular speaker. The longer your run is, the larger your wire size must be.
- Page 8 Please note that the 300W subwoofer channel uses a summed stereo signal. Starting Out The knob of the DSP3-150 Amplifier can both be pressed and turned left and right. After the initial boot-up sequence, the knob can be used to adjust input volume up or down via rotation, and a single press will enter the main menu mode.
- Page 9 DSP3 -150 AMPLIFIER INSTALLATION USER MANUAL Main Menu There are seven sub-menus, each containing a unique function. Pressing the knob will enter each sub-menu. To leave a sub-menu, make your selection and press the knob once again. The leave the main menu, rotate the knob until the screen reads, “7.
- Page 10 DSP3 -150 AMPLIFIER INSTALLATION USER MANUAL Adjust Auto-Off Timing Rotate the knob to adjust the auto-off timer by using five-minute increments Press the knob to save the selected setting. Allow for External Triggers Rotate the knob to turn external triggers on and off. Press the knob to save the selected setting.
- Page 11 DSP3 -150 AMPLIFIER INSTALLATION USER MANUAL View Current Soft ware Version Press the knob to exit after viewing. Exit Menu Press the knob to exit this menu.
- Page 12 DSP3 -150 AMPLIFIER INSTALLATION USER MANUAL Troubleshooting If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with an MP3 player to see if you get sound.
- Page 13 If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process.
- Page 14 If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original.
- Page 15 Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product.
- Page 16 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2019 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
