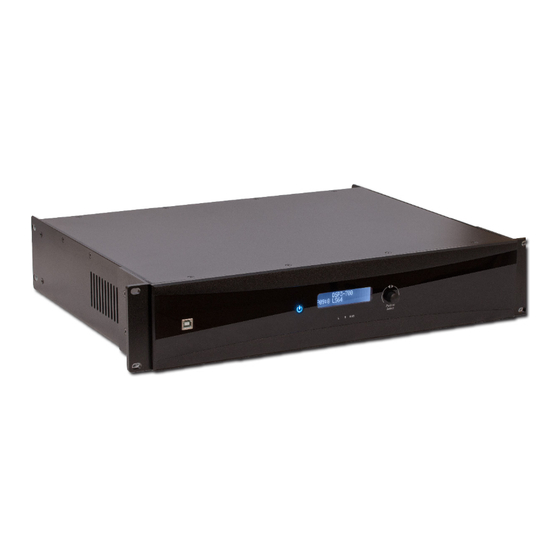

- Page 1 DSP3-700 Amplifier Installation Manual DSP3-700...
-
Page 2: Table Of Contents
Table of Contents Introduction Amplifier Presets Specifications What’s Included Wire Recommendations About the DSP3-700 Startup Loading a DSP preset Adjusting the Volume Troubleshooting Technical Assistance Warranty Return Process... -
Page 3: Introduction
DSP3-700 AMPLIFIER INSTALLATION USER MANUAL Introduction Thank you for purchasing the DSP3 Series amplifier. At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ products are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Amplifier Presets
DSP3-700 AMPLIFIER INSTALLATION USER MANUAL Amplifier Presets SUB MODEL SAT MODEL PRESET NUMBER PRESET NAME SYSTEM DESCRIPTION NUMBER NUMBER All DSP Bypassed, All inputs DSP Off None None and outputs linked, three mono channels All three channels have the same... - Page 5 DSP3-700 AMPLIFIER INSTALLATION USER MANUAL Amplifier Presets SUB MODEL SAT MODEL PRESET NUMBER PRESET NAME SYSTEM DESCRIPTION NUMBER NUMBER All three channels tuned for 12 SAT0 0SUB12 None OSUB12 (no satellites) Sub channel tuned for OSUB10 OSUB10 P LS44 LS44...
-
Page 6: Specifications
DSP3-700 AMPLIFIER INSTALLATION USER MANUAL Power & Amplifier Sections Number of Channels 3 Powered Out (L/R/S) 700 Watts / Channel Dynamic Power All Channels Driven into 4 ohm / 70 V (6dB Crest Factor) 500 Watts / Channel Driven into 8 ohm x 3 Dynamic Power (Peak) 1 kW / Channel x 3 Class D - Self-Oscillating PWM Topology;... -
Page 7: What's Included
DSP3-700 AMPLIFIER INSTALLATION USER MANUAL What’s Included Wire Recommendations For this setup, use a direct burial, multi-stranded wire designed for amplifier to speakers connections. 70V systems greatly minimize the effect of speaker wire (resistance) which allows you to use a lighter gauge wire. Refer to this chart to select the minimum wire gauge ---Heavier gauge wire is always OK. -
Page 8: About The Dsp3-700
70/100V constant voltage lines. All setup parameters for input/output processes and DSP features are accessible by using the remote PC software. Each DSP3-700 comes preloaded with up to 64 DSP presets to optimize it for use with all of Origin Acoustics’ speakers and subwoofers assuring peak performance. - Page 9 DSP3-700 AMPLIFIER INSTALLATION USER MANUAL In order to access the menu, press the dial. Rotate the dial to select either “Load Program,” “Change Volume” or “Exit Menu”...
-
Page 10: Loading A Dsp Preset
Turn the dial to select your desired preset to match your Origin Acoustics Speakers. If you are not sure which preset to use, refer to the “Amplifier Preset” section of this manual. -
Page 11: Adjusting The Volume
DSP3-700 AMPLIFIER INSTALLATION USER MANUAL Adjusting the Volume To change the volume, select the “Change Volume” page from the main page and press the dial to select. Once selected the volume level will appear on the display. Use the dial to change the volume level (from -60dB to +12dB) and press the dial once again to confirm the volume level selection. -
Page 12: Troubleshooting
DSP3-700 AMPLIFIER INSTALLATION USER MANUAL Troubleshooting If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with an MP3 player to see if you get sound. -
Page 13: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process. - Page 14 If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original.
-
Page 15: Warranty
Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product. - Page 16 • 844-674-4461 ©2017 Origin Acoustics...
