Raspberry PI Chassis Mount for
Prusa I3 MK3S Printer
Steve M Clarke
Version 20200724

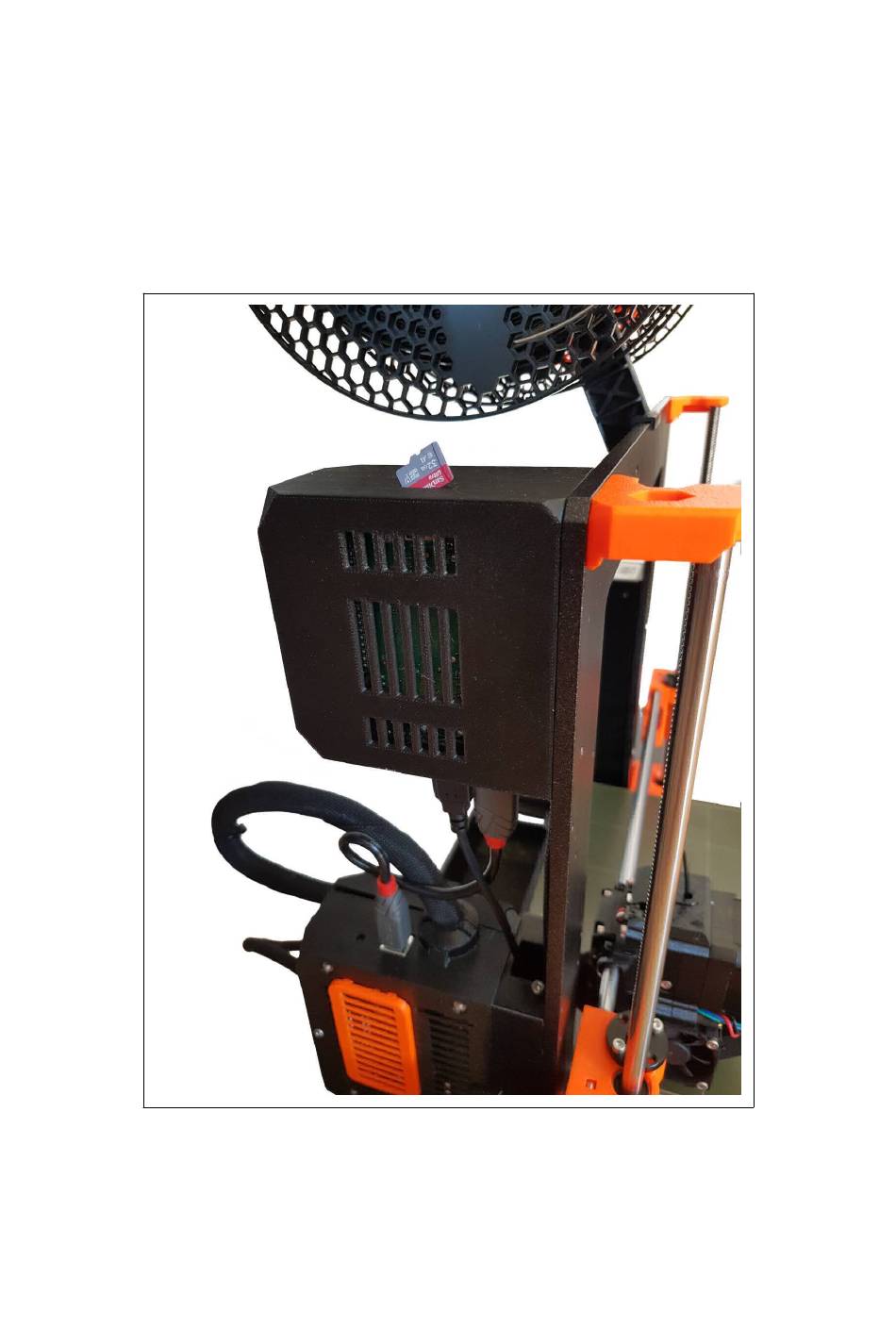

The Raspberry Pi box is fitted onto the top of the frame at the rear, above the Einsy
control box. It is secured by three bolts, two of which replace the two M3 x 12 bolts
holding the top of the left hand Z-axis. The Pi is powered from the 24V supply (that
goes to the Einsy board) via a DC / DC converter. Conduits are provided to allow
cables to pass behind the Einsy chassis case.
- 1 -
