Carson HookUpz IS-200 Manual

HookUpz

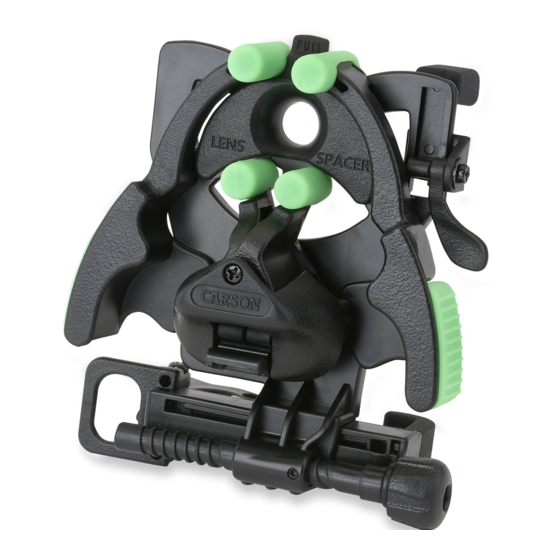

Smartphone Optic Adapter
Congratulations on selecting your new HookUpz Smartphone Optic Adapter! In order to
achieve optimum performance, please follow instructions for proper use and care.
SMARTPHONE OPTIC ADAPTER DIAGRAM
FOR OPTIC:

INSERTING PHONE:

1. Rotate to unlock top clamp.
Fig. 1
4. Squeeze and pull right clamp
past edge of phone.
Fig. 4
2.0
TM
FOR PHONE:
2. Slide top clamp into
uppermost position.
Fig. 2
5. Release right clamp to secure
phone.
Fig. 5
PRODUCT SPECIFICATION:
Weight: 0.3 lbs
4.3" x 2.3" x 4.5"
Dimensions:
3. Insert phone into left clamp.
Fig. 3
6. Ensure phone is flat as
possible to adapter.
Fig. 6
IS-200
1
