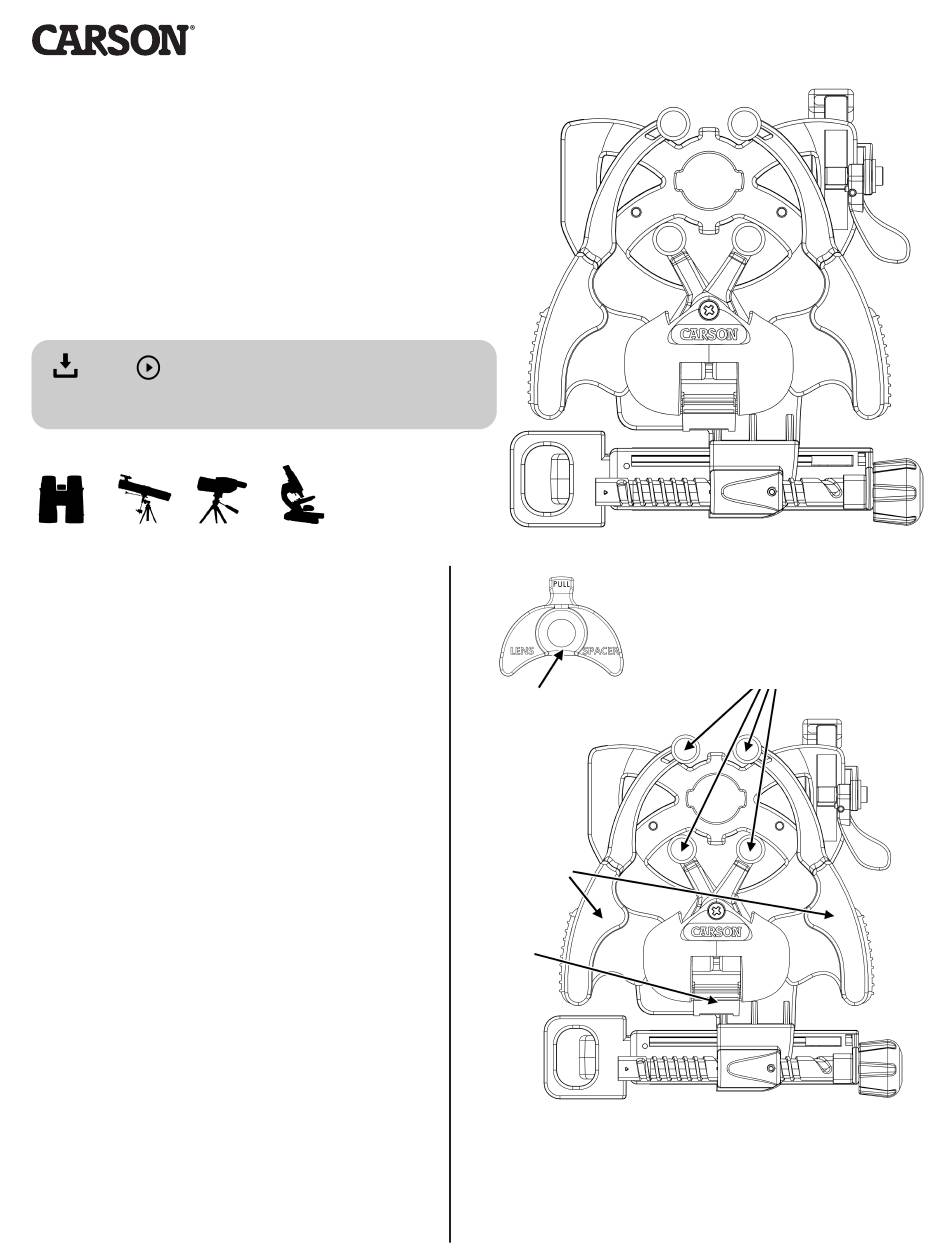

HookUpz
SMARTPHONE OPTICS ADAPTER
Instructions for use
PDF /
VIDEO: www.carson.com/hookupz2
English / Français / Español / Deutsch / 日本語
Table of Contents
Optic Side Diagram..........................
Phone Side Diagram........................
Inserting Phone.................................
Align & Lock........................................
Attaching to Optic............................
Frequently Asked Questions........
Tips and Tricks...................................
Compatibility.....................................
Customer Service.............................
Carson Optical
2070 5th Avenue
Ronkonkoma, NY 11779
www.carson.com
Tel: 631-963-5000 Fax: 631-427-6749
2.0
TM
1
2
2-3
3-4
4-5
6-8
8
8
9
9
info@carson.com
Lens
Spacer*
Optic Clamp
Arms
Optic
Lock
* See Frequently Asked Question 1 on page 11.
Optic
Clamps
Optic Side
IS-200
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carson HookUpz 2.0
Summary of Contents for Carson HookUpz 2.0
-
Page 1: Table Of Contents
IS-200 HookUpz SMARTPHONE OPTICS ADAPTER Instructions for use PDF / VIDEO: www.carson.com/hookupz2 English / Français / Español / Deutsch / 日本語 Table of Contents Optic Optic Side Diagram......Clamps Phone Side Diagram......Lens Inserting Phone......... Spacer* Align & Lock........Attaching to Optic...... -
Page 2: Phone Side Diagram
Phone Side Clamp Camera Cutout Clamp Lock Alignment Screw Left Clamp Right Clamp Inserting Phone Fig.2 Fig.3 Fig.1 UNLOCK Slide top clamp into Rotate to unlock top clamp. Insert phone into left clamp. uppermost position. -
Page 3: Align & Lock
Inserting Phone (cont.) Fig.4 Fig.5 Fig.6 Squeeze and pull right Release right clamp to Ensure phone is flat as possible to clamp past edge of phone. secure phone. adapter. Align & Lock Fig.7 Fig.8 Fig.9 Slide phone vertically until Turn alignment screw until Slide top clamp down camera is roughly aligned with camera is centered in camera... -
Page 4: Attaching To Optic
Align & Lock (cont.) Fig.10 Fig.11 Fig.12 LOCK While holding top clamp tight Figure 11 shows a properly Before attaching to optic, to phone, rotate to lock. aligned camera. If needed, use make sure your optic is alignment screw and top clamp focused. - Page 5 Attaching to Optic (cont.) Fig.16 Fig.17 Fig.18 LOCK Ensure adapter is Phone can be While attached to eyepiece, push flush to the eyepiece positioned in either optic lock down. This is required of your optic. portrait or landscape for use with smaller eyepieces, and mode.
-
Page 6: Frequently Asked Questions
Frequently Asked Questions: Q1: What is the lens spacer for? OR Even if I pinch to zoom on my phone, my image is still a small circle? A1: Depending on the combination of your phone and optic, to achieve the best image you may need to use the included lens spacer, especially for optics with small eyepieces (microscope, telescopes, etc.) or eyepieces with long eye relief. - Page 7 Q4: My phone or optic doesn’t seem to work with adapter, how do I know which ones will work? A4: Please see page 9 for compatibility guide. Q5: Can I use this on my riflescope? A5: No, it is not recommend because of the long spacing required between the eyepiece of a riflescope and your eye so that the image is very small on your phone screen.
-
Page 8: Tips And Tricks
Q10: I have a large eyepiece, but it seems like it won’t fit or it’s too tight to get on, what do I do? A10: For eyepieces at the maximum range (58 – 62 mm), the adapter must be opened to its maximum, and then some pressure must be used to push the adapter over the eyepiece. -
Page 9: Compatibility
We will be happy to help you with any problems you may experience with your HookUpz Pro Smartphone Optics Adapter. In the U.S.A. In the U.K. In the E.U. Phone: +44 (0) 1938 557440 Phone: 631-963-5000 Phone: +44 (0) 1938 557440 Email: info@carson.com Email: uksupport@carson.com Email: eusupport@carson.com For warranty information, visit www.carson.com/warranty...
