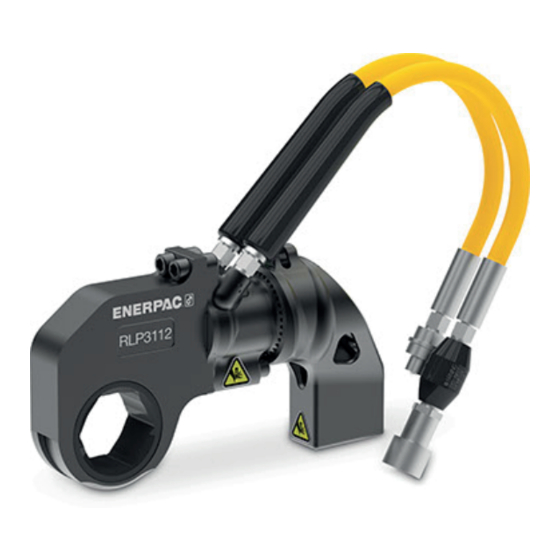

Enerpac RSL1500 Instruction Sheet

Rsl torque wrench

Hide thumbs Also See for RSL1500:

Instruction sheet (8 pages)

Instruction manual (44 pages)

Table Of Contents

Quick Links

Download this manual

L4346

Rev. C 09/19

ENGLISH (EN)

RSL

Torque

Wrench

RSL1500

RSL3000

RSL5000

RSL8000

RSL11000

RSL19000

RSL28000

Instruction Sheet

Table of Contents

Need help?

Do you have a question about the RSL1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Enerpac RSL1500

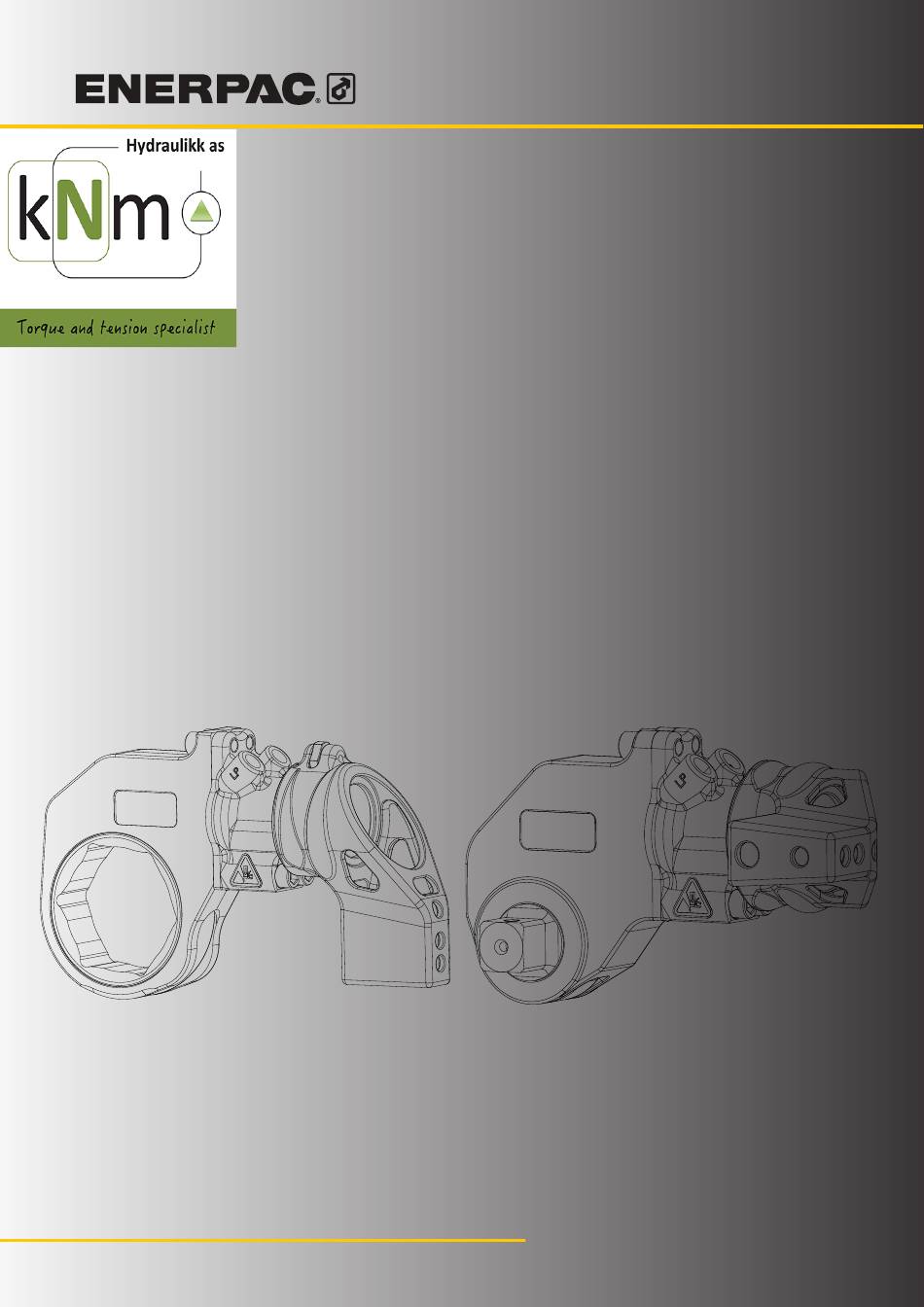

Page 1 L4346 Rev. C 09/19 Torque Wrench RSL1500 RSL3000 RSL5000 RSL8000 RSL11000 RSL19000 RSL28000 Instruction Sheet ENGLISH (EN)
Page 2: Table Of Contents
Ga voor de overige talen naar www.enerpac.com. For alle andre språk henviser vi til www.enerpac.com. Inne wersje językowe można znaleźć na stronie www.enerpac.com. Para outros idiomas consulte www.enerpac.com. Информацию на других языках вы найдете на сайте www.enerpac.com. För andra språk, besök www.enerpac.com. 如需其他语言，请前往 www.enerpac.com.
Page 3: Introduction
The Enerpac RSL torque wrench is designed for personal injury as well as damage to the wrench controlled tightening and loosening of fasteners and/or damage to other property. Enerpac cannot in industrial bolting applications. The RSL torque...
Page 4 RSL Torque Wrench • Be certain that all hose couplings are fully 2.1 Safety Precautions - RSL Torque Wrenches connected at both the pump and wrench ends before applying any hydraulic pressure. If the couplings are not fully connected, oil flow will be Failure to observe and comply with the following blocked, and the drive unit could be subjected precautions could result in death or serious...
Page 5 • Never carry the wrench by its hoses. • Always carry the wrench by its housing. The • Always use Enerpac pumps and hoses. positioning handle is designed only as an aid to • Always use Enerpac replacement parts.
Page 6: Wrench Descripton And Terminology
RSL Torque Wrench 3 Wrench Description and Terminology • Do not modify any equipment or accessories. Description • Contact Enerpac for special applications or 3.1.1 RSL square drive and hex tools are offered in seven standard models: modifications. • Unauthorized modifications may cause injury TABLE 3.1-1...
Page 7 RSL Torque Wrench 3.2.13 RSL Features and Accessories [continued]: 3.2.12 RSL Features and Accessories: d. Reaction Arm a. Pump b. Torque Wrench Drive e. Hexagon Cassette (RLPxxxxx) Hex Insert Low Pressure Retract Stroke High Pressure Advance Stroke f. Hexagon Torque Wrench Set c.
Page 8: Operation Instruction
RSL Torque Wrench 4 Operation Instructions 3.2.12 RSL Features and Accessories [continued]: Flange Assembly and Disassembly g. Hex Bit 4.1.1 Perform hazard analysis before starting work. 4.1.2 Ensure fastener contact surfaces flanges have been properly cleaned and examined. a. Flanges: Surface finish, scratches, nicks, burrs, flatness.
Page 9 4.2.3 TIGHTENING METHOD 3 – Stud Elongation Tightening a. Determine torque value for proper elongation. Contact Enerpac Customer Service b. 1st, 2nd, and 3rd Stage Cross-Pattern b. Follow steps in TIGHTENING METHOD Sequence c. After 4th stage, if studs are: Short –...
Page 10 Set With Reaction Arm pump pressure and increase pump and tool life: a. Apply Enerpac Hydraulic oil to nuts and wait for 5 minutes (minimum). b. Heat fastener for hard applications with severe corrosion, high torque requirements, etc.:...
Page 11 RSL Torque Wrench Hexagon Torque Wrench Set Reaction Fig 4.4-5 Hexagon Torque Wrench Set Reaction (No Reaction Arm) [continued] (Tighten Position for RH Threads) 4.4.8 Fig. 4.4-5 (top) shows a common reaction method where RSL reacts on torque wrench drive housing’s flat surface. Note: Use reaction arm where possible to improve tool life.
Page 12 Improper reaction and/or incorrect • If you have any concerns, please contact Enerpac socket size make tool, socket, or nut engineering department. vulnerable to fracture. b. Sq. dr. tool must use reaction arm.
Page 13 RSL Torque Wrench Square Drive Tool Reaction [continued] Fig 4.5-1 Correct Sq. Dr. Torque Wrench Set Fig 4.5-3 Incorrect Sq. Dr. Torque Wrench Set Reaction Reaction 90° Arrow points to required gap. Fig 4.5-2 Correct Reaction (RH Threads - Sq. Dr. Tool) Do Not React Sq.
Page 14 RSL Torque Wrench Tool Operation Instructions 4.6.4 Assemble torque wrench drive and wrench cassette. 4.6.1 Select proper tool and accessories (See a. Assemble hexagon or sq. dr. cassette Section 3): per Fig. 4.6-1. a. Torque rating b. To assemble: b. RSQxxxxxST - Square drive cassette Must move pawl driver to retract and torque wrench drive position shown.
Page 15 RSL Torque Wrench Tool Operation Instructions [continued] 4.6.6 (As needed - RSL1500 thru RSL11000) Reaction arm must be locked to Assemble reaction arm assembly to torque torque wrench drive before using tool. wrench drive (Refer to Repair Part Sheet Operator’s hazard analysis may (RPS) for location).
Page 16 RSL Torque Wrench 4.6.11 Purge all air from tool and hoses before Tool Operation Instructions [continued] returning to service. Perform a risk 4.6.10 Assemble twin hose to pump (1st) and tool assessment, mitigate hazards, and follow (2nd) before setting tool on application. all appropriate safety procedures during Fig.
Page 17 RSL Torque Wrench Tool Operation Instructions [continued] b. During this process operator must ensure reaction arm is in constant contact with 4.6.14 Reaction and tool leak check: reaction point. This prevents creation of a. Check that reaction arm is in firm a pinch point between tool and reaction contact with stationary object (e.g.
Page 18: Warranty, Maintenance And Assembly
Depends work environment Enerpac, or a Enerpac approved service increase frequency if tool is exposed to center. sand or other abrasive material. b. Increase frequency with high operating 5.1.3 These Items Void Tool Warranty: pressure.
Page 19 (RSL8000 has a socket and Disassembly head cap screw, which is tightened to 40 in*lb and use Loctite 243). • Order all replacement fasteners from Enerpac. • Use Enerpac hydraulic oil. TABLE 5.3-1 • Assembly notes for torque wrench drive: FRONT CAP TORQUE a.
Page 20 RSL Torque Wrench 5.4.2 Check housing and all internal parts for Torque Wrench Drive Assembly, Testing, cracks, chips, deformation, and wear. and Disassembly [continued] a. Immediately replace parts which have 5.3.5 Assemble: Model RSL28000 cracks, chips, deformation, or excessive a. Install seals and wear rings into end wear.
Page 21: Troubleshooting
RSL Torque Wrench 6 Troubleshooting Symptom Cause Remedy Hydraulic fluid leaks from torque Torque wrench drive seals are Replace torque wrench drive wrench drive. worn. seals. 1. Quick connect couplings are: • Torque wrench drive rod does 1. Clean and properly connect a.
Page 22 RSL Torque Wrench 6.1 General Hydraulic Trouble Shooting Note: 1. When an even number of hose assemblies are 1. When an even number of hose assemblies are Pump connected together, coupler configuration connected together, coupler con guration Pump Valve Valve (male vs.
Page 23: Technical Specifications
RSL Torque Wrench 7 Technical Specifications 7.1 Hexagon Torque Wrench Set Capacities, Dimensions and Additional Product Data RLP1 RLP3 RLP5 RLP8 Hexagon size range of inch 7 /8 3 /8 5 /16 15 /16 11 /16 1 /8 3 /8 1 /8 available cassettes 33 - 75...
Page 24 (see Fig. 7.1-1 for locations of dimensions AF, R, L, H and W) Size AF Hex Weight Model size inch inch inch inch inch (Max) RLP1 (to be used with Torque Wrench Drive RSL1500) 7 /8 RLP1014 0.79 6.00 1.25 4.33 RLP1101 0.95 6.05 1.25 4.50...
Page 25 RSL Torque Wrench 7.2.1 Imperial System Table - RSL Hexagon Cassette [continued] (see Fig. 7.1-1 for locations of dimensions AF, R, L, H and W) Size AF Hex Weight Model size inch inch inch inch inch (Max) RLP5 (to be used with Torque Wrench Drive RSL5000) RLP5111 1.61 9.08...
Page 26 RSL Torque Wrench 7.2.1 Imperial System Table - RSL Hexagon Cassette [continued] (see Fig. 7.1-1 for locations of dimensions AF, R, L, H and W) Size AF Hex Weight Model size inch inch inch inch inch (Max) RLP11 (to be used with Torque Wrench Drive RSL11000) RLP11303 2.60 11.71...
Page 27 RSL Torque Wrench 7.2.1 Imperial System Table - RSL Hexagon Cassette [continued] (see Fig. 7.1-1 for locations of dimensions AF, R, L, H and W) Size AF Hex Weight Model size inch inch inch inch inch (Max) RLP19 (to be used with Torque Wrench Drive RSL19000) RLP19115M 3.44 13.71...
Page 28 7.2.2 Metric System Table - RSL Hexagon Cassette (see Fig. 7.1-1 for locations of dimensions AF, R, L, H and W) Size AF Hex Weight Model size mm (Max) RLP1 (to be used with Torque Wrench Drive RSL1500) RLP1014 – 20.1 152.4 31.8 110.0 RLP1101 24.1...
Page 29 RSL Torque Wrench 7.2.2 Metric System Table - RSL Hexagon Cassette [continued] (see Fig. 7.1-1 for locations of dimensions AF, R, L, H and W) Size AF Hex Weight Model size mm (Max) RLP5 (to be used with Torque Wrench Drive RSL5000) RLP5111 –...
Page 30 RSL Torque Wrench 7.2.2 Metric System Table - RSL Hexagon Cassette [continued] (see Fig. 7.1-1 for locations of dimensions AF, R, L, H and W) Size AF Hex Weight Model size mm (Max) RLP11 (to be used with Torque Wrench Drive RSL11000) RLP11303 –...
Page 31 RSL Torque Wrench 7.2.2 Metric System Table - RSL Hexagon Cassette [continued] (see Fig. 7.1-1 for locations of dimensions AF, R, L, H and W) Size AF Hex Weight Model size mm (Max) RLP19 (to be used with Torque Wrench Drive RSL19000) RLP19115M 87.4 348.2...
Page 32 RSL Torque Wrench 7.3 BOP Hexagon Torque Wrench Set Capacities, Dimensions and Additional Product Data RLP1 RLP3 RLP5 RLP8 Hexagon size range of inch 2 - 2 1 /4 15 /16 3 /4 1 /8 3 /16 3 /16 available cassettes 55 - 80 32 - 50 50 - 75...
Page 33 RSL Torque Wrench 7.4. Additional BOP Hexagon Cassette Specifications 7.4.1 Imperial System Table - RSL BOP Hexagon Cassette (see Fig. 7.3-1 for locations of dimensions AF, R, L, H, W and W1) Size AF Hex (W1) Weight Model size mm RLP1 RLP1104SL 1.03...
Page 34 RSL Torque Wrench 7.5 Square Drive Torque Wrench Set Dimensions and Specifications 7.5.1 Imperial System Table - RSL Square Drive Cassette (see Fig. 7.5-1 for locations of dimensions W, W1, H, L, L1 and R) Weight Square Square Torque Torque Drive Reaction Sq Dr...
Page 35 RSL Torque Wrench 7.5.2 Metric System Table - RSL Square Drive Cassette (see Fig. 7.5-1 for locations of dimensions W, W1, H, L, L1 and R) Weight Square Square Torque Torque Drive Reaction Sq Dr Drive Wrench Output Size Cassette Model Drive RSQ1500ST...
Page 36 7.6 ERA-Series, Extended Reaction Arms Dimensions and Specifications (see Fig. 7.6-1 for locations of dimensions A, B, C, D, and E) For Torque inch Wrench Model Number Weight Model Size ERA15114 1.98 ERA15228 3.97 RSL1500 ERA15342 10.9 5.95 ERA15456 11.3 7.94 ERA15570 11.3 13.3 9.92 ERA30114 10.1...
Page 37 (see Fig. 7.7-1 for locations of dimensions A, B, and C) For Torque inch Wrench Model Number Weight Weight Model Size ERT152 1.98 ERT156 10.2 3.53 RSL1500 ERT159 13.2 5.51 ERT1512 16.2 12.0 7.50 ERT1524 28.2 24.0 14.77 ERT3012 16.9 12.0...
Page 38 RSL Torque Wrench 7.8 Torque Settings 7.8.1 Imperial System Pressure/Torque Table Pump Pressure (psi) Torque (Ft.lbs) RSL1500 RSL3000 RSL5000 RSL8000 RSL11000 RSL19000 RSL28000 1000 1957 2298 1200 1188 2332 2869 1400 1043 1414 2708 3440 1600 1201 1641 3083 4012...
Page 39 RSL Torque Wrench 7.8.2 Metric System Pressure/Torque Table Pump Pressure (bar) Torque (N*m) RSL1500 RSL3000 RSL5000 RSL8000 RSL11000 RSL19000 RSL28000 1303 2653 3116 1199 1611 3162 3890 1414 1917 3672 4664 1058 1628 2225 4180 5439 1204 1844 2531 4688...
Page 40: Ordering Replacement Parts
RSL Torque Wrench 8 Ordering Replacement Parts For replacement parts information, refer to the Enerpac RPS, for your wrench model. RPS' are available on the internet at www.enerpac.com. Have the following information ready when ordering replacement parts: • Wrench model, serial numbers, and date code (for both torque drive unit and cassette).
Page 41 RSL Torque Wrench NOTES _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________...
Page 42 RSL Torque Wrench NOTES _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________...
Page 43 RSL Torque Wrench NOTES _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________...
