RJR110 Ultra320 Install Guide

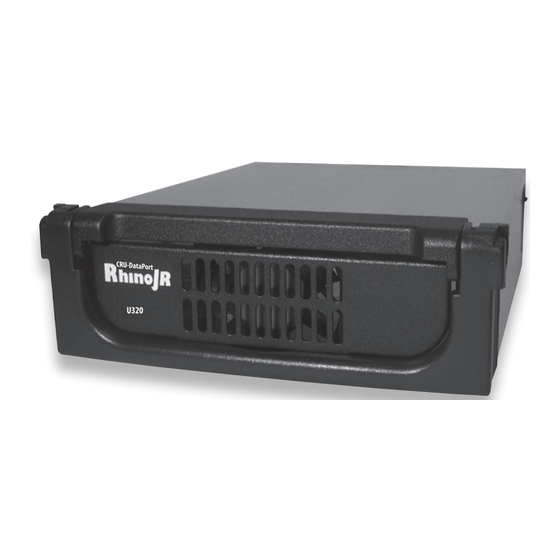

Removable SCSI Ultra320 Drive Enclosures
Note: For applications requiring frequent drive swapping or
replacement, CRU-DataPort recommends the rugged DataPort or
Data Express removable enclosures for high insertion environments.
Power
LED
Drive
Activity
LED

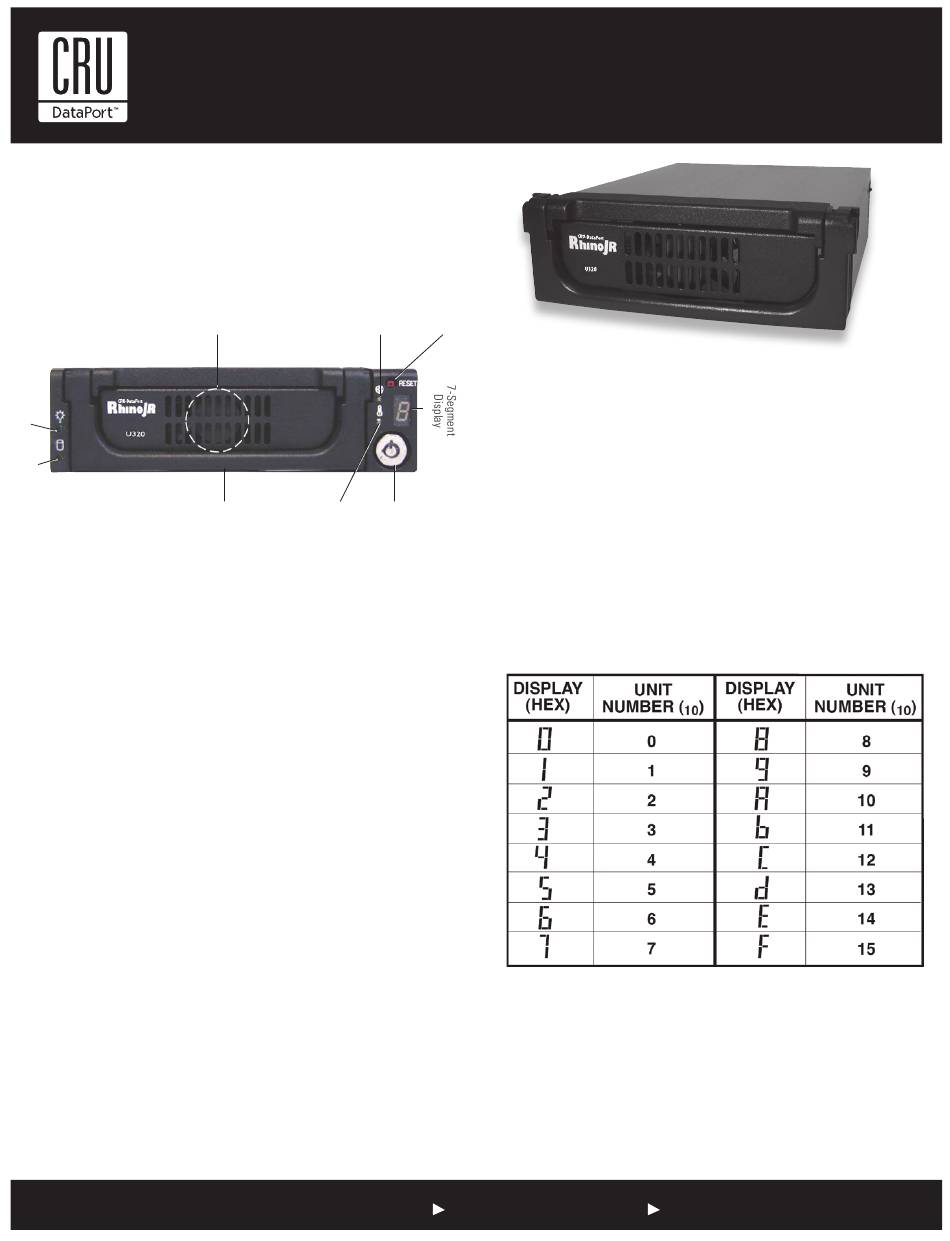

Figure 1: Front Panel
Front Panel
Unit ID Number Indicator: This LED displays the SCSI ID of the
SCSI drive carrier.
Key Lock/Drive Power Switch: The keylock/drive power
switch performs three functions. The key switch assures proper
seating of the drive carrier within the receiving frame, turns
power to the drive carrier ON and OFF, and prevents unauthorized
removal or installation of the carrier. For the computer to access
data on the disk drive, the key must be turned counterclockwise
to the locked position.
LEDs:
Power - Steady glow indicates power ON.
Drive Activity- Steady glow indicates that drive is inserted
and ready for access. Flashing indicates drive is being ac-
cessed.
Fan - Green indicates normal fan operation. Red indicates fan failure.
OverTemp - Flashing red indicates overtemperature condi-
tions (default is 60° C). Audible alarm will also sound.
Reset Switch: This will reset OverTemp LED back to Green, as
well as turn off audible alarm.
Carrier Fan: Front-mounted carrier fan provides enhanced heat
dissipation (4.7 CFM).
Fan
Fan LED
Key Lock
Carrier OverTemp
Handle LED
Rugged, Reliable, Mobile, Secure
Reset
Switch
Rear Panel
DC Power Connector: Uses a standard 4-pin DC Power Connec-
tor to accept DC power.
I/O Connector: The input/output connector provides a standard
interface for all Ultra320 signals.
Cooling Fan: Receiving frame fan provides enhanced heat
dissipation (4.7 CFM).
Unit ID Select Switch: (See Figure 2) Allows user to select the ID
number of the disk drive. Refer to table below for Unit ID hex refer-
ence.
Installation
NOTES: A #1 and #2 Phillips screwdriver will be required
for this procedure.
RJR110 supports implementations with a maximum of 2 drives per
channel.
