Features
• Fast speed – ToughTech Q uses fast SATA drives and an Oxford 934 chipset to maximize data
speeds.
• Widely Compatible –ToughTechs work right out of the box with no new drivers needed. They work
with any modern operating system including Mac OS X, Windows XP/Vista/7 and most Linux
distributions.
• Easy to connect – ToughTech Q offers four different connection options: FireWire 800, FireWire 400
(via included convertor cable), eSATA, and USB 2.0. Cables for each connection type are included.
• Shock absorption – Your car has shock absorbers, so why not your hard drive? ToughTech Q
features FlexMount™ Anti-Shock Protection. FlexMount is a shock absorber between the drive and
outer shell that protects your data against bumps and vibrations.
• Cool and quiet – ToughTech has an all-aluminum design meant to draw heat away from the hard
drive. The entire product acts like a heat dissipater, helping to keep your drive cool. And because it
doesn't need a fan, ToughTech is quiet.
• Government-strength encryption – The Secure model includes a hardware-based real time
encryption engine using AES, the government approved encryption standard. Just plug in the
hardware key and your ToughTech Secure is usable like any other external drive with no speed loss.
If your product is lost or stolen, you can rest assured that no one will be able to access the data
without the key.
• Optional write-protection – ToughTech models with WriteLock allow you enable and disable write
protection to ensure the security of your important data.

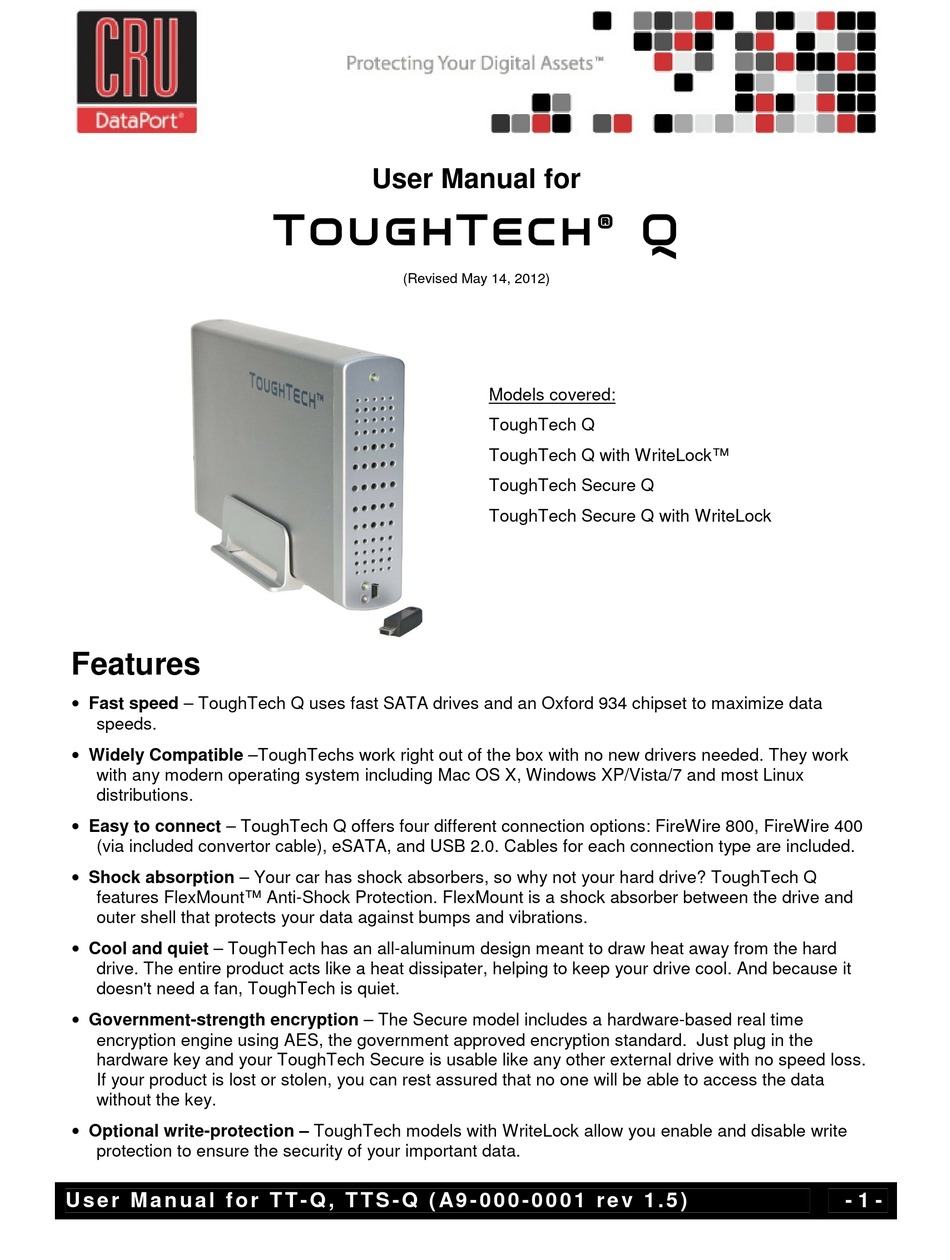

U s e r M a n u a l f o r T T - Q , T T S - Q ( A9 - 0 0 0 - 0 0 0 1 r e v 1 . 5 )
User Manual for

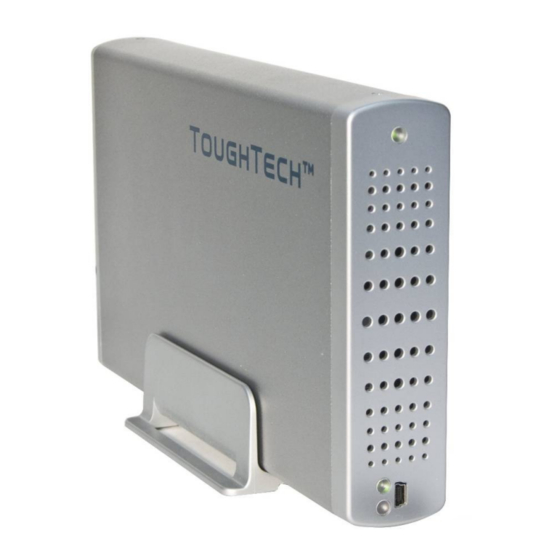

ToughTech® Q
(Revised May 14, 2012)
Models covered:
ToughTech Q
ToughTech Q with WriteLock™
ToughTech Secure Q
ToughTech Secure Q with WriteLock
- 1 -
Advertisement
Table of Contents
Related Manuals for CRU Dataport TT-Q
Summary of Contents for CRU Dataport TT-Q
- Page 1 ToughTech Secure Q with WriteLock Features • Fast speed – ToughTech Q uses fast SATA drives and an Oxford 934 chipset to maximize data speeds. • Widely Compatible –ToughTechs work right out of the box with no new drivers needed. They work with any modern operating system including Mac OS X, Windows XP/Vista/7 and most Linux distributions.
-
Page 2: Table Of Contents
4. Encryption Information 5. Usage with Mac and Windows Operating Systems 6. Encryption FAQs 7. General FAQs 8. Technical Specifications 1. Pre-Installation Steps 1.1 Check the accessories with your ToughTech Q. ToughTech Q ToughTech Secure Q ToughTech enclosure ToughTech enclosure eSATA cable... -
Page 3: Warnings And Notices
(Secure model only) Only use the encryption key with the encryption slot on the front of ToughTech Secure. Never insert the key into a mini-USB port, such as the one on the rear of ToughTech Secure! Inserting an encryption key into a mini-USB port will damage the key and render it useless, which can lead to loss of data. - Page 4 Ensure that the shock absorbers are installed in the mounting brackets with the “thin” side facing outward. 2.1.4 Rest your 3.5” SATA hard drive in the tray. Connect ToughTech’s data and power cables to the receptacles on the hard drive, as shown in the pictures below. SATA Power SATA Data 2.1.5...
-
Page 5: Connecting To A Computer
2.1.8 Fasten the rear panel to the enclosure housing by replacing the screws removed in step 1. ToughTech is now assembled and ready for connection to a computer. 2.2 Connecting ToughTech to a computer 2.2.1 2.2.2... -
Page 6: Writelock Information
With WriteLock, you can prevent the data on ToughTech from being altered when ToughTech changes hands. By adding evidence tape over ToughTech’s chassis screws, you’ll be able to tell if the unit has been opened. Thus, you’ll know if the write-protect mode could have been changed while ToughTech was in another person’s possession. -
Page 7: Encryption Information
The ability to remove the key after power up helps you keep your physical key safe. 4.2 AES encryption keys Your ToughTech Secure comes with 3 identical, programmed keys. These three keys exist so you can • Keep one with you (for your own use) •... -
Page 8: Usage With Mac And Windows Operating Systems
Select the format type. Most users prefer Mac OS Extended with Journaling (HFS+), which is required for compatibility with Time Machine (OS 10.5 or newer). If you need to use your ToughTech with both Mac and Windows computers, select MS-DOS File System instead. - Page 9 ToughTech uses 3.5-inch SATA (Serial-ATA) hard drives only. ToughTech is fully plug-and-play under Windows XP, Vista, or 7 when using FireWire or USB. No drivers are needed. The USB2 port is USB 1.1 compatible. ToughTech does not require drivers for eSATA operation, but eSATA host cards do. If installing an eSATA host card into your computer, use the card manufacturer’s drivers and instructions.
-
Page 10: Encryption Faqs
If the hard drive attached to the ToughTech is already formatted, you can begin using the volume right away. When the ToughTech is properly connected and turned on, a window may open to allow you access to the volume. If no window appears, you can find the volume by double-clicking the “My Computer”... -
Page 11: General Faqs
General FAQs When I operate my ToughTech continuously, the case feels very hot. Is this bad for my drive? A: ToughTechs employ a passive cooling system which conducts heat away from the drive to the aluminum case so that it can be safely dissipated into the surrounding air. This can cause the case to feel very warm, but keeps the drive from reaching dangerous temperatures. -
Page 12: Technical Specifications
Contact us at (866) 744-8722 or through cru-dataport.com ToughTech, WriteLock, and FlexMount are trademarks of CRU Acquisitions LLC. Other marks are the property of their respective owners. © 2007, 2012 CRU Acquisitions LLC. All rights reserved.
