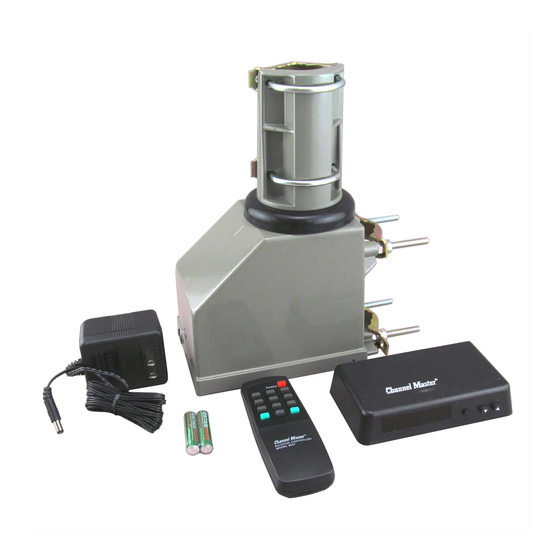

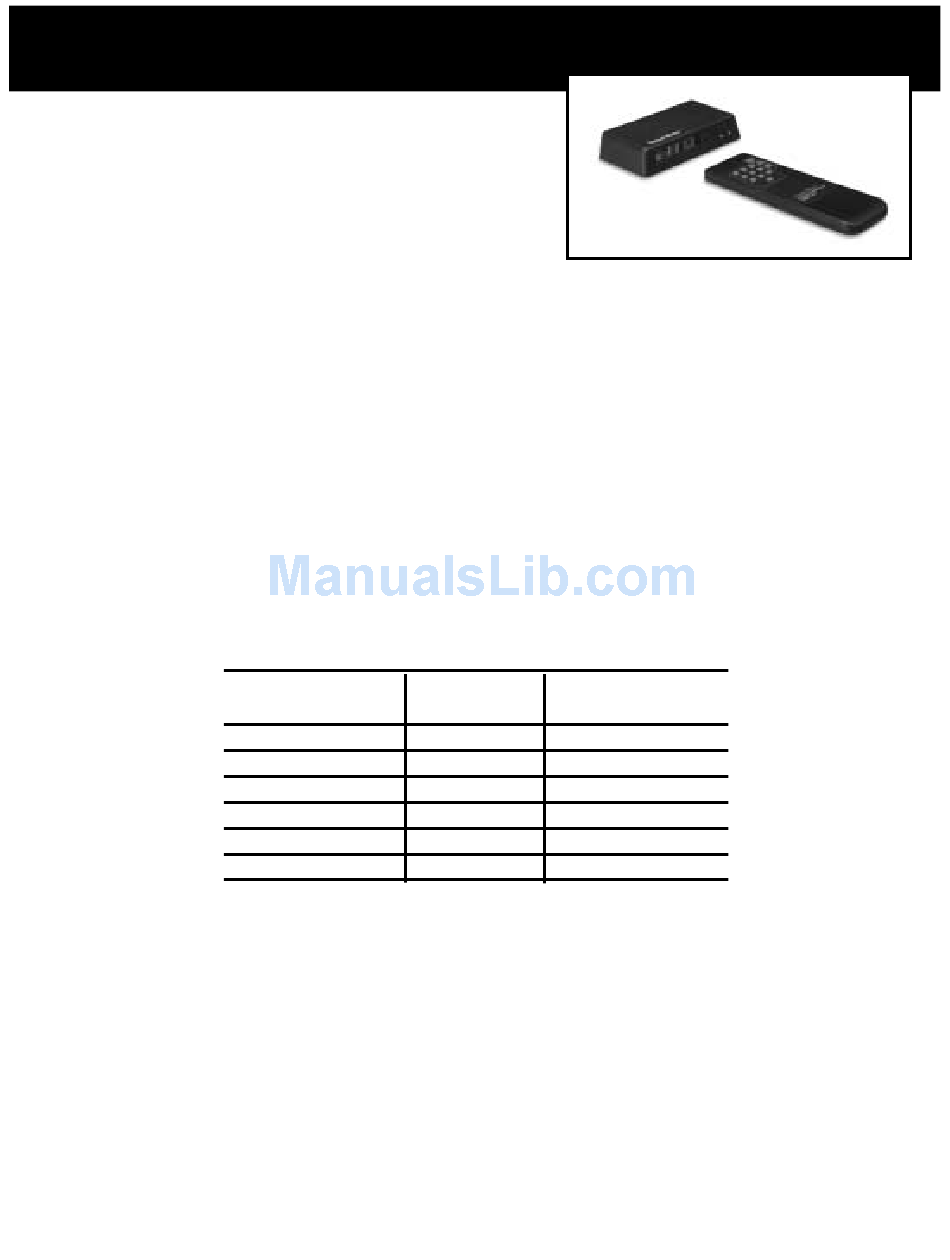

Programmable Antenna Rotator Controller
with Infra-Red Remote Control
Owner's Guide to Installation and Use
Model 9521A Drive and Controller, 117 VAC
Model 9521EU Drive and Controller, 230 VAC
Model 9537A Controller Only, 117 VAC
Model 9537EU Controller Only, 230 VAC
CAUTION: Read and adhere to all IMPORTANT SAFEGUARDS listed elsewhere in this
booklet. Read and observe safety, installation and operating instructions supplied with
this unit and with your antenna BEFORE installation or operation. Retain this booklet and
all instructions for your safety and future reference.
Controller Compatibility - If purchased separately, the Model 9537 controller may be used with the
following rotator drive units:
Channel Master
Radio Shack
If you are upgrading an existing installation with Model 9537 controller, skip to "Model 9537
Programmable Controller" in this leaflet.
Drive Unit Installation
STEP 1 – Determine proper size number of rotator cable from chart. Three conductor cable is
suitable, but if four conductor cable is used, connect both conductors 3 and 4 to terminal 3 of the
terminal board.
*Attach 3 and 4 conductors to No. 3 terminals on control and drive.
STEP 2 – Install drive unit. On new drive units, arrow on mast support should be aligned with arrow shaped
mast stop on housing. Install drive unit with arrows pointing south. Using a short piece of mast (3 feet or
less), install the antenna to the drive unit aiming the antenna south. When desired channels are close to or
on opposite sides of the north end stops, the antenna may be installed pointing north. Note, however, that
the antenna will then be pointing in the opposite direction from that indicated on the control.
An alternative means of setting up is to perform a synchronization of the drive unit using the controller. Then
set up the antenna pointing north. Ensure power is disconnected from the controller when
making antenna adjustments.
®
- Models 9500, 9510(A), 9512, 9513, 9515(A)
®
-
Model 15-1225
Gage
AWG
MM
22
0,6
22
0,6
20
0,8
20
0,8
18
1,0
18
1,0
No. of
Maximum Length
Conductors
Feet
3
180
4*
200
3
280
4*
310
3
445
4*
510
1
Meters
55
61
85
95
136
155
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Channel Master 9521A
Summary of Contents for Channel Master 9521A
- Page 1 Programmable Antenna Rotator Controller with Infra-Red Remote Control Owner’s Guide to Installation and Use Model 9521A Drive and Controller, 117 VAC Model 9521EU Drive and Controller, 230 VAC Model 9537A Controller Only, 117 VAC Model 9537EU Controller Only, 230 VAC CAUTION: Read and adhere to all IMPORTANT SAFEGUARDS listed elsewhere in this booklet.
- Page 2 Loop to allow full turn of antenna Antenna Cable Support Mast Standard Mast Mounting * Mount antenna as close to rotor as possible. Use no more than 3 feet of mast in top of drive unit. Do not mount citizens band base station antennas on top of a standard mast mount drive unit. Mast support may become overloaded in high winds.
- Page 3 • 69 Programmable Antenna Locations (01-69) - Allows location number to be same as channel number. • Digital Compass 000-360 degrees with direct access and up/down. • Universal Remote Control - Use with supplied handheld unit or most universal handheld controllers configured as a Pioneer Player (HH2). Compatible with most DIRECTV held remote controls.
- Page 4 4. Reconnect the AC supply to the controller. After 5 seconds it will switch off. Switch back on by pressing any key on the front panel or handheld remote control. Perform a synchronization by pressing the sync button on the front panel. This takes slightly over one minute. The unit may now be operated from the front panel using the up and down controls.
- Page 5 7. Deleting Programmed Locations/Reset Press 91 DOWN from the handheld remote control. CAUTION - Use this command with care as ALL memory locations will be deleted. This will also set autosync off and timeout on.
- Page 6 Pioneer ® brand cable converter boxes (HH1 mode) or most Pioneer See Appendix A. Refer to the instructions supplied with the universal remote control. Note: Channel Master cannot guarantee universal handheld remote control compatibility. Appendix A Front Panel Setup Summary...
- Page 7 Using the rotator from any room in the house. The following methods and products are suggested though not endorsed by Channel Master a. A UHF universal remote with a UHF to infra-red converter in the same room as Model 9537.
-
Page 8: Important Safeguards
Your antenna rotator unit, consisting of a control and a drive, has been engineered and manufactured to assure your personal safety, but improper installation or abuse of this unit, or the antenna connected to it, can result in potential electrical shock or fire hazards. In order not to defeat the safeguards incorporated in this unit, observe the following basic rules for its installation, use and servicing. - Page 9 8. All individuals, especially children, should be cautioned about dropping or pushing objects into any openings. Some internal parts carry hazardous voltages and contact can result in electrical shock. Objects dropped into the control may also result in a fire hazard. 9.
- Page 10 Esta garantia esta en vez de todas otras garantias expresadas o implicadas y ningún representante o persona es autorizado a assumir para nosotros cualquier otra responsabilidad con respecto a la ventas de nuestros productos. Si hay cualquiera pregunta con relación a precios de servicios o protección de garantia aga contacto apropiado con Channel Master Departamento de Ventas para clarificación. DIRECTV ®...
