Channel Master Simple Remote CM-7000XRC Instruction Sheet

Apple TV Menu
TV/Soundbar Volume
Simple Remote Overview

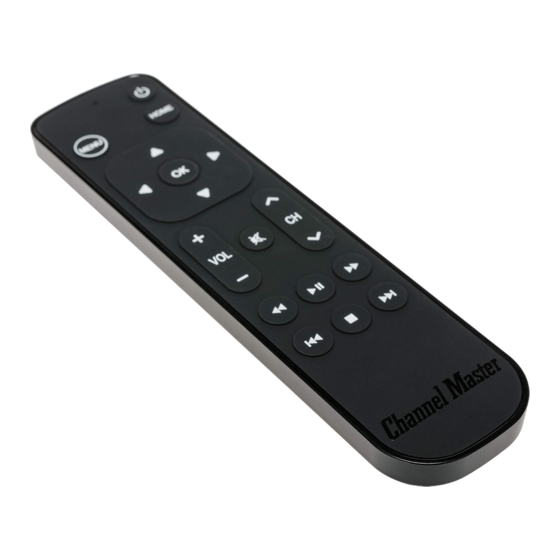

The Channel Master Simple Remote
was designed to specifically
work with 4th generation Apple
TV units and to provide a more
conventional remote control user
experience. The Simple Remote
is pre-programmed to work with
Apple TV units out of the box or it
can also be programmed to work as
a replacement remote control for
Channel Master DVR's.
© 2020 Channel Master L.L.C. Channel Master is a registered trademark. Specifications subject to change. All rights reserved. © 2020 Channel Master. Channel Master
ChannelMaster.com
es una marca registrada. Especificaciones sujetas a cambio. Todos los derechos reservados. © Channel Master, 2020. Channel Master est une marque déposée. Les
caractéristiques peuvent être modifiées sans préavis. Tous droits réservés. Pub CM3205.IS.202001
Simple Remote
Alternative Remote Control for Apple TV (Generation 4)
& Channel Master DVR's
CM-7000XRC
Using the Simple Remote
Select
Mute
Rewind
Skip Back
Stop
Important Details:
• Simple Remote uses IR commands which means line of sight between the
Apple TV and Simple Remote control is required.
• Simple Remote DOES NOT support Bluetooth functions including voice search.
• The Simple Remote comes from the factory with a plastic Isolator in the battery
compartment to preserve battery life before initial use. You will need to ensure
the plastic isolator is removed prior to first use.
• The Simple Remote has universal functionality which allows it to be
programmed to control the on/off and volume functionally of most brands of
TV's and soundbars. (Note: Simple Remote will not conrol other TV functions
besides Power On/Off and Volume +/-)
TV/Home/Control Center
Navigation
Channel Up + Down
(compatible with select TV streaming apps)
Play/Pause
Fast Forward
Skip Forward
