Champion USN-10 Specifications

Specifications

Capacity
Cycle Time (seconds) (NSF rated)
Racks per hr. (NSF rated)
Motor horsepower
Wash
Water consumption
U.S. Gal. per hr. (Max. use)
U.S. Gal. per rack
Temperatures °F
Wash
Rinse
Heating
Tank heat, electric (kW)
Electric booster (kW for 70°F rise)
Tank heat, steam
(lbs./hr. @15 PSI flow pressure)
Steam booster (lbs/hr. for 70°F rise)
Time cycle in seconds
Wash
Rinse
Dwell
Total cycle
Standard 16" x 16" dishrack
High Temperature in a Compact Design
Fast Operation, Outstanding results every time
The USN10 features a fast 50 second timed cycle.
Operation is fully automatic with an NSF rated capacity
of 45 racks/ hour.
Interchangeable stainless steel wash arms
The USN10 also features interchangeable stainless steel
wash arms for easy installation and clean-up.
Easy to remove thumbscrews make removal fast and simple.
Low Water Consumption
The USN10 only uses 0.8 US gallons of water to produce a
sparkling clean rack of ware. The upper and lower revolving
spray system provides superior washing results.
Optional Electric or Steam Heat
The USN10 is available in either steam or electric tank heat
and electric or steam external booster for 180°F final
rinse water for sanitizing.
Due to ongoing value analysis program at Champion, specificatons in this catalog are subject to change without notice.
(1M) 4/03 Printed in USA
Project
Item No.
Quantity
50
45
1/2
36
0.8
150
180
3
18
10
36
33
12
5
50

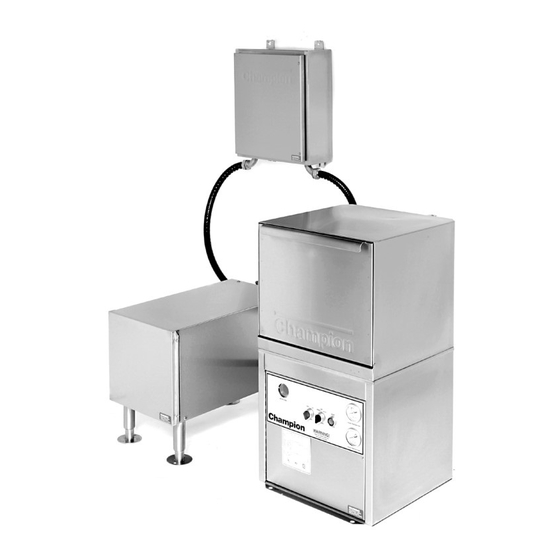

USN10
(shown with electric
booster heater)
USN10
(for use with optional electric or
Standard Features
Independent stainless steel
interchangeable upper and lower
wash arms
Door safety switch
Line strainer (unmounted)
Low-water tank heat protection
Front service accessability
Remote mounted control cabinet
NSN's:
USN10 Electric- 7320-01-506-6252
USN10 Steam- 7320-01-506-6255
Undercounter
High Temperature
Dishwashing Machine
steam booster heater)
®
®
