Summary of Contents for Akai APR-11

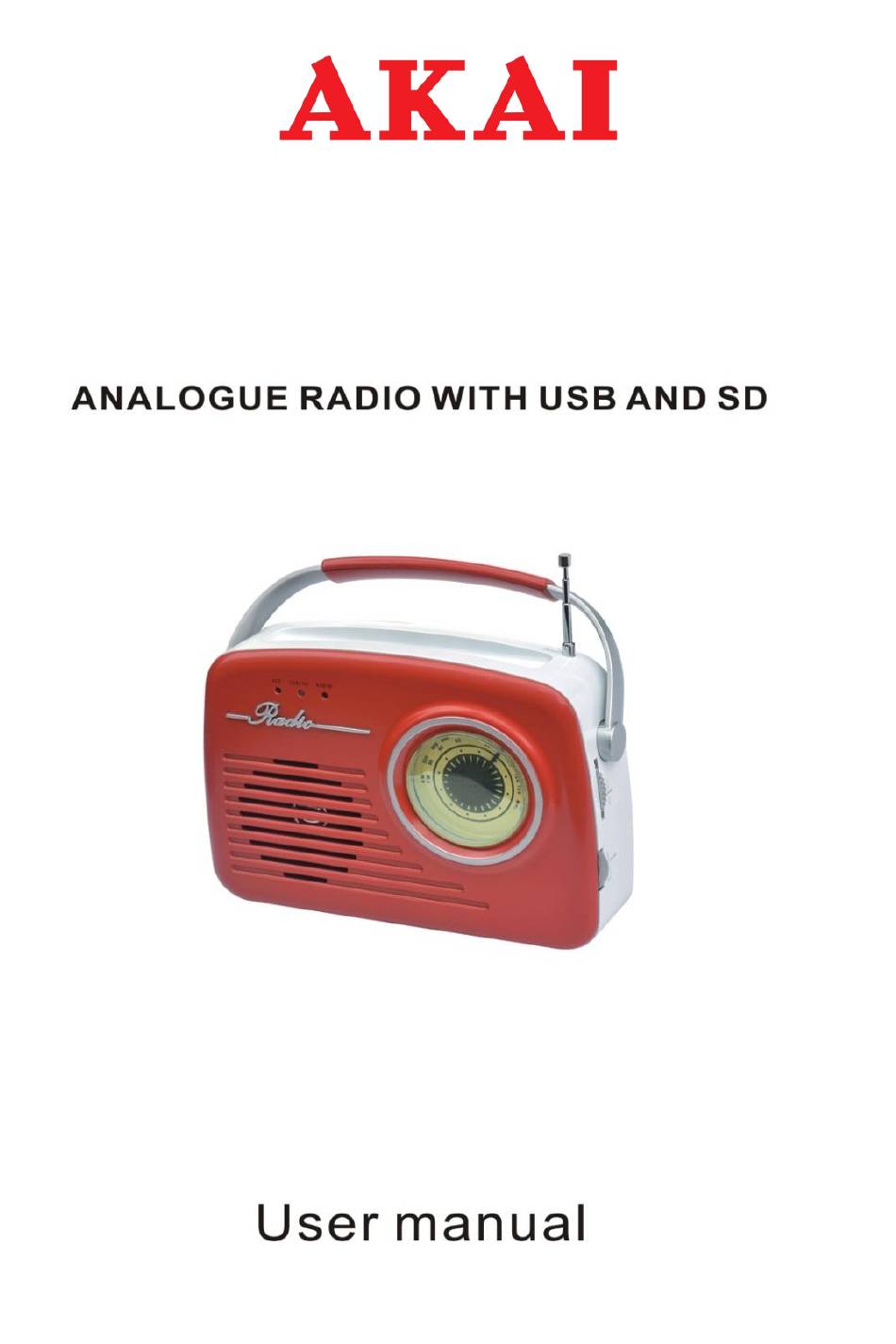

  • Page 1 APR-11 RADIO ANALOG CU MUFA USB SI SD Manualul utilizatorului...
  • Page 2: Instructiuni De Utilizare

    INSTRUCTIUNI DE UTILIZARE Alimentarea cu baterii Deschideti compartimentul pentru baterii si introduceti in compartiment patru (4) baterii de tip LR14, UM2 sau R14 (bateriile nu sunt incluse). Componente Conectati cablul intr-o priza AC si apoi in priza de perete. Sursa de alimentare este acum conectata si gata pentru utilizare.
  • Page 3 PANOU CONTROL 1. ANTENA FM 2. BUTON PORNIRE - Apasati butonul de PORNIRE pentru a porni/opri aparatul. 3. BUTON PLAY/PAUZA - In modul de “redare media”, apasati butonul pentru a porni sau a pune pe pauza redarea. 4. BUTON OPRIRE - In modul SD/USB, apasati butonul pentru a opri redarea.
  • Page 4 REDARE MEDIA PLAYER Redare USB/SD 1) Apasati butonul FUNC pentru a selecta caracteristica USB/SD. 2) Apasati butonul PLAY pentru a porni sau a pune pe pauza redarea muzicii. 3) Apasati butonul STOP pentru a opri redarea; cand apasati butonul “play”, aparatul va porni cu redarea primei piese.
  • Page 5: Specificatii Tehnice

    SPECIFICATII TEHNICE GENERAL Cerinte alimentare..............AC/DC: 230V ~ 50Hz Consum alimentare................AC/DC 11 Watts Dimensiuni..........Aprox210 mm(L)x65 mm(W) x 195 mm(H) Temperatura operare.................+5 ℃ - +35℃ SECTIUNE RECEPTIE Benzi receptive…………………...............AM/FM. Raza de reglaj …………………………………………………….. … AM:520-1620KHz FM:87.5-108MHz SECTIUNEA AUDIO Putere iesire....................Maxim 2vati Impedanta castilor de radio..............4 ~ 32 Ohms ACCESORII Brosura instructiuni…………………….................1 Adaptor DC........................1...
  • Page 6 Reciclarea echipamentelor electrice şi electronice uzate: Acest simbol prezent pe produs sau pe ambalaj semnifică faptul că produsul respectiv nu trebuie tratat ca un deşeu menajer obişnuit. Nu aruncaţi aparatul la gunoiul menajer la sfârşitul duratei de funcţionare, ci duceţi-l la un centru de colectare autorizat pentru reciclare.
  • Page 7 APR-11...
  • Page 8 OPERATING INSTRUCTION Battery Supply Open the battery compartment and insert as indicated in the compartment four Batteries, type LR14, UM2 or C cells(not included). Mains Supply Connect the power cord to the AC socket inlet and the wall outlet. The power supply is now connected and ready for use.
  • Page 9: Control Panel

    CONTROL PANEL 1. FM ANTENNA 2. POWER BUTTON - Press POWER button to turn power on/off. 3. PLAY/PAUSE - In media play mode, press to start or pause playing. 4. STOP BUTTON - In SD/USB mode, press to stop playing. 5.
  • Page 10: Media Player

    MEDIA PLAYER Playing USB/SD 1) Press FUNC button to select USB/SD state. 2) Press PLAY to start or pause music playback. 3) Press STOP button to stop the playing, when you press play button it will start Playing the first track. 4) PREV/NEXT button Press the PREV/NEXT button to go to next/back track;...
  • Page 11: Technical Specifications

    TECHNICAL SPECIFICATIONS GENERAL Power Requirement ..............AC/DC: 230V ~ 50Hz Power consumption ................AC/DC 11 Watts Dimensions..........Approx210 mm(L)x65 mm(W) x 195 mm(H) Operation temperature................+5 ℃ - +35℃ RECEIVER SECTION Receiving Bands....................AM/FM. … Tuning Range………………………………………………………….. AM:520-1620KHz FM:87.5-108MHz AUDIO SECTION Power output ..................Maximum 2Watt Headphone Impedance ................4 ~ 32 Ohms ACCESSORIES Instruction Booklet......................1...
  • Page 12: Disposal Of Waste Electrical And Electronic Equipment

    EN-4 DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT This symbol on the product or packaging means that the product should not be treated as household waste. Do not throw garbage at the end of its life, but take it to a collection center for recycling.
