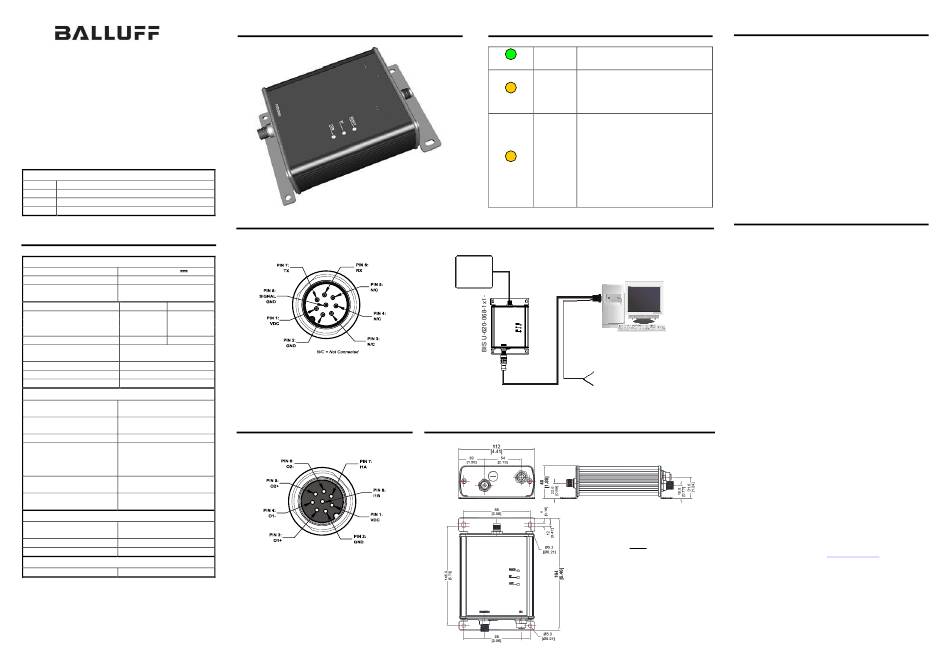

Balluff BIS U-620-068-1X1-00-SX Installation Manual

zur Prüfung
BF-IDU07
BIS U-620-068-1X1-00-SX
Ultra High Frequency Passive Radio Frequency,
Identification Processor
INSTALLATION GUIDE
This document provides instructions and information
designed to assist users in the hardware setup of the BIS U-
620-068-1x1-00-Sx Processor. For configuration details see
the BIS U-62_ Processor Manual.

PACKAGE CONTENTS

Qty Description
1 BIS U-620-068-1x1-00-Sx Processor
1 UHF Series Configuration Tag
1 This Installation Guide

TECHNICAL DATA

ELECTRICAL FEATURES

Power Supply 19.2...28.8 V DC
DC Input Current 1 A
Communication Interface RS232
9600 (default) ... 115200
Baud Rate

RADIO FEATURES

EU
Frequency (MHz)
ETSI EN 302 208 865...868
FCC part 15.247 - 902...928
Number of Channels 4 fixed 50 hopping
Frequency Tolerance ± 10 ppm over entire temp
range
Air Interface EPC C1G2
Conducted Output Power 500 mW (27 dBm) max
Antenna Connector Reverse TNC

ENVIRONMENTAL FEATURES

Operating Temperature -20...+50 °C
(-4...+122 °F)
Storage Temperature -20...+70 °C
(-4...+158 °F)
Humidity max. 90 % non condensing
Vibration Resistance 14 mm @ 2...10 Hz;
EN 60068-2-6 1.5 mm @ 13...55 Hz;
2 g @ 70...200 Hz;
2 hours on each axis
Shock Resistance 30 g; 11 ms;
EN 60068-2-27 3 shocks on each axis
Protection Class
IP65*
EN 60529

PHYSICAL FEATURES

Dimensions 164 x 112 x 48 mm
(6.46 x 4.41 x 1.88 in)
Weight 560 g (19.8 oz)
Enclosure Powder Coated Aluminum

USER INTERFACE

LED Indicators READY, RF, COM
* When all connectors and antenna are correctly installed.
The BIS U-620-068-1x1-00-Sx Processor and its antenna
are intended for indoor use only.
GENERAL VIEW

CONNECTIVITY

M12 8 pin Male Connector (Data and Power Supply)
US
-

DIGITAL I/O (-12 MODELS)

M12 8-pin Female Connector (Digital I/O)
This connector is available on models
BIS U-620-068-1x1-00-S29.
See the BIS U-62_ Processor Manual for details
LED INDICATORS
The READY LED is ON after the power
READY
up sequence has completed.
green
The RF LED illuminates when RF
RF power is being transmitted by the
amber
antenna.
The
flashes ON and OFF when data is
being transmitted between the antenna
and a tag.
COM
amber When in Continuous Read mode, the
COM LED will remain ON and will turn
OFF briefly only while data is being
read from or written to a tag.
Typical Layout
BIS U-30x... antenna
BCC0ETJ
Vdc (red)
GND (black)
See the BIS U-62_ Processor Manual for a complete list of accessories including
alternative cables and connectors.
DIMENSIONS
*
* Digital I/O (-ST29 models only)
*

INSTALLATION GUIDELINES

•
RF performance and read/write range can be negatively
impacted by the proximity of metallic objects and liquids.
Avoid mounting the BIS U-3x... antenna within 15 cm (6
inches) of any metallic object or wet surface.
•
Do not route cables near other unshielded cables or
near wiring carrying high voltage or high current. Cross
cables at perpendicular intersections and avoid routing
cables near motors and solenoids.
•
Avoid mounting the Processor near sources of EMI
COM (communications) LED (electro-magnetic interference) or near devices that
generate high ESD (electro-static discharge) levels.
Always use adequate ESD prevention measures to
dissipate potentially high voltages.
•
If electrical interference is encountered (as indicated by
a significant reduction in read/write performance),
relocate the Processor to an area free from potential
sources of interference.

INSTALLATION

The BIS U-620-068-1x1-00-Sx RFID Processor is designed
for point-to-point RFID applications, where the distance from
host to Processor is less than 15 meters (50 feet). The
Processor connects directly to a serial communications port
on a host computer via an RS232-compatible serial
interface cable.
1. Select a suitable location for the BIS U-62... Processor
and BIS U-30... Antenna.
Mount the BIS U-30... Antenna (within the cable
2.
distance of the Processor) and attach the BIS U-30...
Antenna cable as described in the installation guide
Host
included with the antenna.
3. Fasten the Processor to your mounting fixture using two
Power
M5 (#10) diameter screws (not included) and secure
Supply
them with appropriate washers and nuts. Tighten
screws to 1.7 Nm or 15 lbs per inch ± 10%. Connect
the antenna cable to the UHF Processor.
4. Connect the BCC0ETJM12 8-pin female connector to
the M12 8-pin male interface connector on the BIS U-
620-068-1x1-00-Sx
BCC0ETJ9-pin female D-sub connector to an RS232
COM port on the host computer. Tighten the cable's
two locking thumbscrews.
5. Connect the power supply to the VDC (red) and GND
(black) wires on the BCC0ETJcable.
6. Apply power
connections have been made. The LEDs on the unit will
*
flash. The READY LED is ON after the power up
sequence has completed.
7. On the host computer, set the COM port parameters to:
9600 baud, 8 data bits, 1 stop bit, no parity and no
handshaking.
mm
To verify operations, download the Balluff Dashboard™
in Configuration Tool from www.balluff.com. The Balluff
Dashboard™ Configuration Tool allows users to configure
and control their BIS U-620-068-1x1-00-Sx Processors and
send RFID commands for testing purposes.
Processor. Connect the
to the Processor after all cable
