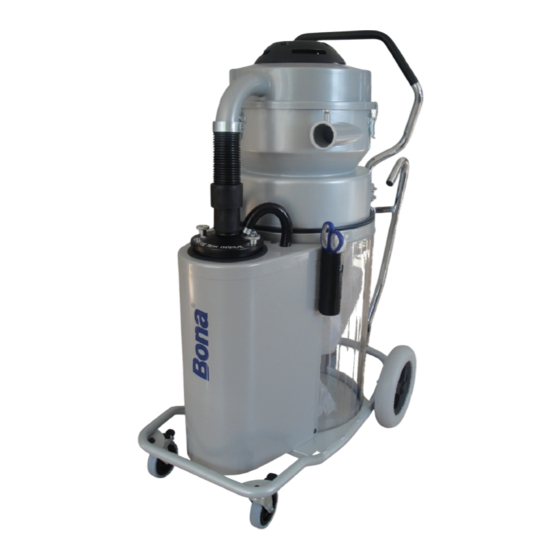

- Page 1 Bona DCS70/Portable DCS Bona DCS70/Portable DCS ® ® Manual and safety Manual and safety instruction instruction WARNING Read the instructions manual before using the machine AMO530002 | AMO530005 AMO530002 | AMO530005 Bruksanv isning i original v1.1...
-
Page 2: Technical Data
Bona DCS70 may only be used for handling dry non explosive, materials. Bona DCS70 is designed to handle wood dust when sanding floors and vacuuming with Bona’s equipment. Bona AB disclaims all responsibility if the Bona DCS70 is used for other purposes or is handled differently than described in this Operator’s Manual. - Page 3 Bona DCS70 / Portable DCS® Unpacking When unpacking the machine, please check that following items are included: Suction hose including hose end Cleaning equipment Connection cable Extra Longopac Operators Manual Cleaning kit, including: Hose connector (38-50mm) – Includes only in 230V...
-
Page 4: Safety Instructions
Do not connect the machine to an unearthed socket. Risk of personal injury. Make sure that the foundation is solid so the Bona DCS 70 doesn’t tip over. Risk of personal injury and property damage. Risk of pinch injuries when handling the toggle fasteners, cleaning unit and cyclone. - Page 5 Connect the power cable to the right wall outlet. Assemble the hose to the sanding machine or to the suction pipe together with the floor nozzle. Start the Bona DCS70 by using the push switch. The dust extractor separates material in three stages: ...
- Page 6 Bona DCS70 / Portable DCS® Collection Particles and dust falls down into a transparent dust container under the cyclone separator. Inside the dust container is a Longopac bag hose system which should be replaced when full. The system consists of a 65 ft folded plastic hose, which gives about 20 dust free bag changes.
- Page 7 Bona DCS70 / Portable DCS® Cleaning the coarse filter through cleaning valve In order to get maximum suction capacity is the dust extractor equipped with a cleaning valve which effortlessly cleans the coarse filter. 1. Start the machine 2. Block the suction hose by the work 3.
-
Page 8: Troubleshooting
Bona DCS70 / Portable DCS® CONSUMABLES To order spare parts, see schematics with article list, This is available at: http://spareparts.bona.com/ Trouble shooting The machine is constructed and adjusted to a demanding environment and task, but the user may notice that the machine contains precision made components which should be protected against hard blows and jolts. - Page 9 Bona DCS70 / Portable DCS® DCS70 230V...
- Page 10 Bona DCS70 / Portable DCS® DCS70 230v Item Description ASO539127 Clean Unit ASO539827 Cover Complete ASO539148 Handle Complete ASO539032 Folded Course Filter DCS II ASO539080 Cyclone Complete ASO539799 Tensioin Set Complete (3 pcs) ASO539745 Hose Locking ASO539372 Hook Clamp 118-G3...
- Page 11 Bona DCS70 / Portable DCS® Portable DCS® 115V...
- Page 12 Bona DCS70 / Portable DCS® Portable DCS® 115V Item Description ASO539127 Clean Unit ASO539827 Cover Complete ASO539148 Handle Complete ASO539032 Folded Course Filter DCS II ASO539080 Cyclone Complete ASO539799 Tensioin Set Complete (3 pcs) ASO539745 Hose Locking ASO539372 Hook Clamp 118-G3...
- Page 13 During the factory warranty period, service or repairs may only be carried out upon approval by a manager at Bona Division Sanding and only performed by staff at Bona AB or approved staff at Bona AB Division Sanding.
- Page 14 Bona DCS70 / Portable DCS® According to Directive 2006/42/EC, Annex 2A...
