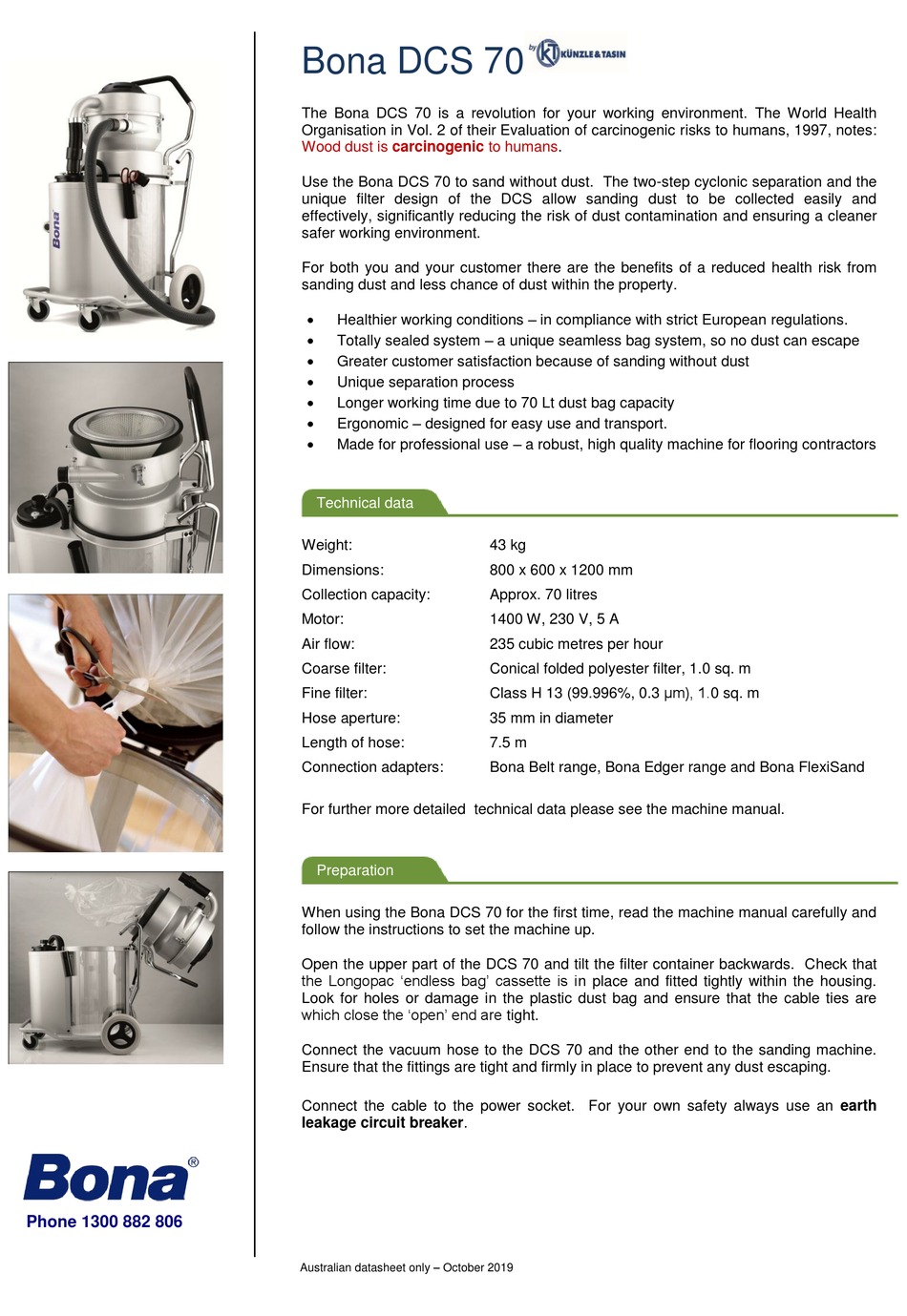

Bona DCS 70 Quick Start Manual

Phone 1300 882 806
Bona DCS 70
The Bona DCS 70 is a revolution for your working environment. The World Health
Organisation in Vol. 2 of their Evaluation of carcinogenic risks to humans, 1997, notes:
Wood dust is carcinogenic to
Use the Bona DCS 70 to sand without dust. The two-step cyclonic separation and the
unique filter design of the DCS allow sanding dust to be collected easily and
effectively, significantly reducing the risk of dust contamination and ensuring a cleaner
safer working environment.
For both you and your customer there are the benefits of a reduced health risk from
sanding dust and less chance of dust within the property.

Healthier working conditions – in compliance with strict European regulations.

Totally sealed system – a unique seamless bag system, so no dust can escape

Greater customer satisfaction because of sanding without dust

Unique separation process

Longer working time due to 70 Lt dust bag capacity

Ergonomic – designed for easy use and transport.

Made for professional use – a robust, high quality machine for flooring contractors

Technical data

Weight:
Dimensions:
Collection capacity:
Motor:
Air flow:
Coarse filter:
Fine filter:
Hose aperture:
Length of hose:
Connection adapters:
For further more detailed technical data please see the machine manual.

Preparation

When using the Bona DCS 70 for the first time, read the machine manual carefully and
follow the instructions to set the machine up.
Open the upper part of the DCS 70 and tilt the filter container backwards. Check that
the Longopac 'endless bag' cassette is in place and fitted tightly within the housing.
Look for holes or damage in the plastic dust bag and ensure that the cable ties are
which close the 'open' end are tight.
Connect the vacuum hose to the DCS 70 and the other end to the sanding machine.
Ensure that the fittings are tight and firmly in place to prevent any dust escaping.
Connect the cable to the power socket. For your own safety always use an earth
leakage circuit breaker.
Australian datasheet only – October 2019
humans.
43 kg
800 x 600 x 1200 mm
Approx. 70 litres
1400 W, 230 V, 5 A
235 cubic metres per hour
Conical folded polyester filter, 1.0 sq. m
Class H 13 (99.996%, 0.3 μm), 1.0 sq. m
35 mm in diameter
7.5 m
Bona Belt range, Bona Edger range and Bona FlexiSand
