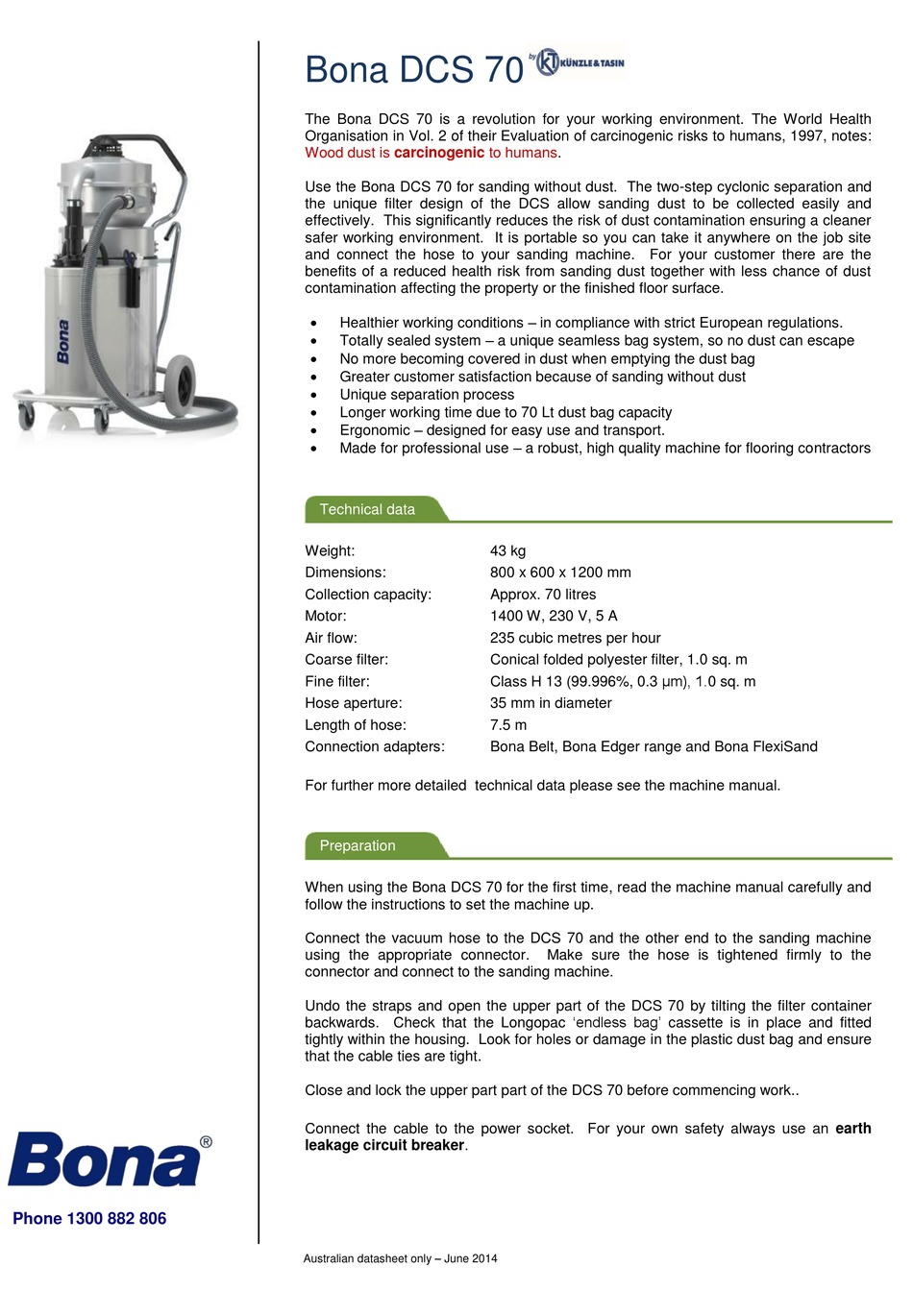

Bona DCS 70 Quick Start Manual

Phone 1300 882 806
Bona DCS 70
The Bona DCS 70 is a revolution for your working environment. The World Health
Organisation in Vol. 2 of their Evaluation of carcinogenic risks to humans, 1997, notes:
Wood dust is carcinogenic to
Use the Bona DCS 70 for sanding without dust. The two-step cyclonic separation and
the unique filter design of the DCS allow sanding dust to be collected easily and
effectively. This significantly reduces the risk of dust contamination ensuring a cleaner
safer working environment. It is portable so you can take it anywhere on the job site
and connect the hose to your sanding machine. For your customer there are the
benefits of a reduced health risk from sanding dust together with less chance of dust
contamination affecting the property or the finished floor surface.

Healthier working conditions – in compliance with strict European regulations.

Totally sealed system – a unique seamless bag system, so no dust can escape

No more becoming covered in dust when emptying the dust bag

Greater customer satisfaction because of sanding without dust

Unique separation process

Longer working time due to 70 Lt dust bag capacity

Ergonomic – designed for easy use and transport.

Made for professional use – a robust, high quality machine for flooring contractors

Technical data

Weight:
Dimensions:
Collection capacity:
Motor:
Air flow:
Coarse filter:
Fine filter:
Hose aperture:
Length of hose:
Connection adapters:
For further more detailed technical data please see the machine manual.

Preparation

When using the Bona DCS 70 for the first time, read the machine manual carefully and
follow the instructions to set the machine up.
Connect the vacuum hose to the DCS 70 and the other end to the sanding machine
using the appropriate connector.
connector and connect to the sanding machine.
Undo the straps and open the upper part of the DCS 70 by tilting the filter container
backwards. Check that the Longopac 'endless bag' cassette is in place and fitted
tightly within the housing. Look for holes or damage in the plastic dust bag and ensure
that the cable ties are tight.
Close and lock the upper part part of the DCS 70 before commencing work..
Connect the cable to the power socket. For your own safety always use an earth
leakage circuit breaker.
Australian datasheet only – June 2014
humans.
43 kg
800 x 600 x 1200 mm
Approx. 70 litres
1400 W, 230 V, 5 A
235 cubic metres per hour
Conical folded polyester filter, 1.0 sq. m
Class H 13 (99.996%, 0.3 μm), 1.0 sq. m
35 mm in diameter
7.5 m
Bona Belt, Bona Edger range and Bona FlexiSand
Make sure the hose is tightened firmly to the
