Bona DCS70 Manual And Safety Instruction

Hide thumbs Also See for DCS70:

Advertisement

Quick Links

Download this manual

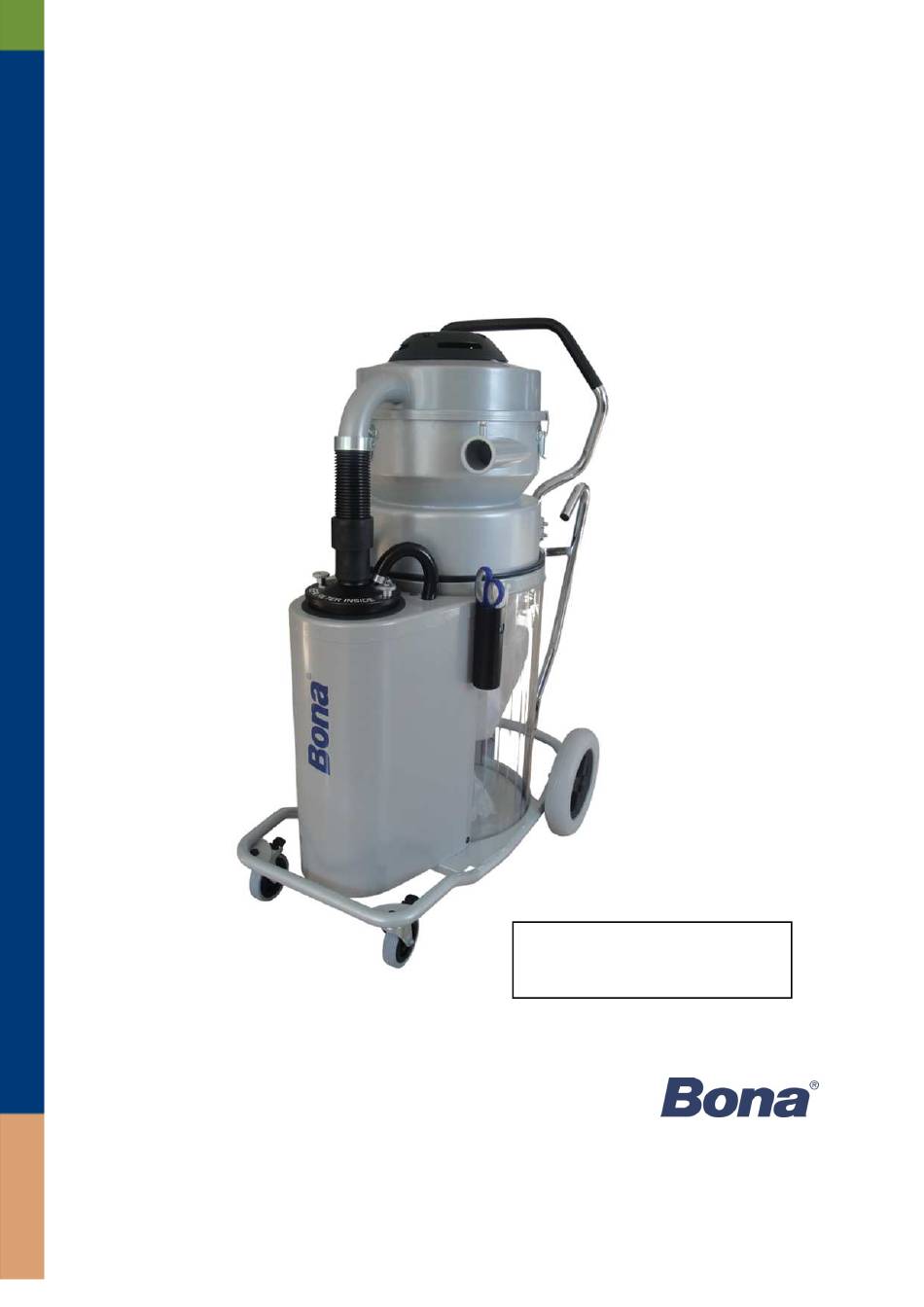

Bona DCS70
Manual and safety
instruction
WARNING
Read the manual before
using the machine
AMO530005
Translation of manual in originals
v1.4

Advertisement

loading
Need help?

Need help?

Do you have a question about the DCS70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bona DCS70

Summary of Contents for Bona DCS70

  • Page 1 Bona DCS70 Manual and safety instruction WARNING Read the manual before using the machine AMO530005 Translation of manual in originals v1.4...

  • Page 2: Technical Data

    Bona DCS70 may only be used for handling dry non explosive, materials. Bona DCS70 is designed to handle wood dust when sanding floors and vacuuming with Bona’s equipment. Bona AB disclaims all responsibility if the Bona DCS70 is used for other purposes or is handled differently than described in this Operator’s Manual.
  • Page 3 Bona DCS70 Unpacking When unpacking the machine, please check that following items are included: • Suction hose including hose end • Cleaning equipment • Connection cable • Extra Longopac • Operators Manual • Cleaning kit, including: Hose connector (38-50mm) Hose lock 60mm...

  • Page 4: Safety Instructions

    • Do not connect the machine to an unearthed socket. Risk of personal injury. • Make sure that the foundation is solid so the Bona DCS 70 doesn’t tip over. Risk of personal injury and property damage. • Risk of pinch injuries when handling the toggle fasteners, cleaning unit and cyclone.
  • Page 5 2, the DCS70 will start automatically when starting the connected machine. When the connected machine is turned off the DCS70 will run for about 10 seconds this to make sure that all dust in the hose will disappear.
  • Page 6 Bona DCS70 Collection Particles and dust falls down into a transparent dust container under the cyclone separator. Inside the dust container is a Longopac bag hose system which should be replaced when full. The system consists of an approximately 20 m long plastic hose, which gives about 20 dust free bag changes.
  • Page 7 Bona DCS70 Replacing the Longopac magazine Start off with locking the wheel brakes. 1. Cut the bag open 2. Loosen the straps 3. Pull out the 4. Remove the magazine gasket and discard the Longopac rest 5. Place a new 6.
  • Page 8 Bona DCS70 Cleaning the coarse filter through cleaning valve In order to get maximum suction capacity is the dust extractor equipped with a cleaning valve which effortlessly cleans the coarse filter. 1. Start the machine 2. Block the suction hose by the work place.
  • Page 9 Manometer function Bona DCS70 is equipped with a manometer for monitoring the filter conditions. The meter is checking the machines filter status but it will also react on outside added hoses etc. Due to this the machine will respond to the total load.
  • Page 10 Bona DCS70 DCS70...
  • Page 11 Cover to Filter tube DCS II ASO539033 HEPA Filter to DCS II ASO539084 Motor tube complete ASO539367 Motor 230V 1400W DCS70 ASO539164 Motor cover DCS70 230V compl. ASO539452 Vacuum meter ASO539511 Switch DCS70 ASO903888 Hour meter (counter) ASO539573 Cable kit DCS70 230V...

  • Page 12: Warranty

    In the event of a warranty claim, the machine or the agreed part must be returned to us or our dealer with paid freight for warranty testing and for potential warranty repair or replacement. During the factory warranty period, repairs may only be carried by staff at Bona AB or staff approved by Bona AB.
  • Page 13 Bona DCS70 According to Directive 2006/42/EC, Annex 2A...
