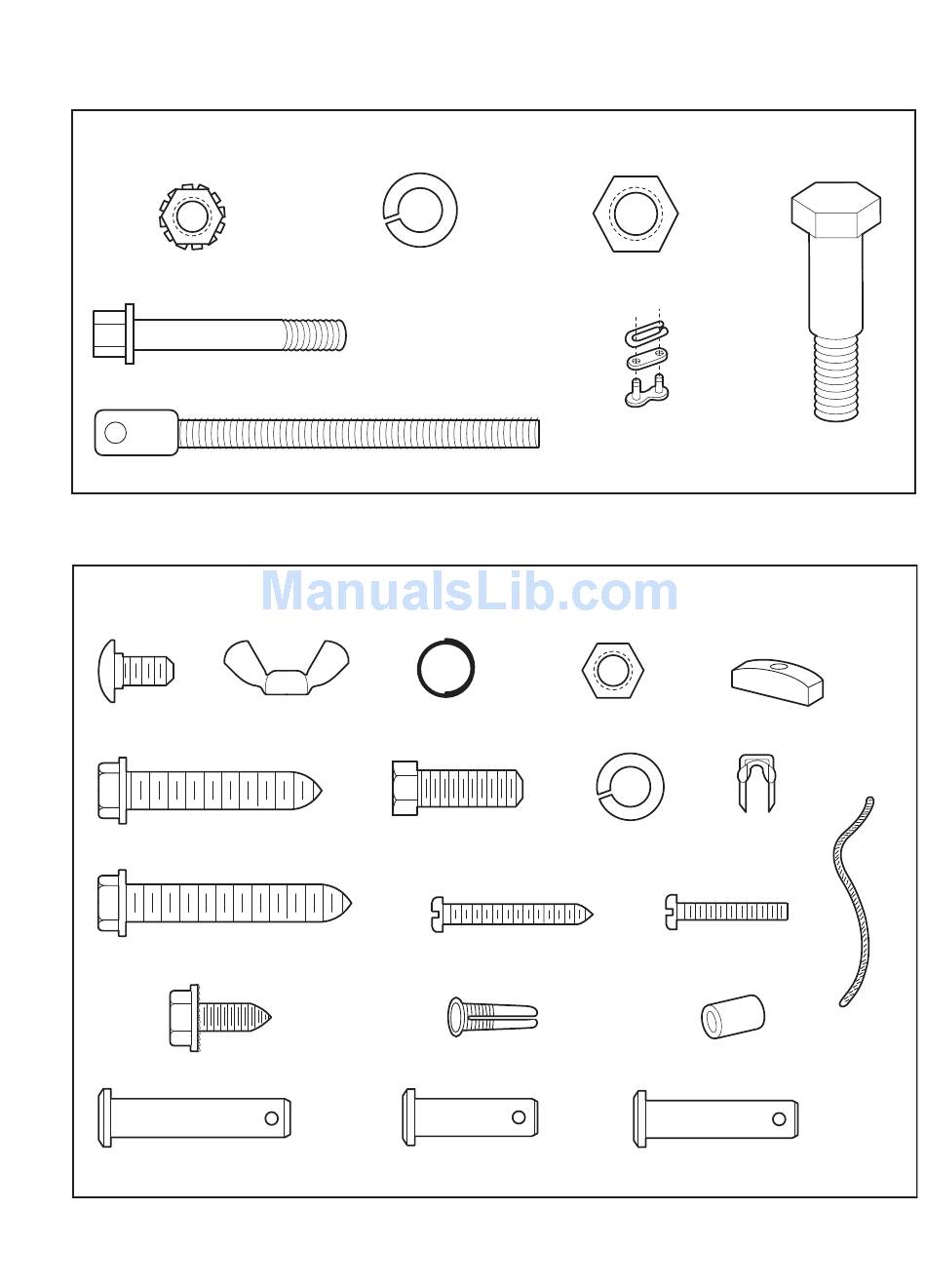

Hardware Inventory

Separate all hardware and group as shown below for the assembly and installation procedures.
Lock Nut
1/4"-20 (2)
Bolt 1/4"-20x1-3/4 (2)
Carriage Bolt
1/4"-20x1/2" (2)
Lag Screw
5/16"-9x1-5/8" (2)
Lag Screw
5/16"-18x1-7/8" (2)
Self-Threading Screw
1/4"-14x5/8" (2)
Clevis Pin
5/16"x1-1/2" (1)
ASSEMBLY HARDWARE
Lock Washer
3/8" (1)
Trolley Threaded Shaft (1)
INSTALLATION HARDWARE
Wing Nut Ring
1/4"-20 (2) Fastener (3)
Hex Bolt
5/16"-18x7/8" (4)
Nut 5/16"-18 (8)
Lock Washer 5/16" (7)
Screw
6ABx1-1/4" (2)
Drywall Anchors (2)
Clevis Pin
5/16"x1" (1)
7
Nut
3/8" (1)
Master
Link (2)
Handle
Insulated
Staples (30)
Screw 6-32x1" (2)
Spacer (2)
Clevis Pin
5/16"x1-1/4" (1)
Idler Bolt (1)
Rope
