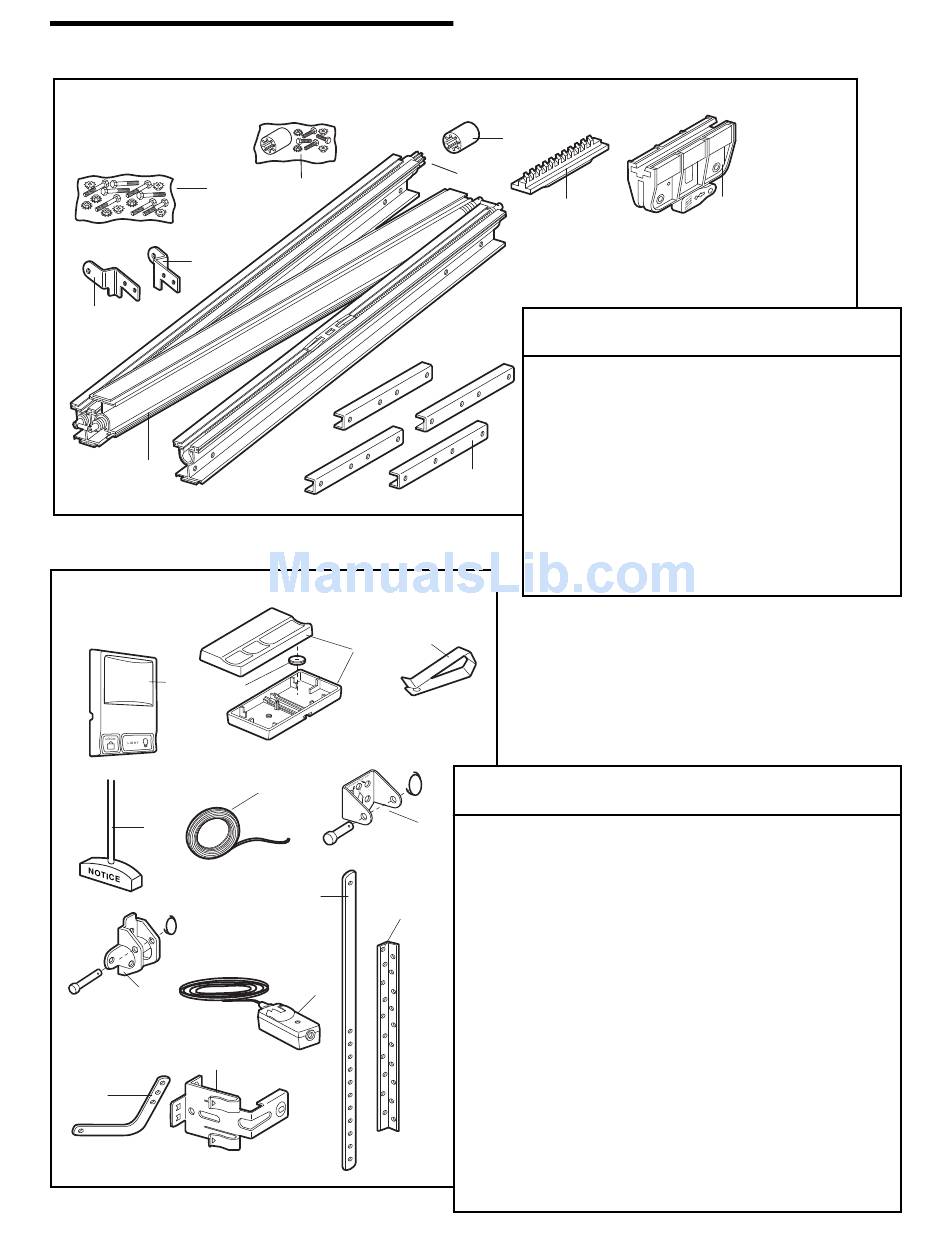

REPAIR PARTS

Rail Assembly Parts

1
4
3
5

Installation Parts

1
5
8
13
12
2
2
3
6
10
11
9
9
10
7
KEY PART
NO. NO.
1 41A4796
2 41A4795
3 12B569-1
4 12B569-2
5 1C4827-1
6
6 12B560M
7 81C168
8 41C4677
9 25C20
10 41A4836
4
KEY PART
NO. NO.
7
1 41A5273-9
2 953D
3 10A20
4 29B137
5 41A2828
6 41B4494-1
7 41A4353
8 41A5047
9 41A5034
10 178B34
11 12B776
12 178B35
13 41A5266-1
41A4675-7
114A3054
114A3054SP Owner's manual - Spanish
37
8
DESCRIPTION
Hardware bag
Hardware bag (includes
sprocket coupling)
Left rail bracket
Right rail bracket
Screw drive rail assembly
Rail support braces (4)
Rack
Complete trolley assembly
Sprocket coupling
Drive sprocket kit
DESCRIPTION
Multi-function door control
3-Button remote control
3V 2032 Lithium battery
Visor clip
Emergency release rope & handle assy.
2-Conductor bell wire: white & white/red
Header bracket w/clevis pin & fastener
Door bracket w/clevis pin & fastener
Safety sensor kit: receiving and
sending eyes with 3' (.9 m) 2-conductor
bell wire attached
Straight door arm section
Hanging brackets
Curved door arm section
Safety sensor bracket
NOT SHOWN
Installation hardware bag (see page 7)
Owner's manual
