Chamberlain Security+ 9950D Owner's Manual

1/2 hp
Hide thumbs
Table of Contents

Advertisement

Quick Links

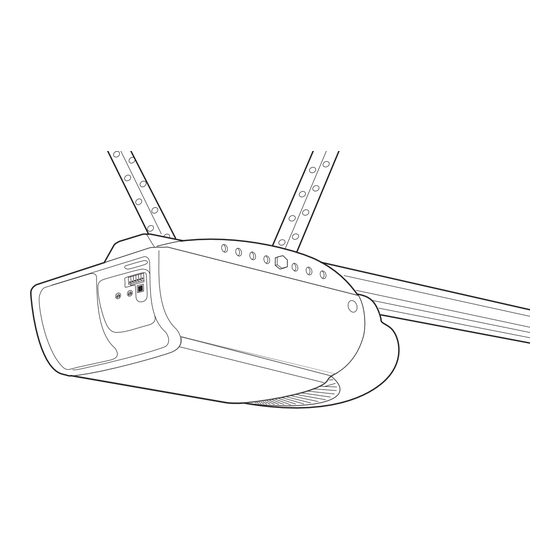

GARAGE DOOR OPENER
Model • 9950D 1/2 HP
For Residential Use Only
Owner's Manual
■
Please read this manual and the enclosed safety materials carefully!
■
Fasten the manual near the garage door after installation.
■
The door WILL NOT CLOSE unless the Protector System
properly aligned.
■
Periodic checks of the opener are required to ensure safe operation.
■
The model number label is located on the front panel of your opener.
The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
www.chamberlain.com
®
is connected and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Security+ 9950D and is the answer not in the manual?

Questions and answers

Related Manuals for Chamberlain Security+ 9950D

Summary of Contents for Chamberlain Security+ 9950D

  • Page 1 GARAGE DOOR OPENER Model • 9950D 1/2 HP For Residential Use Only Owner’s Manual ■ Please read this manual and the enclosed safety materials carefully! ■ Fasten the manual near the garage door after installation. ■ The door WILL NOT CLOSE unless the Protector System properly aligned.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction Safety symbol and signal word review...2 Preparing your garage door ...3 Tools needed ...3 Planning ...4-5 Carton inventory ...6 Hardware inventory ...7 Assembly Assemble the rail ...8-9 Fasten the rail to the motor unit and install the trolley ...10 Attach the rail brackets...11 Installation Installation safety instructions...11...

  • Page 3: Preparing Your Garage Door

    Preparing your garage door Before you begin: • Disable locks. • Remove any ropes connected to garage door. • Complete the following test to make sure your garage door is balanced and is not sticking or binding: 1. Lift the door about halfway as shown. Release the door.

  • Page 4: Planning

    Planning Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to your installation. Additional materials may be required. You may find it helpful to refer back to this page and the accompanying illustrations as you proceed with the installation of your opener.

  • Page 5: One-Piece Door Installations

    Planning (Continued) ONE-PIECE DOOR INSTALLATIONS • Generally, a one-piece door does not require reinforcement. If your door is lightweight, refer to the information relating to sectional doors in Installation Step 12. • Depending on your door’s construction, you may need additional mounting hardware for the door bracket (Step 12).

  • Page 6: Carton Inventory

    Carton Inventory Your garage door opener is packaged in one carton which contains the motor unit and all parts illustrated below. Accessories will depend on the model purchased. If anything is missing, carefully check the Multi-Function Door Control Panel Hanging Brackets Header/Rail Brackets Motor Unit with a Light Lens...

  • Page 7: Hardware Inventory

    Hardware Inventory Separate all hardware and group as shown below for the assembly and installation procedures. Bolt 1/4-20x1-3/4" (8) Carriage Bolt Wing Nut 1/4"-20x1/2" (2) 1/4"-20 (2) Lag Screw 5/16"-9x1-5/8" (2) Lag Screw 5/16"-18x1-7/8" (2) Carriage Bolt 5/16"-18x2-1/2" (2) Clevis Pin 5/16"x2-3/4"...

  • Page 8: Assembly Step

    ASSEMBLY STEP 1 Assemble the Rail To avoid installation difficulties, do not run the garage door opener until instructed to do so. 1. Turn the opened rail carton upside down and empty its contents onto a level work surface. 2. Unfold the rails, taking care to avoid kinking the screw rod joint.
  • Page 9 Assemble the Rail (Continued) 4. Beginning with the sprocket end, straighten the two rail sections so that the screw rod is in a straight line at the joint. (Avoid handling the joint, which may have sharp edges.) 5. Carefully slide the pins at the top edge of the rail into the openings on the adjacent rail.

  • Page 10: Fasten The Rail To The Motor Unit And Install The Trolley

    ASSEMBLY STEP 2 Fasten the Rail to the Motor Unit and Install the Trolley NOTE: To aid in assembly and installation, replace the foam packing around the motor unit. Remove it after Installation Step 4. • Working on a level surface, align the rail assembly with the motor unit, as shown.

  • Page 11: Attach The Rail Brackets

    ASSEMBLY STEP 3 Attach the Rail Brackets • Align rail brackets to end of rail assembly, as shown. • Insert two 1/4"-20x5/8" hex bolts and lock nuts. Tighten securely with a 7/16" socket. You have now finished assembling your garage door opener.

  • Page 12: Installation Step

    INSTALLATION STEP 1 Determine the Header Bracket Location WARNING To prevent possible SERIOUS INJURY or DEATH: • Header bracket MUST be RIGIDLY fastened to CAUTION structural support on header wall or ceiling, otherwise garage door might not reverse when required. DO NOT install header bracket over drywall.

  • Page 13: Install The Header Bracket

    INSTALLATION STEP 2 Install the Header Bracket You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements. Do not install the header bracket over drywall.

  • Page 14: Attach The Rail To The Header Bracket

    Header Wall Header Bracket Rail Bracket Rail Garage Door HARDWARE SHOWN ACTUAL SIZE Clevis Pin 5/16"x2-3/4" INSTALLATION STEP 3 Attach the Rail to the Header Bracket • Position the opener on the garage floor below the header bracket. Use packing material as a protective base.

  • Page 15: Install The Protector System

    INSTALLATION STEP 4 Install The Protector System The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction. IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSOR When properly connected and aligned, the sensor will detect an obstacle in the path of its electronic beam.
  • Page 16 INSTALLING THE BRACKETS Be sure power to the opener is disconnected. Install and align the brackets so the sensors will face each other across the garage door, with the beam no higher than 6" (15 cm) above the floor. They may be installed in one of three ways, as follows.

  • Page 17: Mounting And Wiring The Safety Reversing Sensors

    MOUNTING AND WIRING THE SAFETY REVERSING SENSORS • Slide a 1/4"-20x1/2" carriage bolt head into the slot on each sensor. Use wing nuts to fasten sensors to brackets, with lenses pointing toward each other across the door. Be sure the lens is not obstructed by a bracket extension.

  • Page 18: Position The Opener

    INSTALLATION STEP 5 Position the Opener Follow instructions which apply to your door type as illustrated. SECTIONAL DOOR OR ONE-PIECE DOOR WITH TRACK A 2x4 laid flat is convenient for setting an ideal door-to-rail distance. • Remove foam packaging. • Raise the opener onto a stepladder. You will need help at this point if the ladder is not tall enough.

  • Page 19: Hang The Opener

    INSTALLATION STEP 6 Hang the Opener Three representative installations are shown. Yours may be different. Hanging brackets should be angled (Figure 1) to provide rigid support. On finished ceilings (Figure 2), attach a sturdy metal bracket to structural supports before installing the opener. This bracket and fastening hardware are not provided (see accessories).

  • Page 20: Install The Door Control

    CAUTION INSTALLATION STEP 7 Install the Door Control Locate door control within sight of door at a minimum height of 5 feet (1.5 m) where small children cannot reach, and away from moving parts of door and door hardware. The installation surface must be smooth and flat.

  • Page 21: Install The Lights And Lens

    INSTALLATION STEP 8 Install the Lights and Lens • Install a 100 watt maximum light bulb in each socket. Light bulb size should be A19, standard neck only. The lights will turn ON and remain lit for approximately 4-1/2 minutes when power is connected.

  • Page 22: Electrical Requirements

    WARNING INSTALLATION STEP 10 Electrical Requirements CAUTION To avoid installation difficulties, do not run the opener until Step 9 below. To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will only fit into a grounding type outlet.

  • Page 23: Fasten The Door Bracket

    INSTALLATION STEP 12 Fasten the Door Bracket Follow instructions which apply to your door type as illustrated below or on the following page. A horizontal reinforcement brace should be long enough to be secured to two or three vertical supports. A vertical reinforcement brace should cover the height of the top panel.

  • Page 24: One-Piece Doors

    ONE-PIECE DOORS Please read and comply with the warnings and reinforcement instructions on the previous page. They apply to one-piece doors also. • Center the door bracket on the top of the door, in line with the header bracket as shown. Mark either the left and right, or the top and bottom holes.

  • Page 25: Connect Door Arm To Trolley

    INSTALLATION STEP 13 Connect Door Arm to Trolley Follow instructions which apply to your door type as illustrated below and on the following page. SECTIONAL DOORS ONLY • Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the inner trolley.

  • Page 26: All One-Piece Doors

    ALL ONE-PIECE DOORS 1. Assemble the door arm, Figure 4: • Fasten the straight and curved door arm sections together to the longest possible length (with a 2 or 3 hole overlap). • With the door closed, connect the straight door arm section to the door bracket with the 5/16"x1-1/4"...

  • Page 27: Adjust The Up And Down Travel Limits

    ADJUSTMENT STEP 1 Adjust the UP and DOWN Travel Limits Limit adjustment settings regulate the points at which the door will stop when moving up or down. To operate the opener, press the Door Control push bar. Run the opener through a complete travel cycle. •...

  • Page 28: Adjustment

    ADJUSTMENT STEP 2 Adjust the Force Force adjustment controls are located on the back panel of the motor unit. Force adjustment settings regulate the amount of power required to open and close the door. If the forces are set too light, door travel may be interrupted by nuisance reversals in the down direction and stops in the up direction.

  • Page 29: Test The Safety Reversal System

    ADJUSTMENT STEP 3 Test the Safety Reversal System TEST • With the door fully open, place a 1-1/2" (3.8 cm) board (or a 2x4 laid flat) on the floor, centered under the garage door. • Operate the door in the down direction. The door must reverse on striking the obstruction.

  • Page 30: Operation

    OPERATION IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of SEVERE INJURY or DEATH: 1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS. 2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with garage door control push buttons or remote controls.

  • Page 31: Using The Wall-Mounted Door Control

    Using the Wall-Mounted Door Control THE MULTI-FUNCTION DOOR CONTROL Press the lighted push button to open or close the door. Press again to reverse the door during the closing cycle or to stop the door while it's opening. Light feature Press the Light button to turn the opener light on or off.

  • Page 32: The Remote Control Battery

    CARE OF YOUR OPENER LIMIT AND FORCE ADJUSTMENTS: Weather conditions may cause some minor changes in door operation requiring some re- adjustments, particularly during the first year of operation. Pages 27 and 28 FORCE CONTROLS refer to the limit and force adjustments. Only a screwdriver is required.

  • Page 33: Having A Problem

    HAVING A PROBLEM? 1. My door will not close and the light bulbs blink on my motor unit: The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction. • Verify the safety sensors are properly installed, aligned and free of any obstructions.

  • Page 34: Diagnostic Chart

    Diagnostics Located On Motor Unit LED or Diagnostic "Learn" Button Safety Reversing Sensor Diagnostic Chart 1 FLASH Safety reversing sensors wire open (broken or disconnected). 2 FLASHES Safety reversing sensors wire shorted or black/white wire reversed. 3 FLASHES Door control or wire shorted.

  • Page 35: Programming

    If provided with your garage door opener, the large button is factory programmed to operate it. Additional buttons on any Security✚ ® 3-Button remote or compact remote can be programmed to operate other Security✚ ® garage door openers. ® remote controls.

  • Page 36: Using Multi-Function Door Control

    To Add, Reprogram or Change a Keyless Entry PIN NOTE: Your new Keyless Entry must be programmed to operate your garage door opener. USING THE “LEARN” BUTTON 1. Press and release the “learn” button on motor unit. The learn indicator light will glow steadily for 30 seconds.

  • Page 37: Repair Parts

    REPAIR PARTS Rail Assembly Parts Installation Parts KEY PART NO. NO. PART 41A5273-9 953D 10A20 29B137 41A2828 41B4494-1 41A4353 41A5047 41A5034 178B34 12B776 178B35 41A5266-1 41A4675-7 114A3054 114A3054SP Owner’s manual - Spanish DESCRIPTION 41A4796 Hardware bag 41A4795 Hardware bag (includes sprocket coupling) 12B569-1 Left rail bracket...

  • Page 38: Motor Unit Assembly Parts

    Motor Unit Assembly Parts PART DESCRIPTION 31D477 Drive shaft cover 41B4245 Line cord 30B532 Capacitor – 1/2 HP 12A373 Capacitor bracket 41A3150 Terminal block w/screws 41D4671 Limit switch assembly 12D630 Bracket: light socket, limit switch 41A5388 Motor drive assy complete with: 144B41 22T Pulley 144B42...

  • Page 39: Accessories

    ACCESSORIES 953D SECURITY✚ ® Multi-Function Remote Control: Includes visor clip. 945CB Multi-Function Door Control Panel: Provides a Lock Feature which prevents operation of garage door opener from hand-held remotes and a Light Feature for constant light. 935CB Motion Detecting Control Panel: Multi-function door control with motion sensor that automatically turns opener lights on for 5 minutes when it detects a...

  • Page 40: Repair Parts And Service

    CHAMBERLAIN The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of one year from the date of purchase [and that the motor is free from defect in materials and/or workmanship for the lifetime of the product].
