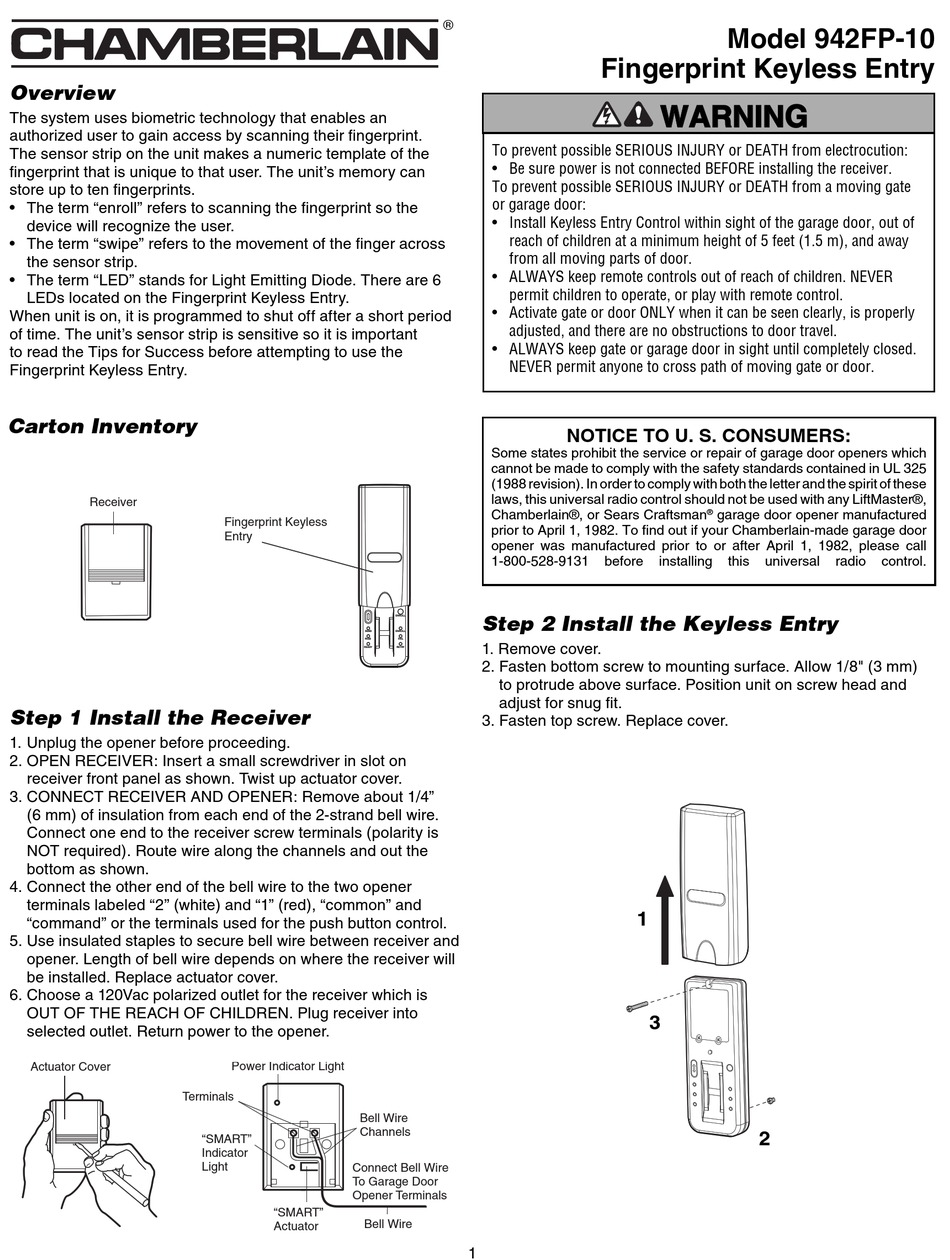

Chamberlain 942FP-10 User Manual

WARNING

Overview

CAUTION
The system uses biometric technology that enables an
authorized user to gain access by scanning their fi ngerprint.
The sensor strip on the unit makes a numeric template of the
fi ngerprint that is unique to that user. The unit's memory can
store up to ten fi ngerprints.
• The term "enroll" refers to scanning the fi ngerprint so the
device will recognize the user.
• The term "swipe" refers to the movement of the fi nger across
the sensor strip.
• The term "LED" stands for Light Emitting Diode. There are 6
LEDs located on the Fingerprint Keyless Entry.
When unit is on, it is programmed to shut off after a short period
of time. The unit's sensor strip is sensitive so it is important
to read the Tips for Success before attempting to use the
Fingerprint Keyless Entry.
AVERTISSEMENT

Carton Inventory

ATTENTION
Receiver

Step 1 Install the Receiver

1. Unplug the opener before proceeding.
2. OPEN RECEIVER: Insert a small screwdriver in slot on
receiver front panel as shown. Twist up actuator cover.
3. CONNECT RECEIVER AND OPENER: Remove about 1/4"
(6 mm) of insulation from each end of the 2-strand bell wire.
ADVERTENCIA
Connect one end to the receiver screw terminals (polarity is
NOT required). Route wire along the channels and out the
bottom as shown.
4. Connect the other end of the bell wire to the two opener
PRECAUCIÓN
terminals labeled "2" (white) and "1" (red), "common" and
"command" or the terminals used for the push button control.
5. Use insulated staples to secure bell wire between receiver and
opener. Length of bell wire depends on where the receiver will
be installed. Replace actuator cover.
6. Choose a 120Vac polarized outlet for the receiver which is
OUT OF THE REACH OF CHILDREN. Plug receiver into
selected outlet. Return power to the opener.
Actuator Cover
Terminals
Fingerprint Keyless
Entry
SEND
PASS
READY
Power Indicator Light
Bell Wire
Channels
"SMART"
Indicator
Light
Connect Bell Wire
To Garage Door
Opener Terminals
"SMART"
Bell Wire
Actuator
®
To prevent possible SERIOUS INJURY or DEATH from electrocution:
• Be sure power is not connected BEFORE installing the receiver.
To prevent possible SERIOUS INJURY or DEATH from a moving gate
or garage door:
• Install Keyless Entry Control within sight of the garage door, out of
reach of children at a minimum height of 5 feet (1.5 m), and away
from all moving parts of door.
• ALWAYS keep remote controls out of reach of children. NEVER
permit children to operate, or play with remote control.
• Activate gate or door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed.
NEVER permit anyone to cross path of moving gate or door.
NOTICE TO U. S. CONSUMERS:
Some states prohibit the service or repair of garage door openers which
cannot be made to comply with the safety standards contained in UL 325
(1988 revision). In order to comply with both the letter and the spirit of these
laws, this universal radio control should not be used with any LiftMaster®,
Chamberlain®, or Sears Craftsman
prior to April 1, 1982. To fi nd out if your Chamberlain-made garage door
opener was manufactured prior to or after April 1, 1982, please call
1-800-528-9131
ENROLL

Step 2 Install the Keyless Entry

ENROLL
FAIL
1. Remove cover.
RETRY
2. Fasten bottom screw to mounting surface. Allow 1/8" (3 mm)
to protrude above surface. Position unit on screw head and
adjust for snug fi t.
3. Fasten top screw. Replace cover.
1
Model 942FP-10
WARNING
Fingerprint Keyless Entry
WARNING WARNING
AVERTISSEMENT
AVERTISSEMENT
®
garage door opener manufactured
before installing this universal
ADVERTENCIA
ADVERTENCIA
1
3
2
radio control.
