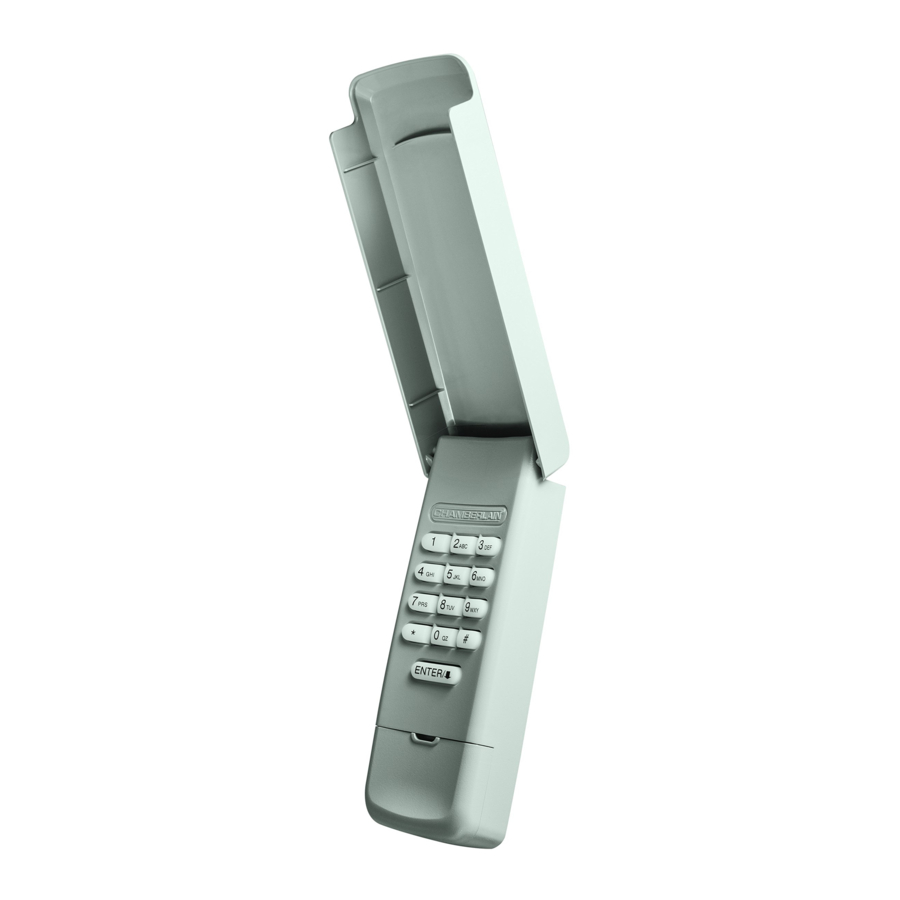

Chamberlain 940EV, 940EV-P2, 940EVC, 940EVC-P2 - Keyless Entry System Manual

INTRODUCTION

For use with Chamberlain garage door openers manufactured after January 1, 1993. The garage door opener activates when the 4-digit Personal Identification Number (PIN) and ENTER button are pressed on the Keyless Entry.
Install the battery and program the Keyless Entry prior to installation. Make sure the garage door opener has a working light bulb because it is a programming indicator.

GETTING STARTED

Locate the Learn button on the garage door opener. NOTE: Your garage door opener may look different.

PROGRAM

1. Press and hold the * and # buttons until the lights on the keypad stop blinking.

2. Enter a 4-digit personal identification number (PIN) of your choice, then press the # button.

3. Press and release the ENTER button on the Keyless Entry the number of times that corresponds with your garage door opener type:


   GARAGE DOOR OPENER TYPE	# OF PRESSES
   Yellow Learn Button (315 and 390 MHz Security+ 2.0®)	1
   Purple Learn Button (315 MHz Security+®)	2
   Red/Orange Learn Button (390 MHz Security+®)	3
   Green Learn Button (390 MHz Billion Code)	4

4. Press and release the 0 button.

5. Press and release the Learn button on the garage door opener. The Learn LED will light. Within 30 seconds...

6. Enter your 4-digit PIN, then press and release the ENTER button until the garage door opener lights flash or two clicks are heard.

7. To test, enter your PIN, then press the ENTER button. The garage door opener will activate.


To program the Keyless Entry to more than one garage door opener, repeat the programming steps using a new PIN for each additional garage door opener.
For additional programming instructions or additional help please visit
http://www.chamberlain.com/CatalogResourcesV3/en-us/shared/files/tucmanuals/114A5071.pdf

INSTALLATION

1. Select a location to mount the Keyless Entry at a minimum height of 5 feet (1.5 m) out of the reach of children.
2. Remove battery cover and battery.
3. Mark the top mounting hole and drill 1/8 inch (3.2 mm) pilot hole.
4. Install the top screw, allowing 1/8 inch (3.2 mm) to protrude above the surface. Position the Keyless Entry over the top screw.
5. Mark the bottom hole and drill 1/8 inch (3.2 mm) pilot hole. Install the bottom screw. Do not overtighten to avoid cracking the plastic housing.
6. Reinstall battery and replace cover.

OPERATION

The garage door opener activates when the PIN and ENTER button are pressed. The keypad will blink for 15 seconds, during that time the ENTER button can be used to stop, start or reverse the door.
If the wrong number is accidentally pressed, press the correct PIN then the ENTER button. The Keyless Entry will transmit only the last four digits that were pressed before the ENTER button.
ONE BUTTON CLOSE: The Keyless Entry has a feature that allows the door to be closed using the ENTER button instead of a PIN.
NOTE: This feature is not available on garage door openers manufactured prior to 2006 or an external receiver.

To deactivate the one button close feature:
Press and hold the 1 and 9 buttons for 10 seconds. The keypad will blink four times when the one button close feature is deactivated.

To activate the one button close feature:
Press and hold the 1 and 9 buttons for 10 seconds. The keypad will blink twice when the one button close feature is activated.

BATTERY

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.

Replace the battery when the keypad becomes dim or does not light after a button is pressed.
Dispose of old battery properly.

Wireless Keypad 940EV: IFT #: RCPCH9418-0361
Wireless Keypad 940EVC: IFT #: RCPCH9418-0361-A1

REPLACEMENT PARTS

Battery: 10A25
Keypad Cover: 41D621
Battery Cover: 41D541

To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door:

• Install Keyless Entry Control within sight of garage door, out of reach of small children at a minimum height of 5 feet (1.5 m) above floors, landings, steps or any other adjacent walking surface, and away from ALL moving parts of door.
• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote controls.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.
