Richell Easy-Lock Instruction Manual

Instruction Manual
Thank you for choosing Richell's Easy-Lock Pet Gate. Please read this instruction manual carefully before
assembling or using this product, and keep for future reference.
1 .
Usage
This product is designed for small and medium dogs, 8.8-44 lbs. (4-20 kg). No screws or additional tools are
needed to mount the product in a doorway or hallway opening with width of 28.3-35.4" (72-90 cm).
Small dogs Terrier, Dachshund, Chihuahua
Medium dogs Beagle, Schnauzer, Spaniel
2 . Features
Designed for placing against the wall or within
the door frame using the tension spring effect.
Before installing, the top width of frame will be wider than the
bottom because the product is designed to be mounted using
the tension spring effect. Tighten the top Adjuster Knob to create
the same spacing between the Gate Door and the Main Frame.
When closed, the Gate Door is locked automatically.
If too much or too little force is used when closing, the Gate Door may not lock.
Note
l Be sure the Gate Door is locked (at bottom and top) when it is closed.
l If the Gate Door is pushed too hard when closing, it may overpass the
Gate Lock and cause damage to Upper/Lower Gate Locks and wooden
parts.
3 . Parts/Specifications
Before assembling, be sure all parts are included, as shown.
Upper Gate Lock
Main Frame
Gate Door
Lower Gate Lock
Body

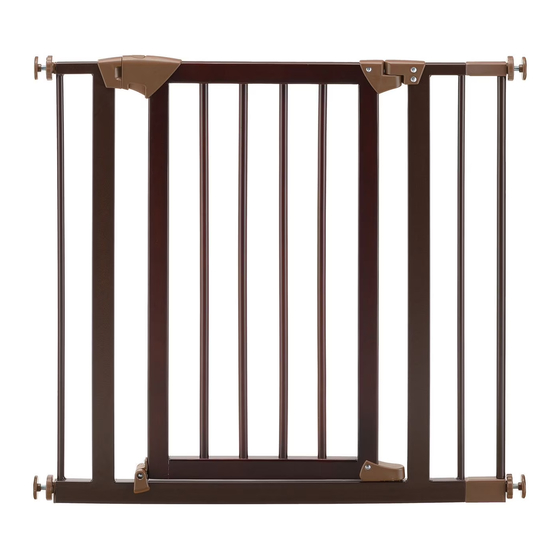

Easy-Lock Pet Gate
Examples of dog types (8.8-44 Ibs./4-20 kg)
Do not use with pets exceeding 44 Ibs (20 kg)
Side Frame can be adjusted to keep pet confined.
Adjust the clearance using the Side Frame to keep pets properly
confined.
1.8" (4.5 cm) and under
1.8" (4.5 cm) and under
Side Frame
lock
lock
Adjuster Knob
Hexagonal Nut
Short Adjuster Bolt
Long Adjuster Bolt
(4)
Short Adjuster Bolt (1)
Adjuster Knob (1)
Hexagonal Nut (2)
Side Frame (2) Adjuster set (packed)
1
4 .
Cautions
l Do not use the product for anything other than its intended purpose.
l Injury or death to pet may be caused if pet behaves unexpectedly if startled by thunder and lightning,
or other animals. Keep the product in a place where it remains in sight, and keep it open when unattended.
l Take caution not to stumble when stepping over the bottom of frame.
l Do not place the product at the top of staircase or near a glass door.
l Lock the Gate Door to keep pets properly confined (Fig. 8).
l Be sure to place the product against walls with a width of 2.4" (6 cm) and above, and on a flat sturdy surface
(Fig. 7).
l This product fits openings from 28.3-35.4"(72 to 90 cm). Do not place the product outside this range (Fig. 6).
l Keep the product away from fire or extremely high temperatures.
l Do not use a leash with your pet when using this product. Pet could become tangled.
l Do not lean or sit on the product.
l Tighten Adjuster Knob at the space between Main Frame and Lower Gate Lock to 0.08-0.12"(2-3 mm)
so that the tension spring effect works properly (Fig. 4).
l Tighten Adjuster Knob at the space between Main Frame of Upper Gate Lock to 0.04-0.08"(1-2 mm) so that
the tension spring effect works properly (Fig. 5).
l Be careful of sharp objects while assembling.
l Make sure the Gate Door is locked when it is closed.
l Place the product against sturdy wall surfaces (locate studs) to prevent damage to the wall surface.
l Use the product carefully. Do not drop or hit it.
l Be sure the product is securely fixed. If not, tighten Adjuster Knobs as necessary (Fig. 7).
l Do not try to force the Gate Door open past 90 degree angle.
5 . Before assembling
l Decide which of the optional parts will be used to assemble the product.
l Parts needed will vary, depending on your doorway/hallway
opening, as shown below. Keep parts away from children.
l To attach the product in opening with width of 30.7-35.4"(78-90 cm),
use the Side Frame. Adjust Hexagonal Nuts until the clearance
between each Frame is set to 1.8" (4.5 cm) and under as shown.
l Tighten Hexagonal Nuts after adjusting the clearance.
Type A
Insert Adjuster Knob through Short Adjuster Bolt.
Short Adjuster Bolt
6 . Examples of assembly
Examples of assembly
28.3-30.7"
For opening widths
●
(72-78 cm)
Type A
Insert
Required Parts
Body
Short Adjuster Bolt
Adjuster Knob
4 Sets
Type A
Insert
Hexagonal Nuts
Type B
Attach Hexagonal Nut, Side Frame, another Hexagonal
Nut, and Adjuster Knob to Long Adjuster Bolt, in this order.
Hexagonal Nut
Long Adjuster Bolt
Adjuster Knob
Side Frame
Set the desired width while tightening Upper Adjuster Knob.
30.7-33.1"
For opening widths
●
(78-84 cm)
Type A Type A Type B
Insert Insert Insert
Required Parts
Body (1)
(1)
(4) Short Adjuster Bolt (2)
(4) Long Adjuster Bolt (2)
Adjuster Knob (4)
Side Frame (1)
Hexagonal Nuts (4)
Type A Type A
Insert Insert Insert
2
1.8" (4.5 cm) and under
1.8" (4.5 cm) and under
Side Frame
Adjuster Knob
33.1-35.4"
For opening widths
●
(84-90 cm)
Type B Type B
Insert Insert
Required Parts
Body (1)
Long Adjuster Bolt (4)
Adjuster Knob (4)
Side Frame (2)
Hexagonal Nuts (8)
Type B Type B
Insert Insert
