Richell Také One-Touch Instruction Manual

Thank you for choosing Richell's Také One-Touch Pet Gate. Please read this instruction manual carefully before using this product,
and keep for future reference. If you give this product to someone else, please also give this instruction manual to the new owner.
Please note that some parts of the figures shown below may be slightly different from the actual product, for your better
understanding of the structure and proper use of the product.
1. Appropriate Pet Weight for Proper Usage
This product is designed for small to medium size dogs, 8.8-44lbs (4-20kg). No screws or additional tools are needed to mount
the gate in a doorway or hallway opening of 28.3 - 35.8" wide (72-91cm).
Examples of appropriate dog types: should weigh between 8.8 - 44lbs
*Do not use this product if your dog weighs less than 8.8 lbs or more than 44 lbs.
Medium Dog*
Small Dog*
2. Features
lTension-mount design is safe to use on wall surfaces.
Designed for placement against a wall or within a door frame
using a tension-spring effect. The extra width at the top of the
Main Frame is not a defect. The top of the gate will be wider
than the bottom before installation because of the tension-spring
design of the product. Tightening the top Adjuster Knobs will
create the same spacing between the Gate Door and the Main
Frame during installation.
*The top width of the frame may be wider than the wall since
the product is designed to be installed using a tension-spring
effect. If necessary, use force to make the top of the gate
narrower to fit between the wall.
Tension-force
3. Parts/Specifications
Holes
(4)
Main Frame
What are the following signs?
The following signs are special remarks for safety use of the product.
Keep these remarks in mind before using this product.
Warnings!
: Remarks on inappropriate use which might cause death, serious injury and/or physical damage.
Cautions!
: Remarks on inappropriate use which might cause slight injury and/or physical damage.
Important!
: Remarks on inappropriate use which might cause trouble, damage and/or shorter life to product.
Warnings!
lIMPORTANT: This product includes a bottom bar that is part of the Main Frame. The bottom bar should
touch the floor when correctly installed. Pay close attention while stepping over the bottom bar for safety.
Instruction Manual
Welsh Corgi, Spitz, etc
Shih Tzu, Pomeranian, Miniature Dachshunds, etc.
Tension-force
Lock Bottom
Door
Door Handle
Door Stopper
Main Frame (1)
lSide Frame or Option Frame can be adjusted to
keep pet properly confined.
Adjust the clearance between the slats on the Side Frame
or Option Frame to keep pet properly confined. Adjust the
clearance between the slats on the Side Frame or Option
Frame to keep pet properly confined.
Option Frame
Less than 2"
Hexagon Nut
Long Adjuster
Adjuster
Bolts
Knob
l Adjuster Set (1 bag)
Long Adjuster Bolts (1)
Adjuster Knob (1)
Hexagon Nut (2)
x 4 set
Side Frames (2)
1

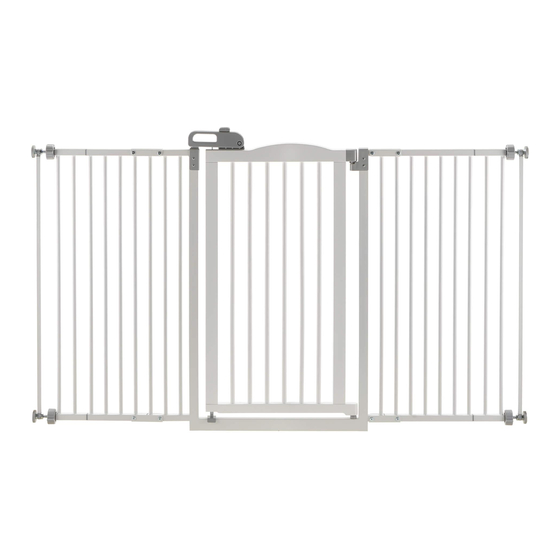

Také One-Touch Pet Gate
Less than 2"
Side Frame
Joint
Option Frame
Short Adjuster
Bolts (2)
lOption Frame Set (1)
Option Frame: 1
x 1 set
Joint: 2
94181
