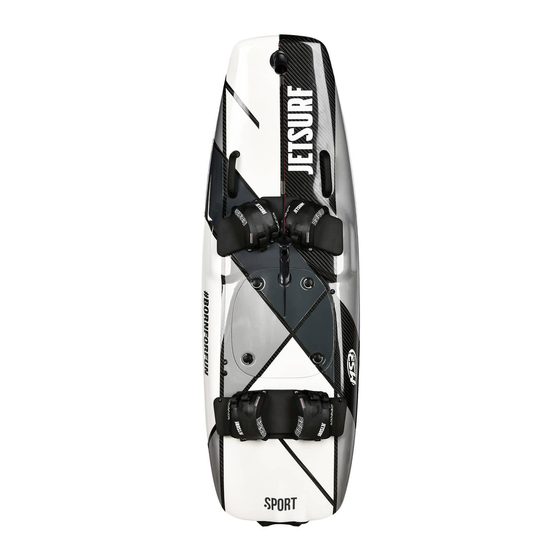

USER
MANUAL
version 19-C001/EN_SPORT_partB
p a r t
B
m o d e l
SPORT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPORT and is the answer not in the manual?

Questions and answers

Related Manuals for JETSURF SPORT

Summary of Contents for JETSURF SPORT

  • Page 1 USER MANUAL version 19-C001/EN_SPORT_partB p a r t m o d e l SPORT...

  • Page 2: Table Of Contents

    ARRANGEMENT OF JETSURF AND IT’S ACCESSORIES IN BOARD BAG . . . . . . . . . . . . . . . .

  • Page 3: Arrangement Of Jetsurf And It's Accessories In Board Bag

    User manual part A and B Technical certificate N O T I C E : If the JetSurf is packed in a box, the stand (2), fins (4a, 4b) and the tool bag (5) is packed in the box outside the board bag.

  • Page 4: Description

    DESCRIPTION DESCRIPTION 1B DESCRIPTION Throttle cable cord Control Handle page 15 Snorkel Throttle cable Grip Engine compartment hood Engine cooling system output Indicátor nozzle page 22 Side fin (incl. screw) Main fin remove for transport remove for transport Bilge pump Hood latch output nozzle...
  • Page 5 DESCRIPTION Ignition control unit (ICU) Engine starter Carburettor (without a coil) page 24 page 17 page 18 Engine Fuel tank page 12 MSR 50.2 page 26 Ignition coil Electric bilge pump page 23 Jet pump EXHAUST 43.2, including a small container (single-way valve) page 14 spark plug...
  • Page 6 DESCRIPTION DESCRIPTION Timing sensor (Hall probe) Cable to the engine starter Spark Plug ENGINE STARTER Engine holder CARBURETTOR Difusor ENGINE 50 .2 Freewheel Main Gear Countershaft Gear Throttle shaft control 1 9 - C 0 0 1 / E N _ S P O R T _ p a r t B 1 9 - C 0 0 1 / E N _ S P O R T _ p a r t B...

  • Page 7: Fuel Tank

    If you find an obvious damage or leak of the fuel tank or fuel system, DO NOT START THE ENGINE! Immediately call the authorised dealer of JetSurf™ to assess the fault. Leaking fuel The fuel tank can be removed easily by releasing clips (couplings) in the fuel route which are situated may cause serious damage to the environment and it could be a potential dangerous situation near the carburettor.

  • Page 8: Exhaust

    - Throttle cable ( m a r k e d 6 ) . The throttle trigger is situated on the handle, at the end of the throttle cable. JetSurf™ recommends controlling the throttle with your index finger. When the throttle trigger is pressed, you let more fuel in, when it is released, you let less fuel in.

  • Page 9: Engine Starter

    It is ABSOLUTELY NECESSARY for the rider to release the control han- dle when he/she loses full control over the board or his/her balance. By NEVER START JETSURF IF YOU HAVE WATER pulling the engine shut-off key from the engine shut-off switch you will IN THE ENGINE (DROWNED ENGINE).

  • Page 10: Ignition Control Unit (Icu)

    F I G U R E 3 Never try to charge the ignition control unit (ICU) using another charger ENGINE CLEANING different from the one specified by JetSurf™. This may result in which – removing water or fuel from the engine permanent dam.

  • Page 11: Signalling Of Ignition Control Unit (Icu) Faults

    DESCRIPTION DESCRIPTION The ignition control unit (ICU) is connected with the other components using these cables. SIGNALLING OF IGNITION CONTROL UNIT (ICU) FAULTS The numbers of the positions in the table correspond to the numbers in the following figure: The indicator is lit The ndicator is not lit central connector Course of signalling...

  • Page 12: Indicator

    Switch off Refuel fully Switch on Riding The bilge pump suck water from the internal area of JetSurf. It is a vital part for the JetSurf operation. fuel tank During every ride, check whether the pump work properly. shut-of key...

  • Page 13: Carburetor

    FIRST LOOSEN THIS NUT. When the freewheel has been set, retighten it. JetSurf motorized surfboards are certified to the United States En- The freewheel must be set at the operating speed of the engine (the engine should be running for vironmental Protection Agency (EPA) as conforming to the require- some time).

  • Page 14: Engine

    Have the engine and the fuel Starter DC motor WARNING system repaired by an authorised JetSurf™ seller before restarting the Battery Li-Ion 73 Wh (6,6 Ah); nominal voltage 11,1 V; maximum charging voltage is 12,6 V operation.
  • Page 15 +56 9 9327 7522 fhornauer@gmail.com HEADQUARTERS INTERNATIONAL Czech Republic, +420 774 60 27 01, info@jetsurf.com Monday–Friday 8:00–17:00 CET 1 9 - C 0 0 1 / E N _ S P O R T _ p a r t B...
  • Page 16 NOTE 1 9 - C 0 0 1 / E N _ S P O R T _ p a r t B...
  • Page 17 .jetsurf .com...
