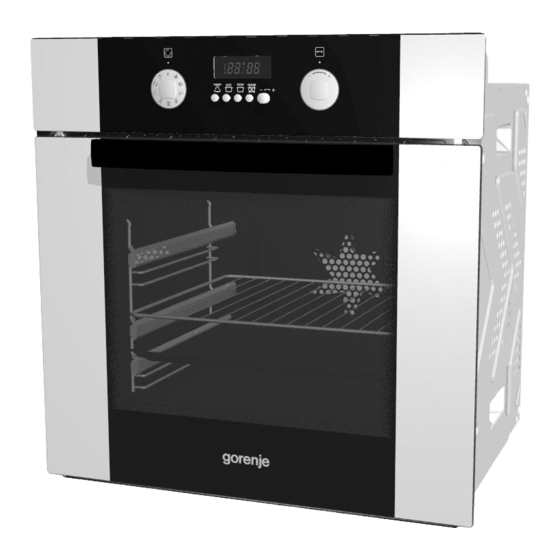

Electric oven
Dear Customer!
Congratulations on your purchase. See for yourself: our
products read reliability.
These ample instructions have been compiled in order to help
you learn how to handle the appliance. They will show you step
by step what your appliance is capable of, so please read them
carefully before you attempt to use your cooker for the first
time.
Contents
Safety precautions ........................................................ 34
Intended use
Push-pull Knobs
Control Lamps
Description of the appliance ........................................ 35
Prior first use ................................................................ 36
Oven............................................................................... 36
Safety precautions
• To avoid any possible hazard, the appliance may be
installed by qualified personnel only.
• Any repairs by unqualified persons may result in electric
shock or short circuit. In order to avoid possible injuries to
your body or to the appliance, do not attempt any repairs by
yourself. Such work should be carried out by qualified
service personnel.
• Warning! Never let small children in the vicinity of the
cooker; they are not yet aware of danger of burns. Older
children may use the appliance only under your surveillance.
• Danger of burns! Oven and cooking accessories may
become very hot during operation. To avoid burns use
kitchen clothes and gloves when handling hot parts or
utensils.
• Mains lead of adjacent appliances may be damaged by
hotplates or if stuck between the oven doors, and produce
short circuit, therefore keep them at safe distance from the
appliance.
• Never clean the oven with the high-pressure steam cleaning
device, as it may provoke short circuit.
• Oven door may become very hot during operation.
Therefore, some models are equipped with the third glass to
reduce the surface heat of the glass, as an extra protection
against burns.
• The appliance is manufactured in compliance with the
relevant effective safety standards. Nevertheless, we
strongly recommend that persons with impaired physical,
motoric, or mental capacity, or persons with inadequate
experience or knowledge, do not use the appliance unless
attended by a qualified person. The same recommendation
applies when the appliance is used by persons of less-than-
legal age.
34
Safety warnings are listed on page 34.
The first thing to do is to check if your appliance has arrived
undamaged. In case you find any transport damages, please
report it immediately to your local dealer, or to the regional
warehouse which supplied the appliance. You will find their
phone numbers on the invoice or on the delivery note.
We hope your cooker will successfully serve its purpose for
many years.
Cleaning and maintenance ...........................................42
Troubleshooting guide ..................................................44
Replacement of parts ....................................................44
Instructions for installation and connection ...............44
Installation of electric oven ..........................................45
Electric connection........................................................46
Technical information...................................................46
After sale service ...........................................................47
Intended use
This appliance is intended for use in your household. Never
use the appliance for any other purpose!
These instructions describe in detail all the particulars and
possibilities of its use.
Push-pull Knobs
(certain models only)
In order to operate the knob, you first have to slightly press the
knob, until it jumps out and then select the settings for the
cooking zones, the temperature of the oven and the operating
mode. When the cooking zone or the oven is on, the ring
around the corresponding knob is illuminated. When finished
cooking, turn the knob to starting position and slightly push it
back.
WARNING!
Push-pull knob can be pulled out and pushed back only when
in non-operating, i.e. starting position.
Control Lamps
Illuminated dials
(certain models only)
The dial above the active knob is illuminated when the oven is
switched on.
Red Light
The red light comes on when the oven heaters are operating
and goes off when the preset temperature is reached.
Instructions for use, installation and connection
GB IE MT
Advertisement
Table of Contents
Related Manuals for Gorenje B 7580 E
Summary of Contents for Gorenje B 7580 E
-
Page 1: Table Of Contents
Electric oven GB IE MT Safety warnings are listed on page 34. Dear Customer! The first thing to do is to check if your appliance has arrived Congratulations on your purchase. See for yourself: our undamaged. In case you find any transport damages, please products read reliability. -
Page 2: Cooling Fan
door is opened, and restarts the heating when the oven door is Cooling fan closed again. (certain models only) The symbol on the product or on its packaging The appliance is equipped with a built-in cooling fan, cooling indicates that this product may not be treated as the casing and the control panel of the appliance. -
Page 3: Prior First Use
Prior first use • Heating of empty oven consumes a lot of energy. Save it by Oven baking several pizzas or cakes consecutively, one after the Take all the accessories out of the oven and clean it with warm another, while the oven is still warm from the previous water and your usual mild detergent. -
Page 4: Deletion Of Any Time-Related Program And/Or Temperature
seconds the symbol (S1) stops flashing, and the countdown Modes of operation starts. Display indicates time of day or oven temperature (if the oven Oven may be used in the following modes. is in operation). By pressing button (1) you can check the remaining time and Oven illumination correct it as required. -
Page 5: Oven Guide Levels
Oven accessories Ventilator with hot air (differ according to different models) The fan at the rear forces the air around the roast or pastry. It Oven grid shelf for placing pans and trays, or for food to be is suitable for roasting and baking at more than one level. prepared using the grill. - Page 6 • Cookies, like for example muffins, should be of equal size and do not rely on any previous experience, because information indicated in the baking tables have been and thickness. Uneven cookies are baked unevenly. • If you bake more than one cake at the same time, it may determined and tested specially for this particular type of oven.
-
Page 7: Roasting
type of meat, its size and quality, so you may expect some Roasting variations. • Roasting of large chunks of meat may produce excessive Best results are obtained with the engagement of both upper and lower, or with hot air. steaming and dew formation at the oven door. -
Page 8: Grilling And Browning (Barbecue)
• Dark beef meat is grilled quicker than lighter pork or veal. Grilling and browning (barbecue) • Clean the grill, the oven and the accessories each time after • Take extra precautions when grilling. Intensive heat use. from infrared heater makes the oven and the Broaching accessories extremely hot. -
Page 9: Preserving Of Fruit And Vegetables
• Insert the pan with jars into the second guide from bottom Preserving of fruit and vegetables up. Set the temperature regulation knob to 180°C. Pre- Use the bottom heater mode together with heating of oven is not necessary. • Watch the jars all the time. Once the liquid in the jars starts the fan boiling, follow the instructions from the Preserving Table. - Page 10 door completely, remove the hinge clamps from the upper Catalytic coating of the oven hinge latches and return them into the horizontal position. (certain models only) • Catalytic enamel is soft and sensitive to rubbing and therefore we warn against the use of abrasive cleaning agents and sharp objects.
-
Page 11: Troubleshooting Guide
Troubleshooting guide Any unskilled attempt to repair the appliance is extremely Signal lamp does not turn on..dangerous as it might cause electric shock and short circuit. To • are all the required switches properly activated? avoid such injuries any repairs may be performed only by •... -
Page 12: Installation Of Electric Oven
Installation of electric oven • Panels and furniture lining of the kitchen cabinet receiving because you may damage the cabinet sides or the enamel of the appliance. the hob must be treated with temperature resistant adhesives (100°C), otherwise they might be discoloured or deformed because of inadequate temperature resistance. -
Page 13: Electric Connection
Electric connection Electric connection may be carried out by Connection • Using the screwdriver open the connector cover at the rear qualified service personnel only! Wrong connection may permanently of the appliance. Release two locks located at either side of damage parts of the appliance and render your warranty the connector bottom. -
Page 14: After Sale Service
After sale service Repairs If you find your cooker malfunctioning and requiring repair, contact our nearest service center and quote the code and the type or model of the appliance. Attached is the list of service centers with addresses and phone numbers.
