RBW205 Room Control Module
Application
RBW205 is a room control module with room
temperature sensor, manual setting of the room temper-
ature setpoint and LED status to use on a controller
RCN.
Variant with a graded range of functions are available:
Set room temperature, manual and automatic fan control,
presence button (present/absent).
Content
Important Information Regarding Product Safety ..................................................................................................2
Item........................................................................................................................................................................3
Technical Data.....................................................................................................................................................3
Accessories (not included in delivery) .................................................................................................................3
Dimensions ..........................................................................................................................................................4
Connection...........................................................................................................................................................5
Mounting ................................................................................................................................................................6
Using the Software ................................................................................................................................................8
Setting the room temperature ..............................................................................................................................8
Energy saving mode ............................................................................................................................................8
CAN Address Setting.............................................................................................................................................9
Installation..............................................................................................................................................................9
Notes for service technicians.................................................................................................................................9
Technical brochure NA 14-52A
RBW205
Page
Advertisement
Table of Contents
Related Manuals for CIAT RBW205
Summary of Contents for CIAT RBW205
-
Page 1: Table Of Contents
Product Description RBW205 RBW205 Room Control Module Application RBW205 is a room control module with room temperature sensor, manual setting of the room temper- ature setpoint and LED status to use on a controller RCN. Variant with a graded range of functions are available: Set room temperature, manual and automatic fan control, presence button (present/absent). -
Page 2: Important Information Regarding Product Safety
Important Information Regarding Product Safety Safety Instructions This data sheet contains information on installing and commissioning the product "RBW205". Each person who carries out work on this product must have read and understood this data sheet. If you have any questions that are not resolved by this data sheet, you can obtain further information from the supplier or manufacturer. -
Page 3: Item

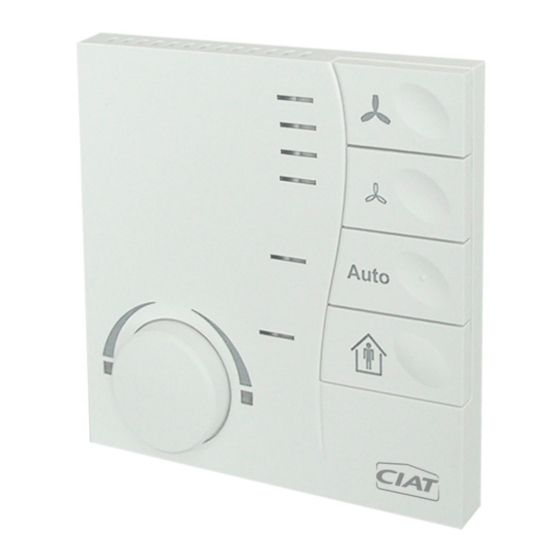

Product Description RBW205 Item RBW205 Room control module with room temperature sensor, setting of room tem- perature setpoint made using knob (with LED indicator) with presence but- ton, buttons for fan control (higher/lower), button for automatic fan mode, each with LED indicators... -
Page 4: Dimensions
Technical brochure NA 14-52A RBW205 Product Description Dimensions 90.0 23,0 Ø 16,0 Page 4 / 10... -
Page 5: Connection
Technical brochure NA 14-52A Product Description RBW205 Connection 17 18 19 20 Sample connection 24V~/ 24V~/ 24V~/ 230V~ 230 V~ 230 V~ 230V ~ max. 0,4 A 3 A (2 A) 10 A Y4 0V K7 K8 K9 24 25... -
Page 6: Mounting
Technical brochure NA 14-52A RBW205 Product Description Mounting CAUTION Installation and removal may only be carried out by qualified technicians when the power is switched off. Choose an installation location that is subject to the air flow of the room to ensure that the room controller can quickly and accurately measure the room temperature. - Page 7 Technical brochure NA 14-52A Product Description RBW205 Installation on a standard flush-mounted box (4-wire connection to terminal) Page 7 / 10...
-
Page 8: Using The Software
Technical brochure NA 14-52A RBW205 Product Description Using the Software Knob Rotate: Set the value (e.g. temperature). Left: Lower it (blue LED). Right: Raise it (red LED) Presence button (power save button): Switch between “Present” and “Absent”. Green LED (ON): “Present”... -
Page 9: Can Address Setting
