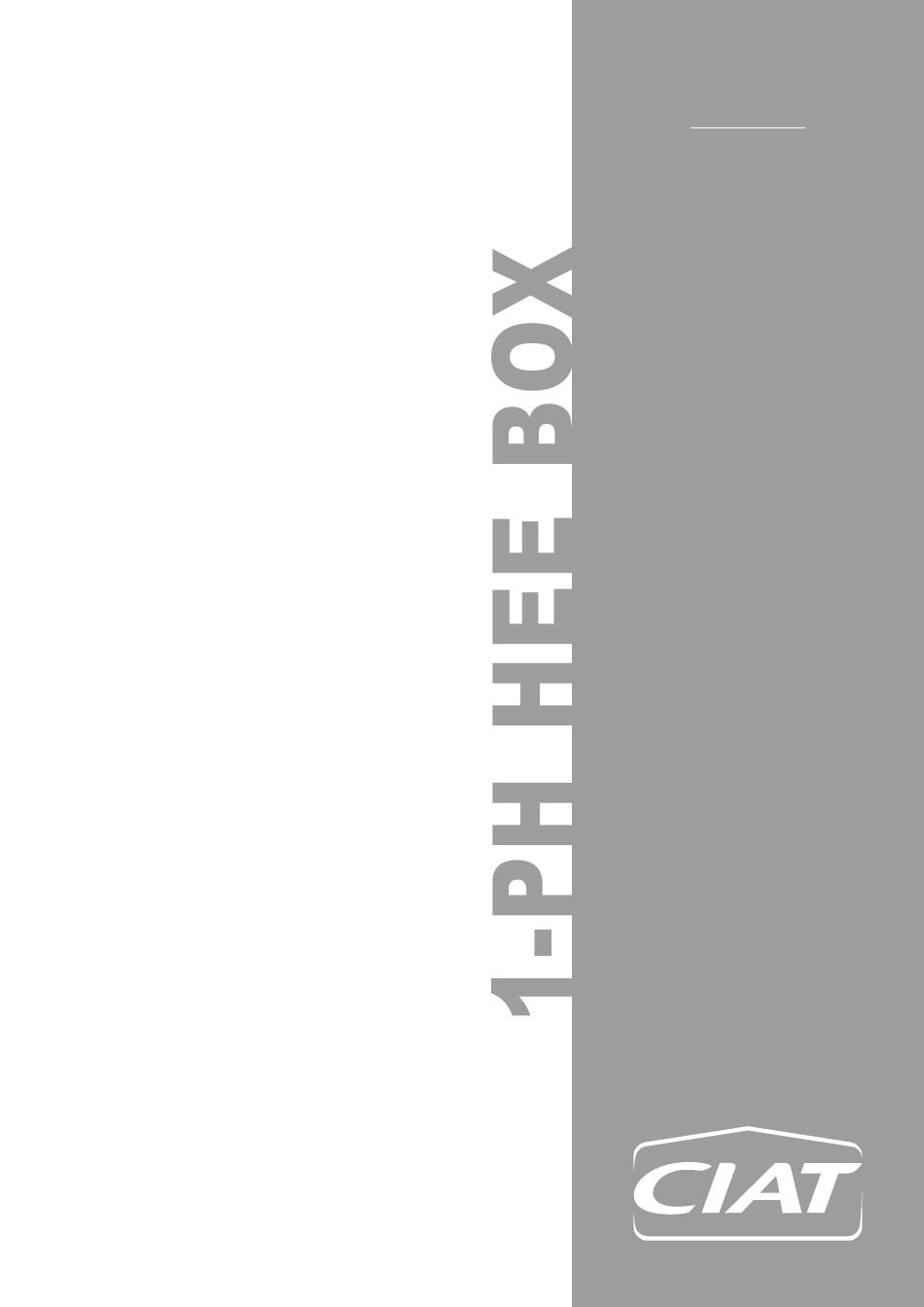

- Page 1 EN7515391-02 05 - 2019 Control manual...
- Page 2 1-PH HEE BOX EN-2...
-
Page 3: Table Of Contents
6.1 Description of faults displayed in the alarms menu ....................... 22 6.2 Fault table ....................................22 7 - MONITORING ..................................23 7.1 CMS....................................... 23 7.2 The datapoint database ................................. 23 7.3 Modbus ....................................23 Original text: French version EN-3 1-PH HEE BOX... -
Page 4: Monitoring And Regulation
2: to adjust the values of the monitoring parameters (increase) Enter key: Used to access the various menus from the drop-down menu to validate the data entered. + Unit on/off: press these keys simultaneously to switch the unit on/off. 1-PH HEE BOX EN-4... -
Page 5: The Controller
TPL or air heater fan speed Hydraulic coil Changeover Fresh air damper control Antifreeze thermostat Air heater fan operation feedback TPL fan operation feedback Danger fault summary relay Remote control Maintenance fault summary relay DI10 NO10 NO11 NO12 EN-5 1-PH HEE BOX... -
Page 6: Configuring The Controller
Trm1 32 Sh Trm2 None Trm3 None -- Ok?No ● Go to 'No' by pressing several times, select 'Yes' by pressing then The controller now has the correct address in Master mode only. 1-PH HEE BOX EN-6... -
Page 7: Configuring With Slave Hee Mono Boxes Only
Change the pLan address to 3 by pressing , then press If you have other Slave HEE Mono Boxes to connect, simply adjust point b) by increasing the pLan address by 1 each time (e.g. 3rd slave: pLan address 4, 4th slave: pLan address 5, etc.). EN-7 1-PH HEE BOX... - Page 8 P:01 Adr Priv/Shared Trm1 -- Pr Trm2 None Trm3 None -- Ok?No ● Set Trm1 to 32 by pressing , press ● Set value 'Pr' (Private) to 'Sh' (Shared) by pressing , press 1-PH HEE BOX EN-8...
- Page 9 Set value 'Pr' (Private) to 'Sh' (Shared) by pressing , press P:01 Adr Priv/Shared Trm1 32 Sh Trm2 None Trm3 None -- Ok?No ● Go to 'No' by pressing several times, select 'Yes' by pressing then EN-9 1-PH HEE BOX...
-
Page 10: State Of The Plan
The cards must be connected in parallel using the J7 or J8 connector. The first and last controller must be no more than 500 m apart. See diagram above "Networked controller" 1-PH HEE BOX EN-10... -
Page 11: Addressing The Plan
Indicates the unit run or shutdown request 00.0°C Indicates the ambient temperature 00:00 Indicates the time Indicates the "Heating" operating mode. When there is a request, the pictogram is activated. Indicates fan operation. When there is a request, the pictogram is activated. EN-11 1-PH HEE BOX... - Page 12 To confirm your choice, simply press The available menus are as follows: Setpoints Machine status Mach. parameters Adjust. params Reading parameter Test mode Timer programming Communication Alarms Access level selection Program version 1-PH HEE BOX EN-12...
-
Page 13: Setpoint Menu
Fresh air damper present 1 - YES 0 - NO TPL present 1 - YES If controller type ≠ slave Air heater sensor calibration °C without sensor TPL sensor calibration °C If present TPL = YES EN-13 1-PH HEE BOX... -
Page 14: Settings Parameters Menu
Cold integration time op. min. Def. mixed High temperature fault P140 °C Stp + Band threshold High temperature fault time P141 delay Low temperature fault P142 °C Stp + Band threshold Low temperature fault time P143 delay 1-PH HEE BOX EN-14... -
Page 15: Read-Only Parameters Menu
Eco/Comfort If P116 = 2 or 3 4.6 Versions Menu U :01 PROGRAMME HELIO Control V 03.00 11/07/16 Bios : 06.42 Boot : 04.05 Shows the name and version of the program installed on the microprocessor. EN-15 1-PH HEE BOX... -
Page 16: Time Schedule
To view faults that are still present, press the keys (see description of faults in paragraph 5.1) The following screen appears when no faults are present: Pas de défauts ! 1-PH HEE BOX EN-16... -
Page 17: Test Mode Menu
Visible only if the current level = 1 or 2, used to access or return to level 3 If level 1 access selected Niveaux accès ACCES NIVEAU 1 Retour au niveau 1 : If yes back to access level 1 EN-17 1-PH HEE BOX... - Page 18 Retour au niveau 2 : Re-enter the manufacturer password The level 2 password can be reset to the factory value. To do this, go to level 2 access and press the "Prg" key for 10 seconds. 1-PH HEE BOX EN-18...
-
Page 19: Communication Menu
CMS or time schedule. Comfort P122 Heating operation Cooling operation Max. speed P121 Min. speed Room T° P135 P130 Hot Proportional Band Cold Proportional Band Heating setpoint Cooling setpoint P152 or P153 P150 or P151 EN-19 1-PH HEE BOX... - Page 20 "COMFORT" position: the 0-10 V signal will depend on the difference between the regulated temperature value (room) and the setpoint. Regulation will only start after a 30-second time delay on the fan operation feedback contact. An integral action must be entered into the parameters. 1-PH HEE BOX EN-20...
-
Page 21: Tpl Regulation
TPLs are destratifiers which can only be regulated according to the fan speed. This is calculated from the difference between the room temperature measured by the sensor in the Master 1-ph HEE BOX (or remotely if this option has been chosen) and the sensor fitted in the TPLs. -
Page 22: The Fault Relays
- Replace filter Filter blocked filter 0-1000 Pa Damper limit switch - Closing problem - See causes Isolation damper Pump operation feedback - Electrical protection fault - See causes Pump - No water flow - See causes 1-PH HEE BOX EN-22... -
Page 23: Monitoring
(Rs485, pCO Web) or gateways (devices able to interpret various communication protocols) must be installed. NOTE: If using a communication bus, the routing and processing of the available data are outside CIAT's scope of supply. They must be provided by the installer, and require the involvement of an integrator. 7.1 CMS Various communication standards can be used to connect with a CMS monitoring system. - Page 24 - An asynchronous half duplex RS485 serial card (code: PCOS004850) in RTU mode, connected to each pCO 3 controller. - A standard RS485/USB converter for connection to a PC (not supplied by CIAT). The converter can be connected to any network RS485 card.
- Page 25 Configuring communication on the pCO3: Protocol: CAREL Speed: 19200 During normal operation, with the cable connected and the IP correctly set, the LED on the left is green and flashing and the LED on the right is green and constant. EN-25 1-PH HEE BOX...
- Page 26 Click “Go to Administrator Area” User name: admin Password: fadmin Click Configuration then pCO Com. In Protocol: Modbus Extended OR BACNET IP Baud rate: 19200 Then the button: Submit The speed (baud rate) must be identical in the communication menu 1-PH HEE BOX EN-26...
- Page 27 EN-27 1-PH HEE BOX...
- Page 28 Corporation with a capital of €26,728,480 This document is not legally binding. Bourg-en-Bresse Register of Trade and Companies As part of our continuous drive to improve our products, CIAT reserves no. B 545.620.114 the right to make any technical modifications without prior notice.
