- Page 1 TMX160HD HD encoder - DVB-T/C out USER MANUAL VERSION 1.0...
- Page 2 TMX160HD USER MANUAL 1 - Safety considerations 1.1 CONNECTING TO THE MAINS SUPPLY This product has to be connected to the mains supply. If there is the slightest doubt concerning the type of connection available on the installation, please contact your supplier of electricity. Before car- rying out maintenance operation or modifi...

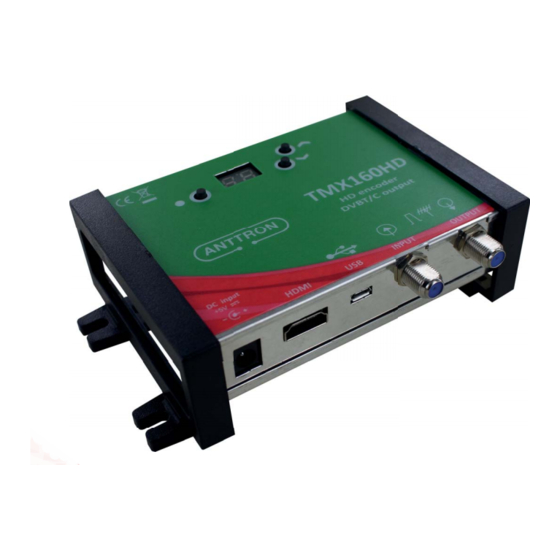

- Page 3 TMX160HD USER MANUAL 3 - Description of the different elements Power supply input (5V/2A) USB input (for programming the TMX160HD by PC) RF input RF output HDMI input Alphanumeric display SELECT button (UP) button (DOWN) button 4 - Installation and quick menu 4.1 - Installation...
- Page 4 The selected values are automatically saved in the memory of the TMX160HD. Once these settings made, the display on the TMX160HD will return to its standby state. The dis- play shows one or two dots. One dot to indicate that power is applied to the unit. The second dot to the right indicating that a HDMI source is connected to the unit.
